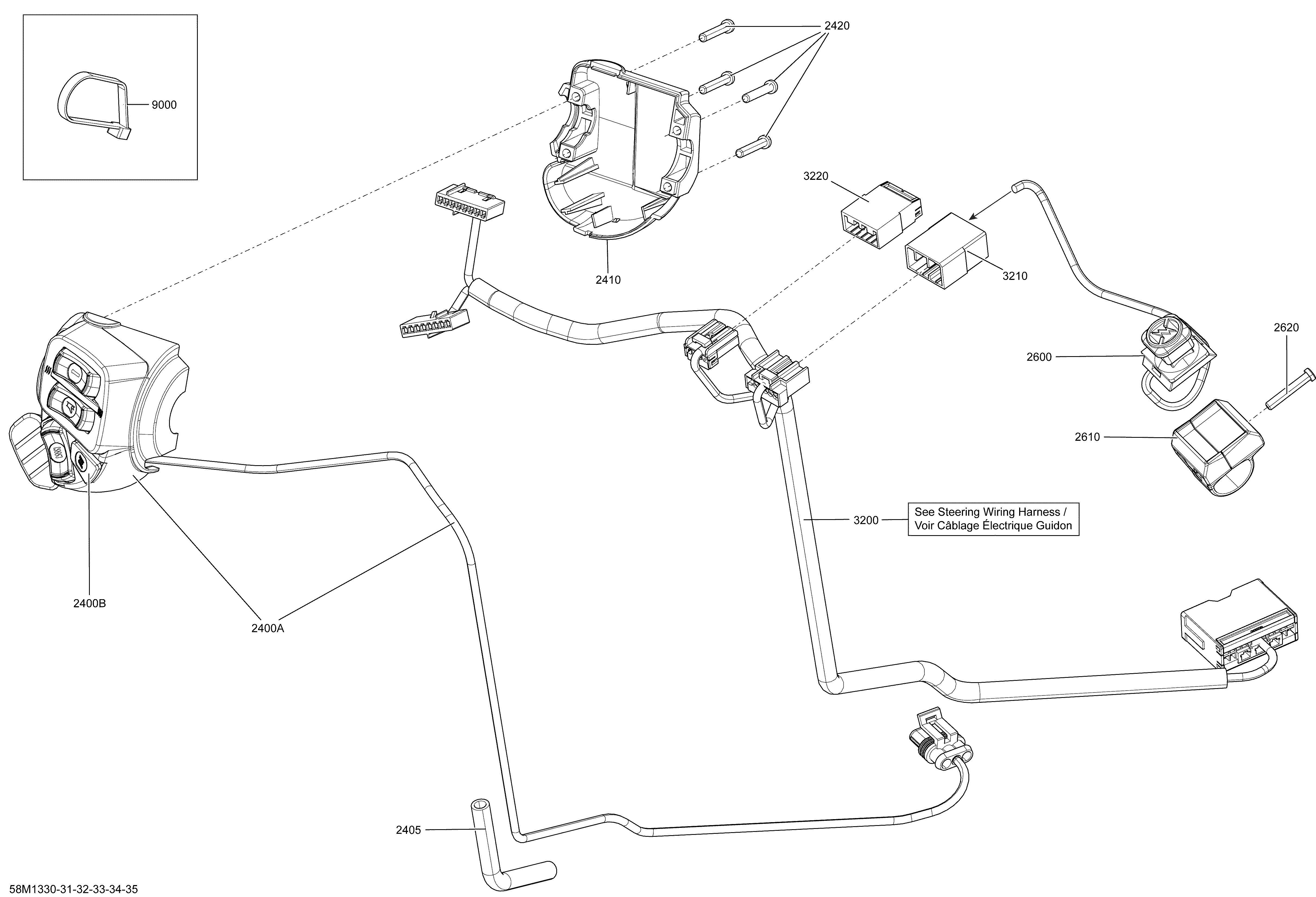

10- Electrical Accessories, Steering для BRP Ski-Doo TUNDRA SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
2400a515177508 LH Housing Switch. Includes 2400A to 2400BLH Housing Switch. Includes 2400A to 2400B
-
2400b515176088 Start/RER ButtonStart/RER Button
-
2405515175442 Tubing 6 mmTubing 6 mm
-
2410515175926 Housing Switch PlateHousing Switch Plate
-
2420250000263 Torx Screw #8-18Torx Screw #8-18
-
2600515177362 Kill SwitchKill Switch
-
2610515176825 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3200515176867 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
3210515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
3220515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
