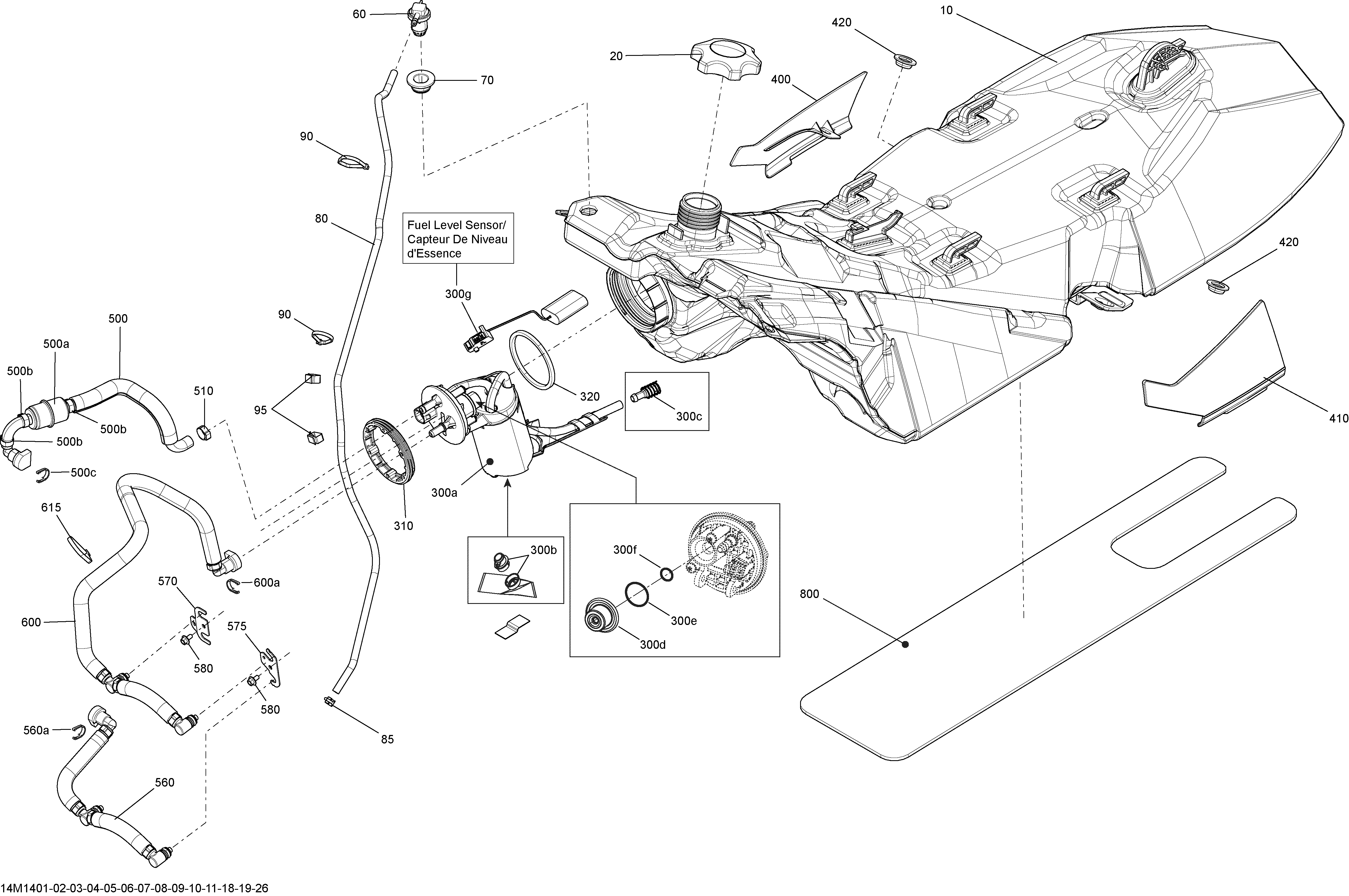

02- Fuel System для BRP Ski-Doo GSX LE 600HOE XS - 2014
-
№АртикулНазвание
-
10513033667 Fuel TankFuel Tank
-
20513033722 Fuel Tank Cap. OCT(91)Fuel Tank Cap. OCT(91)
-
20513033723 Fuel Tank Cap. OCT(95)Fuel Tank Cap. OCT(95)
-
60513033188 Check ValveCheck Valve
-
70513033596 GrommetGrommet
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
85414554800 Spring ClampSpring Clamp
-
310513033180 RingRing
-
300a513033738 Fuel Pump Ass'yFuel Pump Ass'y
-
300b415129451 Fuel FilterFuel Filter
-
300c414872100 Fuel FilterFuel Filter
-
300d415129821 RegulatorRegulator
-
300e415129822 O-RingO-Ring
-
300f415129823 O-RingO-Ring
-
300g415129671 Fuel Level SensorFuel Level Sensor
-
320513033334 GasketGasket
-
400513033418 RH CapRH Cap
-
410513033419 LH CapLH Cap
-
420513033326 Shoulder BushingShoulder Bushing
-
500513033715 Fuel Hose Ass'yFuel Hose Ass'y
-
500a513033719 FilterFilter
-
500b293650125 Oetiker ClampOetiker Clamp
-
500c513033135 Locking ClipLocking Clip
-
510293650053 Crimp ClampCrimp Clamp
-
560513033594 Hose Ass'yHose Ass'y
-
560a513033135 Locking ClipLocking Clip
-
570513033542 BracketBracket
-
575513033593 BracketBracket
-
580207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
600513033648 Fuel Hose Ass'yFuel Hose Ass'y
-
600a513033135 Locking ClipLocking Clip
-
800513033588 Insulating FoamInsulating Foam
