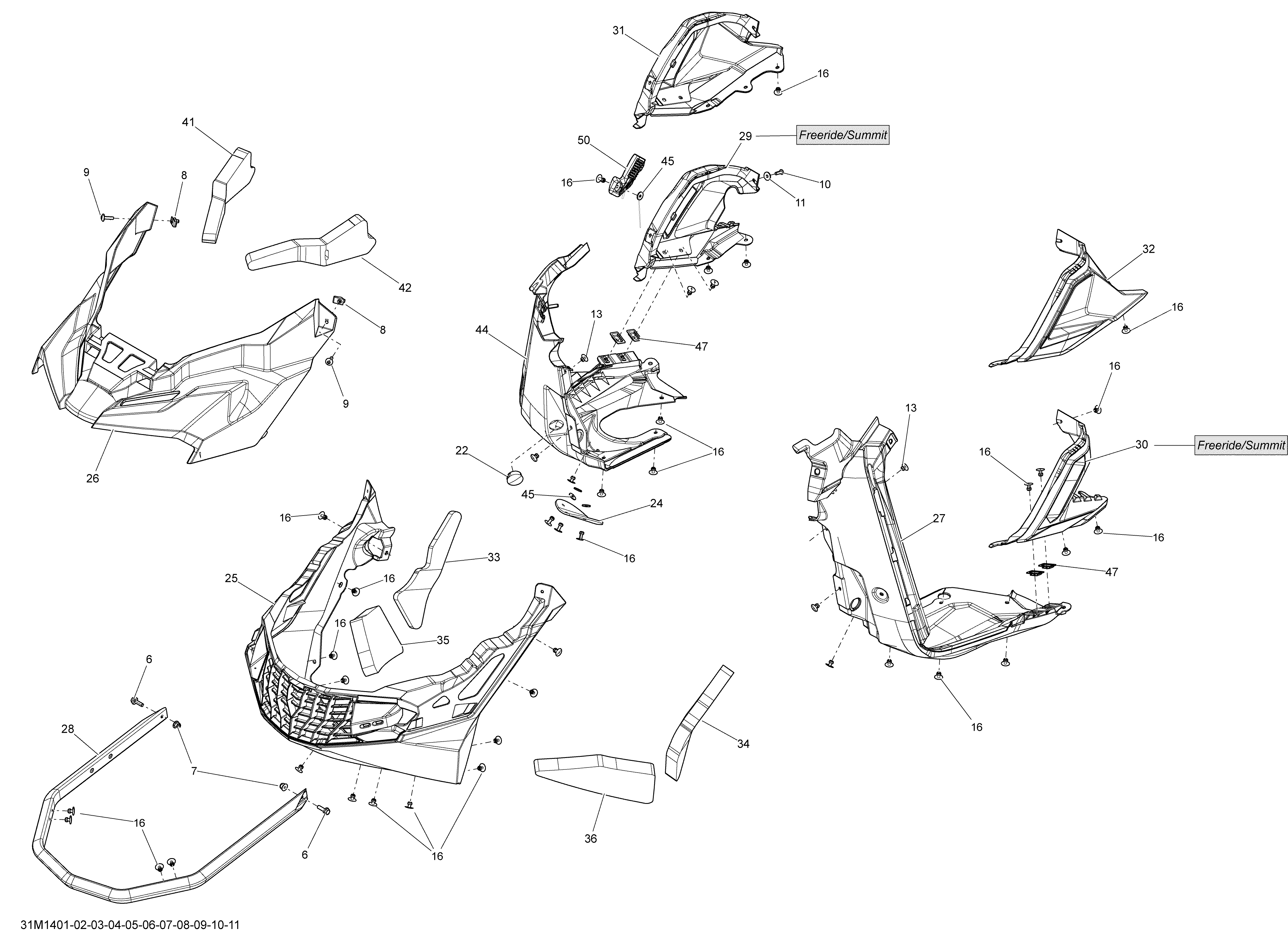

09- Bottom Pan для BRP Ski-Doo GSX LE 600HOE XS - 2014

№

Артикул

Название
6

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
7

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
8

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8

850 ₽
9

250000587 Torx Screw M5 X 26

Torx Screw M5 X 26

1 540 ₽
10

250000652 Socket Screw M5 X 16

Socket Screw M5 X 16

360 ₽
11

250200025 Washer M5

Washer M5

270 ₽
13

293150103 Black Pop Rivet 3/16''

Black Pop Rivet 3/16''

210 ₽
16

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''

240 ₽
22

414916600 Nylon Cap

Nylon Cap

1 590 ₽
24

502006935 Snow Deflector

Snow Deflector

4 430 ₽
25

502007172 Deep Black Front Bottom Pan

Deep Black Front Bottom Pan

53 600 ₽
26

502007173 Deep Black Bottom Pan Cap

Deep Black Bottom Pan Cap

22 930 ₽
27

502007175 Deep Black LH Bottom Pan

Deep Black LH Bottom Pan

7 360 ₽
28

502007176 Black Front Bumper

Black Front Bumper

8 480 ₽
31

502007297 Deep Black RH Side Bottom Pan Panel

Deep Black RH Side Bottom Pan Panel

7 620 ₽
32

502007298 Deep Black LH Side Bottom Pan Panel

Deep Black LH Side Bottom Pan Panel

7 620 ₽
33

502007243 RH Bottom Pan Upper Foam

RH Bottom Pan Upper Foam

3 780 ₽
34

502007244 LH Bottom Pan Upper Foam

LH Bottom Pan Upper Foam

3 780 ₽
35

502007245 RH Bottom Pan Lower Foam

RH Bottom Pan Lower Foam

4 590 ₽
36

502007246 LH Bottom Pan Lower Foam

LH Bottom Pan Lower Foam

4 590 ₽
41

502007263 RH Bottom Pan Cap Foam

RH Bottom Pan Cap Foam

4 590 ₽
42

502007264 LH Bottom Pan Cap Foam

LH Bottom Pan Cap Foam

4 590 ₽
44

502007340 Deep Black RH Bottom Pan

Deep Black RH Bottom Pan

30 660 ₽
45

517124300 Washer

Washer

70 ₽
47

517305109 Rivet Plate

Rivet Plate

1 540 ₽
50

517305280 Stopper Bumper

Stopper Bumper

1 430 ₽
