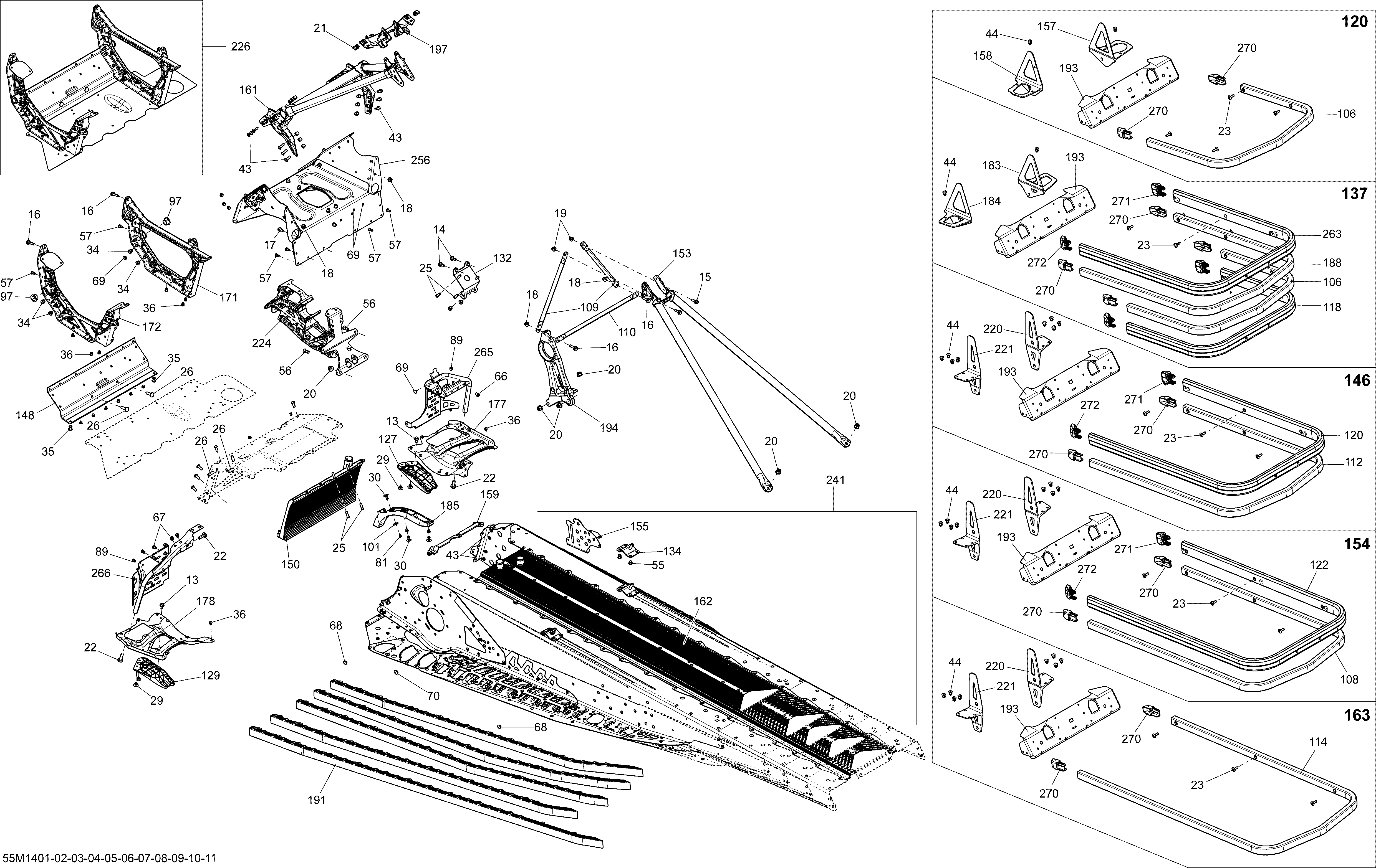

09- Frame And Components для BRP Ski-Doo GSX LE 600HOE XS - 2014
-
№АртикулНазвание
-
13207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
14207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
17210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
23250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
25250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
26250300038 Clinch StudClinch Stud
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
34293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
35293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
36293150144 Stavex RivetStavex Rivet
-
43293150146 Henrob RivetHenrob Rivet
-
55293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
56293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
57293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
66293450268 InsertInsert
-
67293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
68293730047 Black Dart 8 mmBlack Dart 8 mm
-
69293730053 Black Dart 5 mmBlack Dart 5 mm
-
70293730060 Black Dart 10 mmBlack Dart 10 mm
-
89390909200 Avex RivetAvex Rivet
-
97505073317 Leg CushionLeg Cushion
-
101517124300 WasherWasher
-
106518325481 Black Rear BumperBlack Rear Bumper
-
109518325114 Upper Column SupportUpper Column Support
-
110518325115 Center Column SupportCenter Column Support
-
127518325782 RH DeflectorRH Deflector
-
129518325783 LH DeflectorLH Deflector
-
132518325943 MAG Engine SupportMAG Engine Support
-
134518325973 RH Rear BaseRH Rear Base
-
134518325974 LH Rear BaseLH Rear Base
-
148518326198 Front MemberFront Member
-
150518326485 Front RadiatorFront Radiator
-
153518326559 Rear MemberRear Member
-
157518326654 RH Slide Suspension BracketRH Slide Suspension Bracket
-
158518326655 LH Slide Suspension BracketLH Slide Suspension Bracket
-
159518326656 SealSeal
-
161518327565 Front MemberFront Member
-
162518327580 Rear Radiator 120''Rear Radiator 120''
-
171518326795 RH MemberRH Member
-
172518326796 LH MemberLH Member
-
177518326937 RH ReinforcementRH Reinforcement
-
178518326938 LH ReinforcementLH Reinforcement
-
185518326973 Front ProtectorFront Protector
-
191518326942 RH RollerRH Roller
-
191518326943 LH RollerLH Roller
-
193518327105 Rear CapRear Cap
-
194518327133 Driven Pulley SupportDriven Pulley Support
-
197518327145 Sub A SupportSub A Support
-
224518327475 Front Suspension SupportFront Suspension Support
-
226518327567 Front E ModuleFront E Module
-
241415129830 Black Frame 120 XSBlack Frame 120 XS
-
256518327721 ''S'' Module''S'' Module
-
265518327841 RH StirupRH Stirup
-
266518327937 LH StirupLH Stirup
-
270520000840 Black CapBlack Cap
