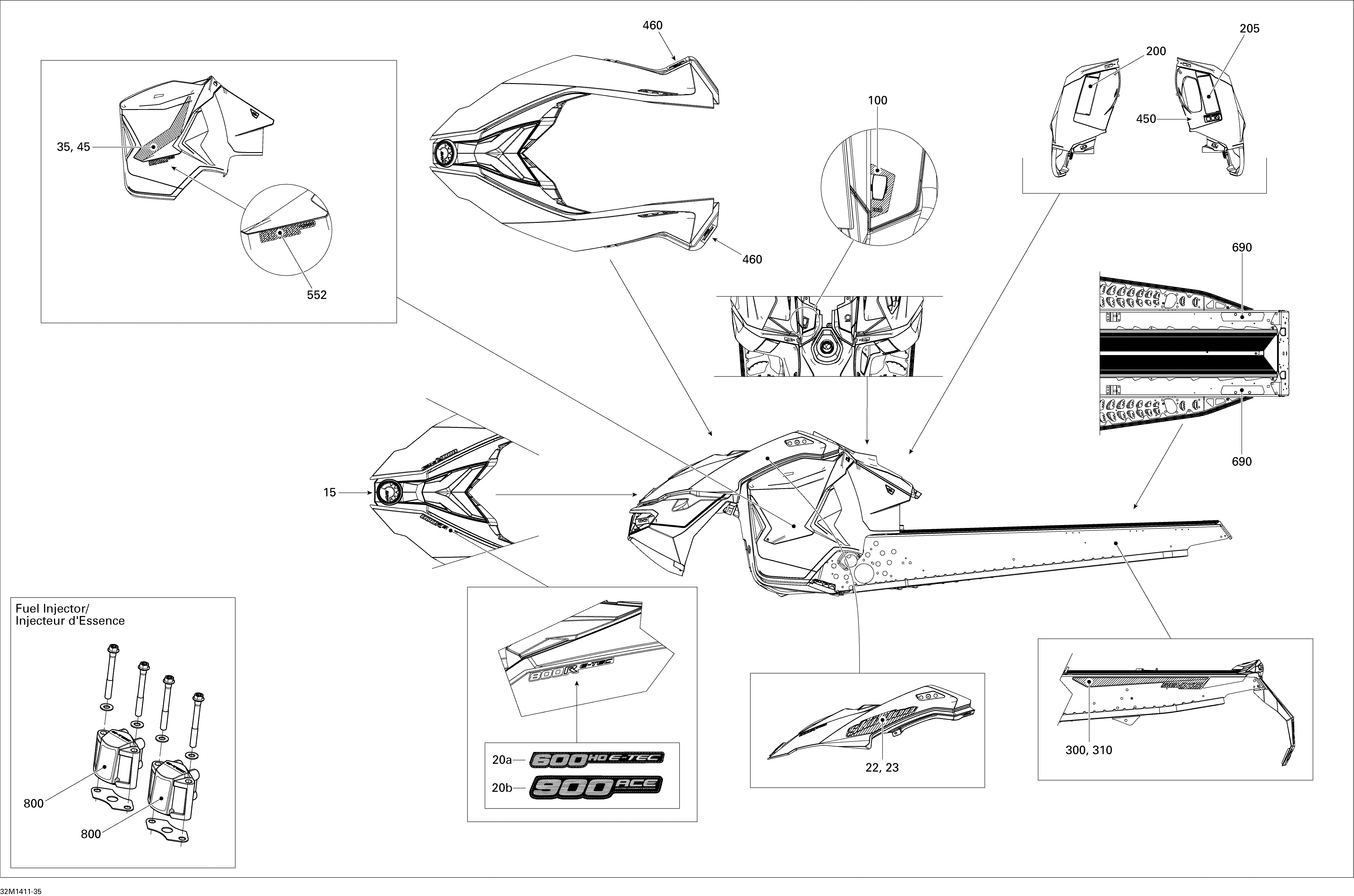

09- Decals для BRP Ski-Doo GSX LE 600HOE XS - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20a516006152 Hood Decal, 600 HO E-TECHood Decal, 600 HO E-TEC
-
22516006215 RH Hood Decal, Ski-DooRH Hood Decal, Ski-Doo
-
23516006214 LH Hood Decal, Ski-DooLH Hood Decal, Ski-Doo
-
35516006040 RH Side Decal, GSXRH Side Decal, GSX
-
45516006039 LH Side Decal, GSXLH Side Decal, GSX
-
200516005055 Warning Decal, SecurityWarning Decal, Security
-
205516005056 Warning Decal, SecurityWarning Decal, Security
-
300516006249 RH Frame Decal, REV XSRH Frame Decal, REV XS
-
310516006248 LH Frame Decal, REV XSLH Frame Decal, REV XS
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516005984 Decal, Rotax PowerDecal, Rotax Power
-
690516005172 Frame Top DecalFrame Top Decal
-
800516005583 Warning Decal, InjectorsWarning Decal, Injectors
