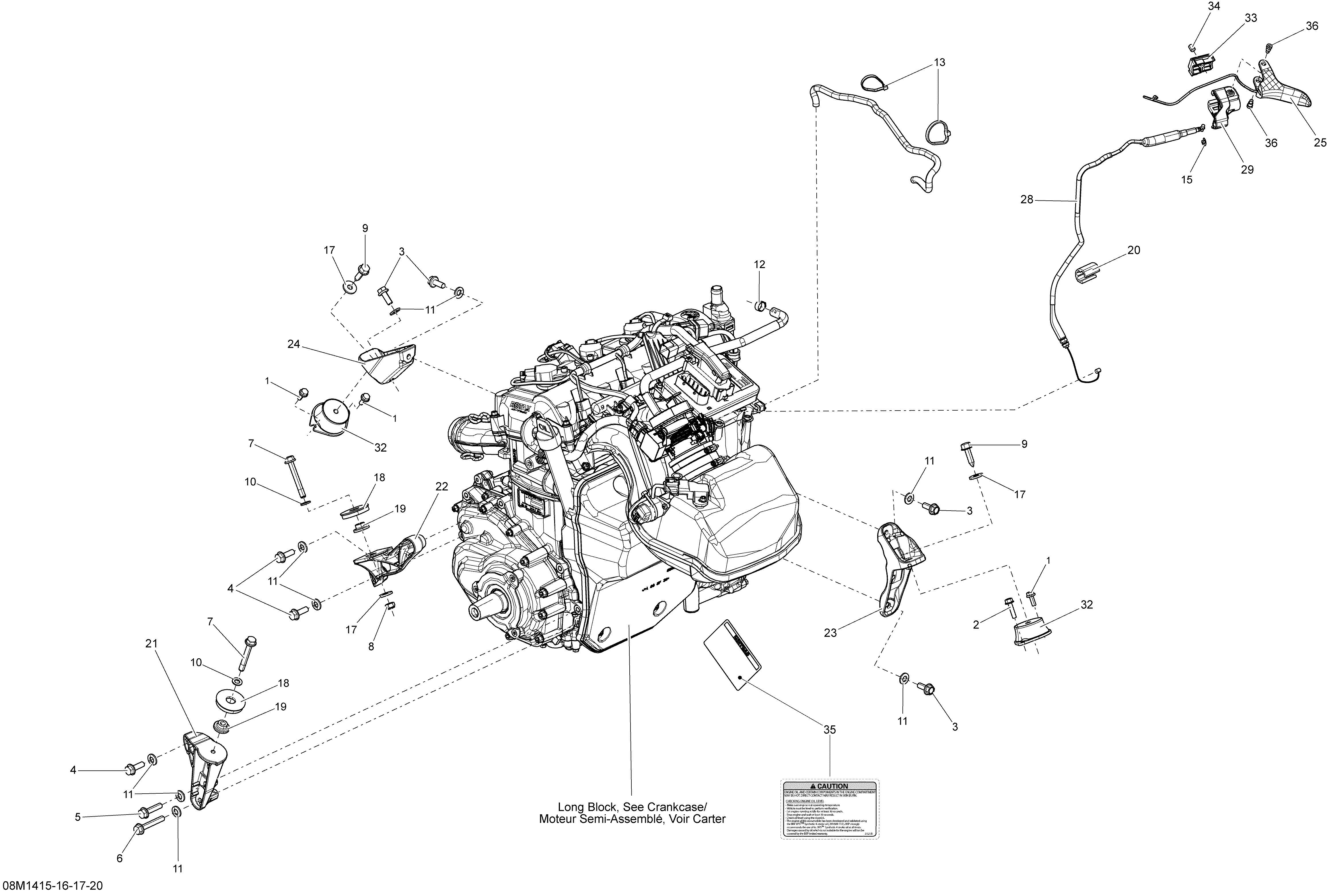

01- Engine And Engine Support _08M1415 для BRP Ski-Doo MXZ X 12004TEC XR - 2014
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
6207585086 Hex. Flanged Screw M8 X 50, Scotch GripHex. Flanged Screw M8 X 50, Scotch Grip
-
7207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
8232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
9250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
10250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
11250200146 Conical Spring Washer M8Conical Spring Washer M8
-
12293650046 Oetiker ClampOetiker Clamp
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15414274500 CirclipCirclip
-
17503183200 Washer, YellowWasher, Yellow
-
18512060244 StopperStopper
-
19512060285 SpacerSpacer
-
20512060313 ProtectorProtector
-
21512060591 Rear Support, PTORear Support, PTO
-
22512060593 Front Support, PTOFront Support, PTO
-
23512060594 Rear Support, MAGRear Support, MAG
-
24512060596 Front Support, MAGFront Support, MAG
-
25512060618 Throttle HandleThrottle Handle
-
28512060673 Throttle CableThrottle Cable
-
29512060860 Lower HousingLower Housing
-
32512060729 Rubber MountRubber Mount
-
33512060859 Upper Housing. Includes 33 to 34Upper Housing. Includes 33 to 34
-
34414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
35516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
-
36732601143 Flanged ScrewFlanged Screw
