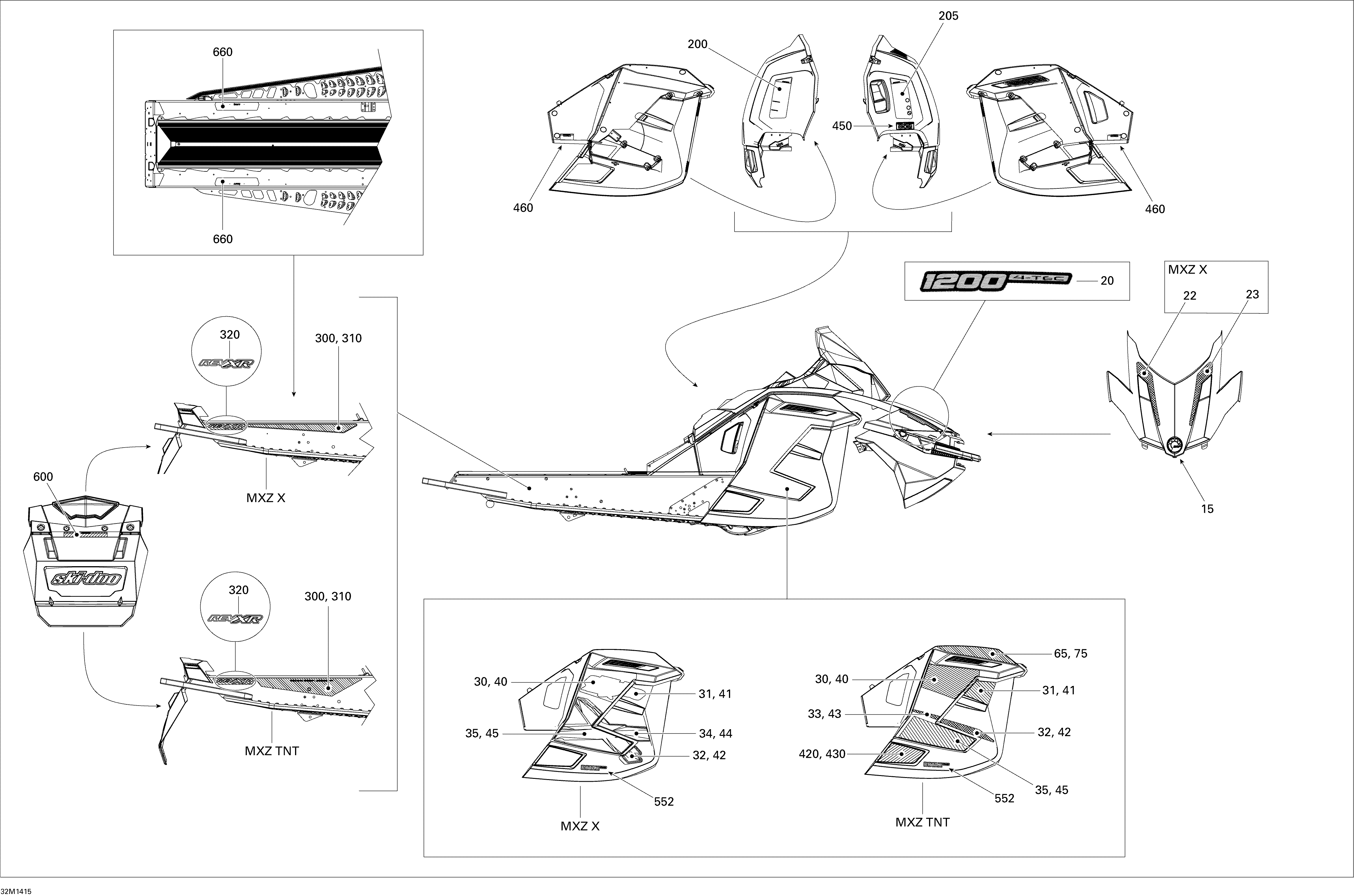

09- Decals X_32M1415 для BRP Ski-Doo MXZ X 12004TEC XR - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516006088 Hood Decal, 1200 4-TECHood Decal, 1200 4-TEC
-
22516006099 RH Hood DecalRH Hood Decal
-
23516006098 LH Hood DecalLH Hood Decal
-
30516006101 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
32516006093 RH Lower Side DecalRH Lower Side Decal
-
34516006095 RH Upper Side DecalRH Upper Side Decal
-
35516006097 RH Side DecalRH Side Decal
-
40516006100 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
42516006092 LH Lower Side DecalLH Lower Side Decal
-
44516006094 LH Upper Side DecalLH Upper Side Decal
-
45516006096 LH Side DecalLH Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516006263 RH Frame DecalRH Frame Decal
-
310516006262 LH Frame DecalLH Frame Decal
-
320516006273 Decal, REV XRDecal, REV XR
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516005984 Decal, Rotax PowerDecal, Rotax Power
-
600516006117 Warning Decal, TrackWarning Decal, Track
-
660516005154 Frame Top DecalFrame Top Decal
