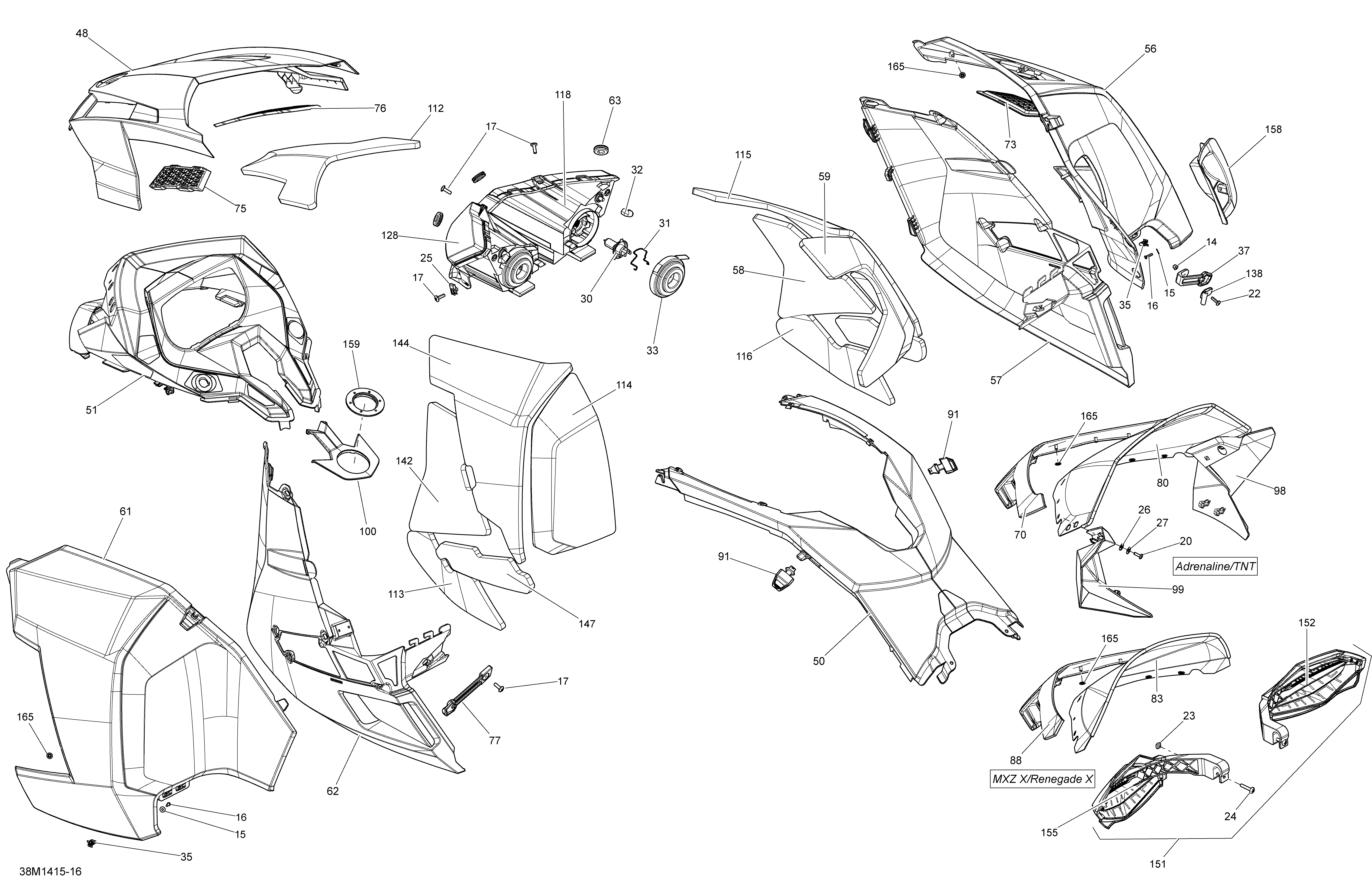

09- Hood, Windshield And Console _38M1415 для BRP Ski-Doo MXZ X 12004TEC XR - 2014

№

Артикул

Название
14

233251414 Hex. Flanged Elastic Nut M5

Hex. Flanged Elastic Nut M5

100 ₽
15

234042600 Flat Washer 4 mm, Stainless

Flat Washer 4 mm, Stainless

390 ₽
16

241141660 Flanged Hex. Screw K40 X 16

Flanged Hex. Screw K40 X 16

540 ₽
17

250000128 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20

0 ₽
20

250000146 Truss Head Torx Screw K50 X 16

Truss Head Torx Screw K50 X 16

260 ₽
22

250000465 Torx Screw M5 X 20

Torx Screw M5 X 20

850 ₽
23

250000498 Square Nut M6

Square Nut M6

1 890 ₽
24

250000501 Phillips Screw M6 X 35

Phillips Screw M6 X 35

1 890 ₽
25

250100113 Panel Nut, M6 X 1.0

Panel Nut, M6 X 1.0

280 ₽
26

250200024 Rubber Washer 5 mm

Rubber Washer 5 mm

810 ₽
27

250200025 Washer M5

Washer M5

270 ₽
30

515176274 Halogen Bulb, 60/55 W, 12 V

Halogen Bulb, 60/55 W, 12 V

8 050 ₽
32

515176498 Cap

Cap

1 040 ₽
33

515176499 Cover

Cover

1 860 ₽
35

517302785 Clip

Clip

420 ₽
37

517303612 RH Panel Latch

RH Panel Latch

3 260 ₽
48

517303739 Black Hood

Black Hood

81 900 ₽
50

517303741 Black Console

Black Console

70 700 ₽
51

517303742 Black Indicator Support. Model-MXZ X

Black Indicator Support. Model-MXZ X

7 190 ₽
51

517305179 Yellow Indicator Support. Model-TNT

Yellow Indicator Support. Model-TNT

8 780 ₽
56

517303748 Black RH Panel. Model-MXZ X

Black RH Panel. Model-MXZ X

95 200 ₽
56

517304067 Yellow RH Pannel. Model-TNT

Yellow RH Pannel. Model-TNT

20 190 ₽
57

517304373 Black RH Pannel Moulding

Black RH Pannel Moulding

29 400 ₽
58

517304894 Central Foam Panel RH

Central Foam Panel RH

2 340 ₽
59

517304895 Rear Panel Foam RH

Rear Panel Foam RH

2 340 ₽
61

517303753 Black LH Pannel. Model-MXZ X

Black LH Pannel. Model-MXZ X

80 150 ₽
61

517304069 Yellow LH Pannel. Model-TNT

Yellow LH Pannel. Model-TNT

20 190 ₽
62

517304362 Black LH Pannel Moulding

Black LH Pannel Moulding

29 400 ₽
63

517303756 Grommet

Grommet

3 430 ₽
70

860200229 Medium Windshield Support

Medium Windshield Support

8 820 ₽
73

517303801 Panel Grill

Panel Grill

2 100 ₽
75

517303804 LH Hood Grill

LH Hood Grill

9 910 ₽
76

517303805 RH Hood Grill

RH Hood Grill

9 910 ₽
77

517303808 LH Panel Latch

LH Panel Latch

3 750 ₽
80

517303887 Medium Windshield (395). Model-TNT

Medium Windshield (395). Model-TNT

12 080 ₽
83

517303888 Low Windshield (250). Model-MXZ X

Low Windshield (250). Model-MXZ X

54 600 ₽
88

860200228 Low Windshield Support

Low Windshield Support

5 020 ₽
91

517305000 Panel Latch

Panel Latch

4 760 ₽
98

517304024 RH Console Air Deflector

RH Console Air Deflector

9 910 ₽
99

517304025 LH Console Air Deflector

LH Console Air Deflector

9 910 ₽
100

517304027 Deep Black Cap Console

Deep Black Cap Console

4 310 ₽
112

517304892 Hood Foam

Hood Foam

2 340 ₽
113

517304900 LH Lower Panel Foam

LH Lower Panel Foam

1 330 ₽
114

517304904 LH Rear Panel Foam

LH Rear Panel Foam

2 340 ₽
115

517304907 RH Upper Panel Foam

RH Upper Panel Foam

2 590 ₽
116

517304906 RH Lower Panel Foam

RH Lower Panel Foam

1 330 ₽
118

517304194 RH Headlamp Ass'y

RH Headlamp Ass'y

44 030 ₽
128

517304195 LH Headlamp Ass'y

LH Headlamp Ass'y

32 710 ₽
138

517304221 Latch Support

Latch Support

560 ₽
142

517304898 LH Central Panel Foam

LH Central Panel Foam

2 260 ₽
144

517304903 LH Upper Panel Foam

LH Upper Panel Foam

2 340 ₽
147

517304896 Central Foam Panel LH

Central Foam Panel LH

1 440 ₽
151

860200712 Grey Wind Deflector Kit

Grey Wind Deflector Kit

7 300 ₽
152

517305039 Grey RH Wind Deflector

Grey RH Wind Deflector

4 690 ₽
155

517305040 Grey LH Wind Deflector

Grey LH Wind Deflector

4 520 ₽
158

517304500 Black RH Console

Black RH Console

9 280 ₽
159

517304518 Console Nut

Console Nut

4 590 ₽
165

732610072 Push Nut

Push Nut

1 270 ₽
