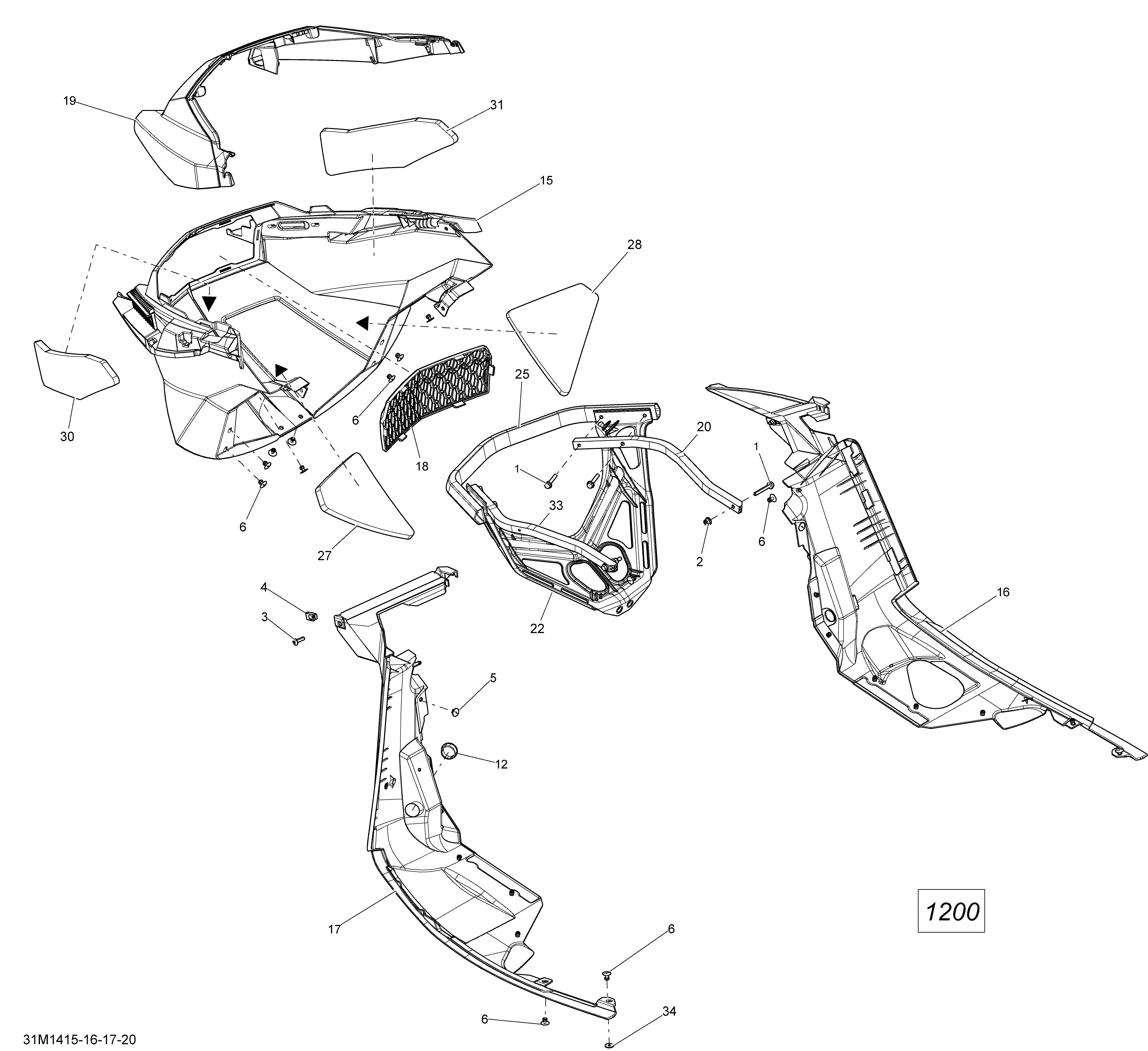

09- Bottom Pan _31M1415 для BRP Ski-Doo MXZ X 12004TEC XR - 2014
-
№АртикулНазвание
-
1207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12414916600 Nylon CapNylon Cap
-
15502006873 Front Bottom PanFront Bottom Pan
-
16502006877 RH Bottom PanRH Bottom Pan
-
17502006878 LH Bottom PanLH Bottom Pan
-
18502006887 Botton Pan GrillBotton Pan Grill
-
19502006898 Bottom Pan Cap, BlackBottom Pan Cap, Black
-
19502007262 Bottom Pan Cap, WhiteBottom Pan Cap, White
-
20502006926 RH SupportRH Support
-
22502006938 BracketBracket
-
25502006939 BumperBumper
-
27502007317 LH Middle Hull FoamLH Middle Hull Foam
-
28502007316 RH Middle Hull FoamRH Middle Hull Foam
-
30502007218 LH Upper Hull FoamLH Upper Hull Foam
-
31502007216 RH Upper Hull FoamRH Upper Hull Foam
-
33502007357 LH SupportLH Support
-
34517124300 WasherWasher
