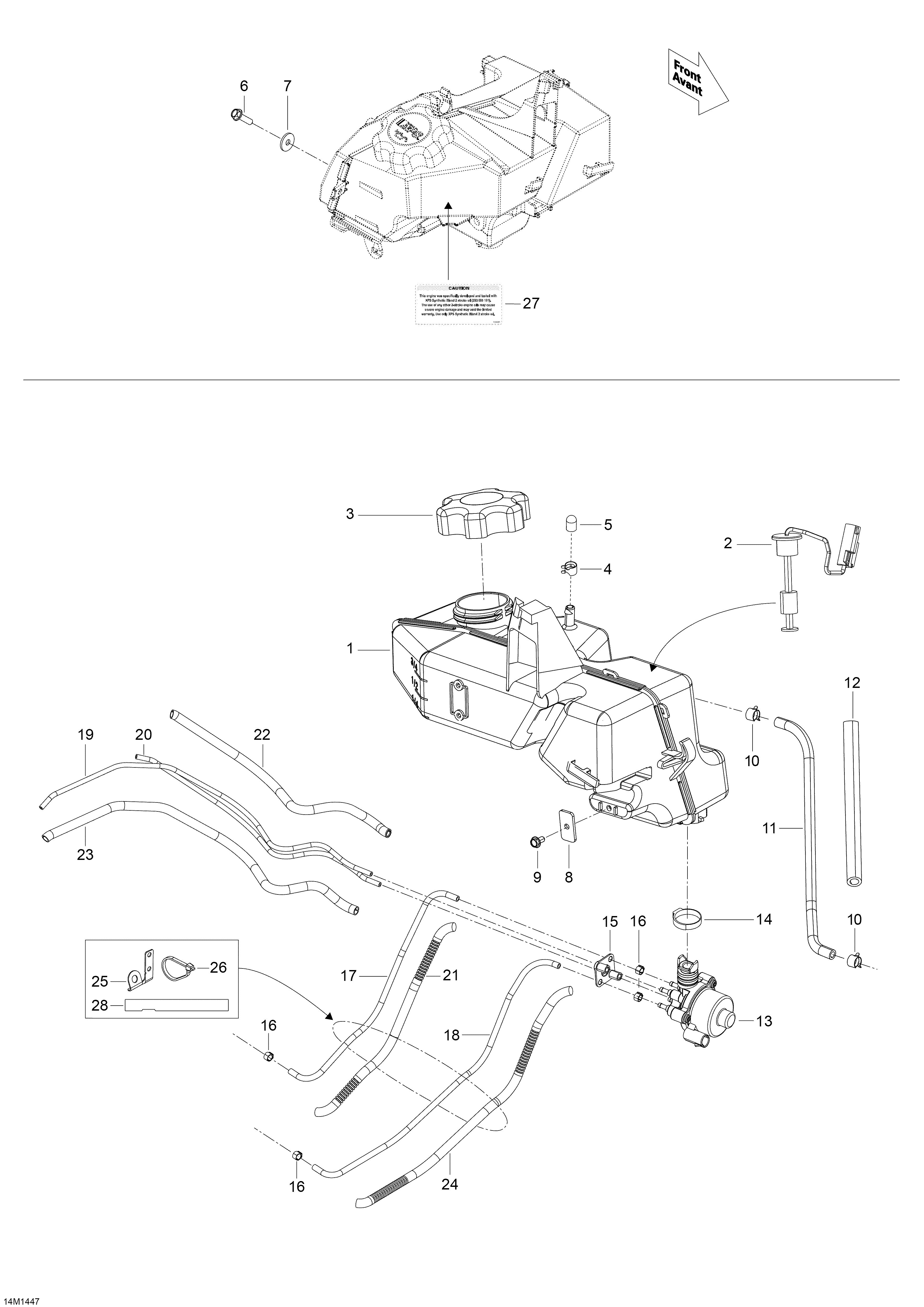

02- Oil System для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2014
-
№АртикулНазвание
-
1519000251 Oil TankOil Tank
-
2515176978 Level SensorLevel Sensor
-
3519000273 CapCap
-
4293650043 Oetiker Gear ClampOetiker Gear Clamp
-
5519000216 CapCap
-
6250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
7224061201 Flat WasherFlat Washer
-
8519000179 BracketBracket
-
9241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
10414554800 Spring ClampSpring Clamp
-
11415080200 HoseHose
-
12415079900 Tubing 10 mmTubing 10 mm
-
13519000281 Oil PumpOil Pump
-
14293650099 Crimp ClampCrimp Clamp
-
15519000271 BracketBracket
-
16293650100 Oetiker ClampOetiker Clamp
-
17519000182 Hose 3.5 mmHose 3.5 mm
-
18519000182 Hose 3.5 mmHose 3.5 mm
-
19519000184 Hose 2.5 mmHose 2.5 mm
-
20519000184 Hose 2.5 mmHose 2.5 mm
-
21515175442 Tubing 6 mmTubing 6 mm
-
22515175442 Tubing 6 mmTubing 6 mm
-
23515175442 Tubing 6 mmTubing 6 mm
-
24515175442 Tubing 6 mmTubing 6 mm
-
25519000245 BracketBracket
-
26293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
27516005528 Notice Decal, OilNotice Decal, Oil
-
28516004648 Protection DecalProtection Decal
