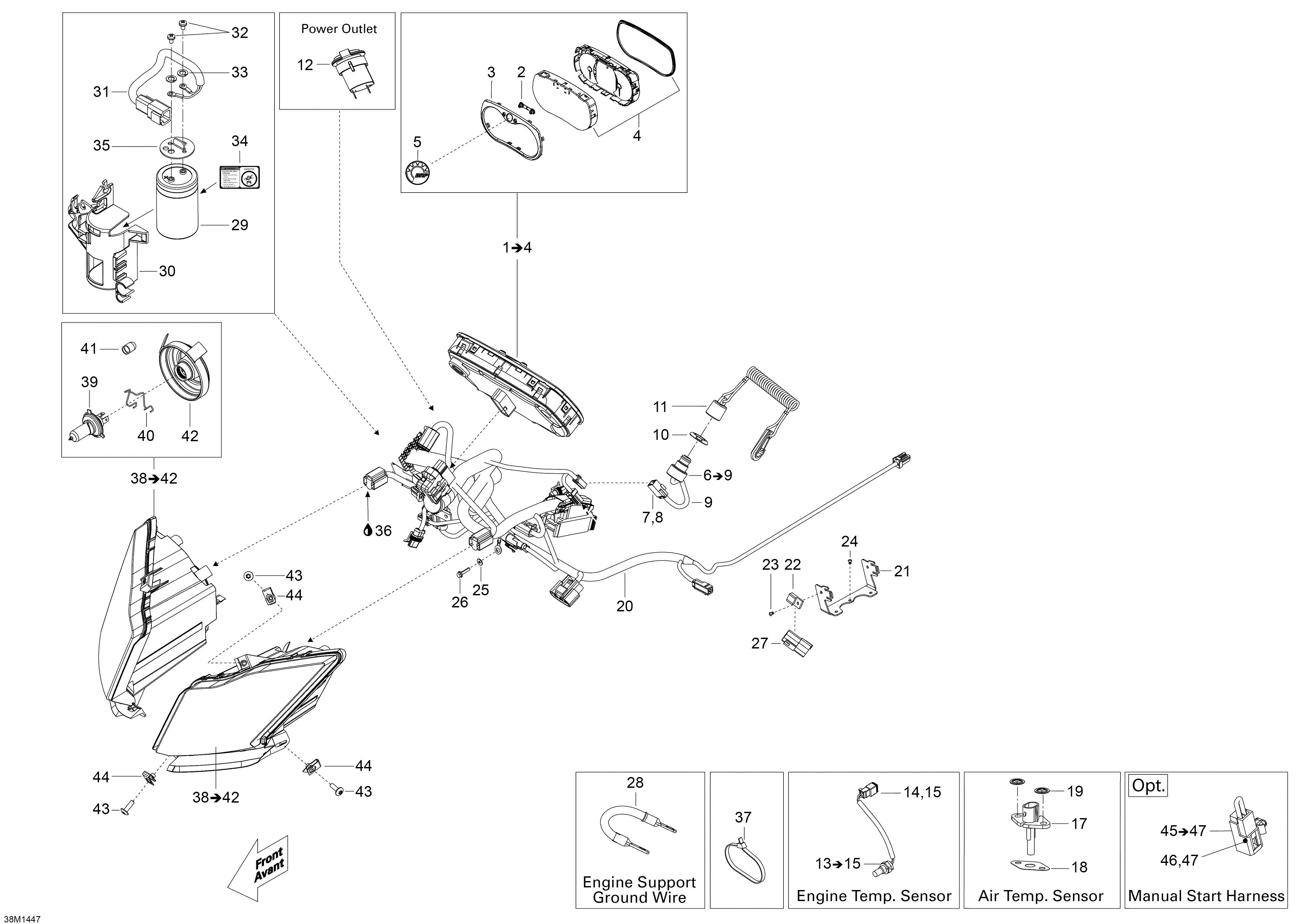

10- Electrical System для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2014
-
№АртикулНазвание
-
1515177527 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515177057 DESS CapDESS Cap
-
12710001248 Outlet DCOutlet DC
-
13515177471 Temperature Sensor. Includes 13 To 15Temperature Sensor. Includes 13 To 15
-
14515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
15278000632 Female TerminalFemale Terminal
-
17515176366 Air Temperature SensorAir Temperature Sensor
-
18508000769 SealSeal
-
19389804300 Push NutPush Nut
-
20515177502 Main HarnessMain Harness
-
21515177073 Fusebox SupportFusebox Support
-
22270000141 ClipClip
-
23293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25234141601 Lock Washer 4 mmLock Washer 4 mm
-
26250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
27515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
28515176861 Ground WireGround Wire
-
29515177272 CapacitorCapacitor
-
30515176607 Capacitor SupportCapacitor Support
-
31515176605 Capacitor HarnessCapacitor Harness
-
32250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
33250200026 Lock washerLock washer
-
34516005515 Capacitor Decal (English)Capacitor Decal (English)
-
35515177193 CapCap
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38517304194 RH Headlamp Ass'y. Includes 38 To 42RH Headlamp Ass'y. Includes 38 To 42
-
38517304195 LH Headlamp Ass'y. Includes 38 To 42LH Headlamp Ass'y. Includes 38 To 42
-
39515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
41515176498 CapCap
-
42515176499 CoverCover
-
43250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
44250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
45515176661 Manual Start Harness. Includes 45 To 47Manual Start Harness. Includes 45 To 47
-
46515175232 Male TerminalMale Terminal
-
47710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
