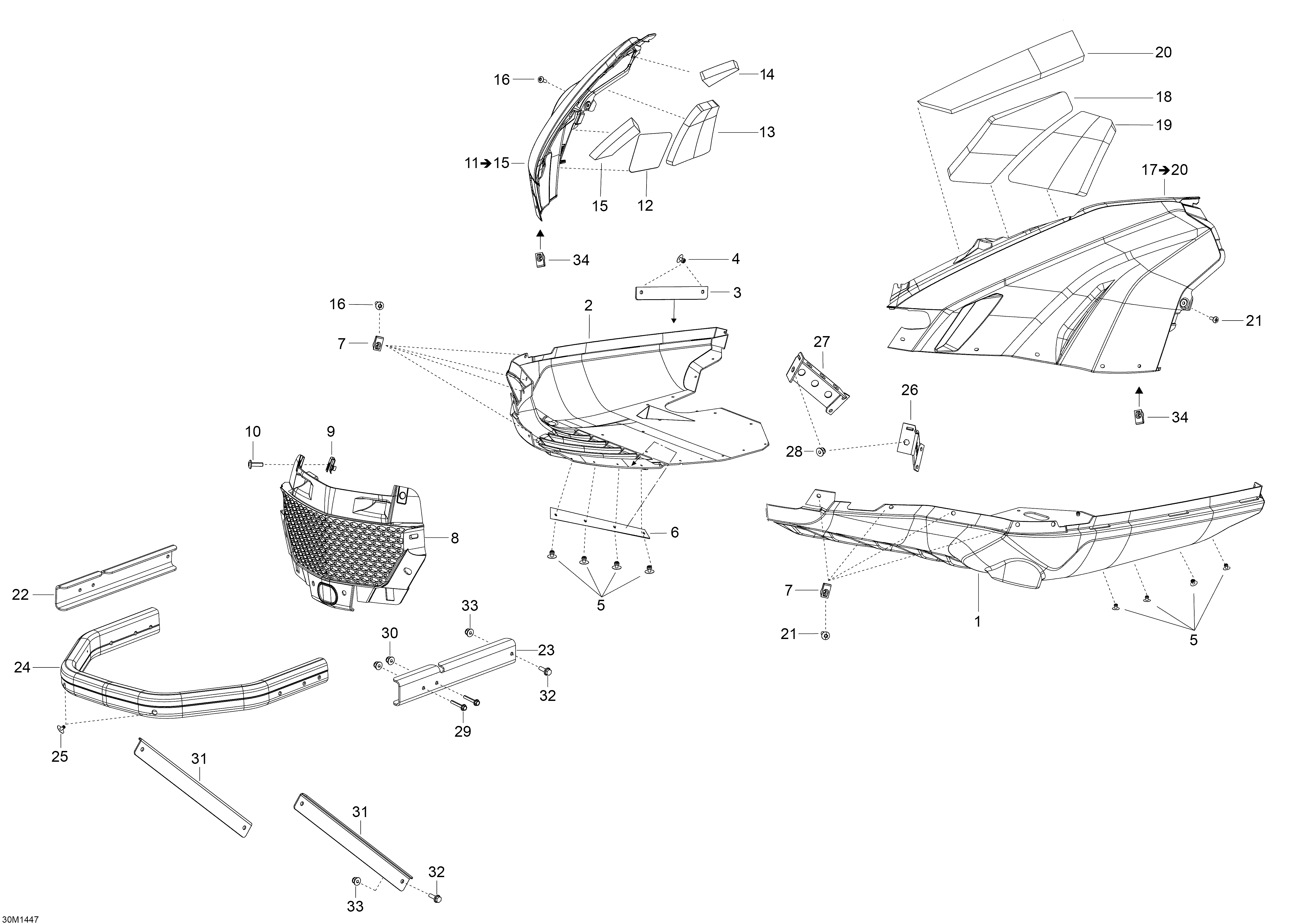

09- Bottom Pan для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2014
-
№АртикулНазвание
-
1502007046 Black Bottom-Pan Lower LH.Black Bottom-Pan Lower LH.
-
2502006917 Black Bottom-Pan Lower RH.Black Bottom-Pan Lower RH.
-
3502007255 Heat Isolation PlateHeat Isolation Plate
-
4M36005 RivetRivet
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6502007226 Support PlateSupport Plate
-
7250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8502007140 Front GrillFront Grill
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11502007292 Black Bottom Pan Ass'y RH. Includes 11 To 15Black Bottom Pan Ass'y RH. Includes 11 To 15
-
12502007133 InsulatorInsulator
-
13502007132 InsulatorInsulator
-
14502007008 InsulatorInsulator
-
15502007009 InsulatorInsulator
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
17502007294 Black Bottom Pan Ass'y LH. Includes 17 To 20Black Bottom Pan Ass'y LH. Includes 17 To 20
-
18502007088 InsulatorInsulator
-
19502007131 InsulatorInsulator
-
20502007185 InsulatorInsulator
-
21250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
22502007379 Bumper Support RHBumper Support RH
-
23502007380 Bumper Support LHBumper Support LH
-
24502007381 BumperBumper
-
25293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
26502007137 Bottom Pan Fastener LHBottom Pan Fastener LH
-
27502007138 Bottom Pan Fastener RHBottom Pan Fastener RH
-
28605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
29207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31502007382 Bumper Support SWTBumper Support SWT
-
32207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
