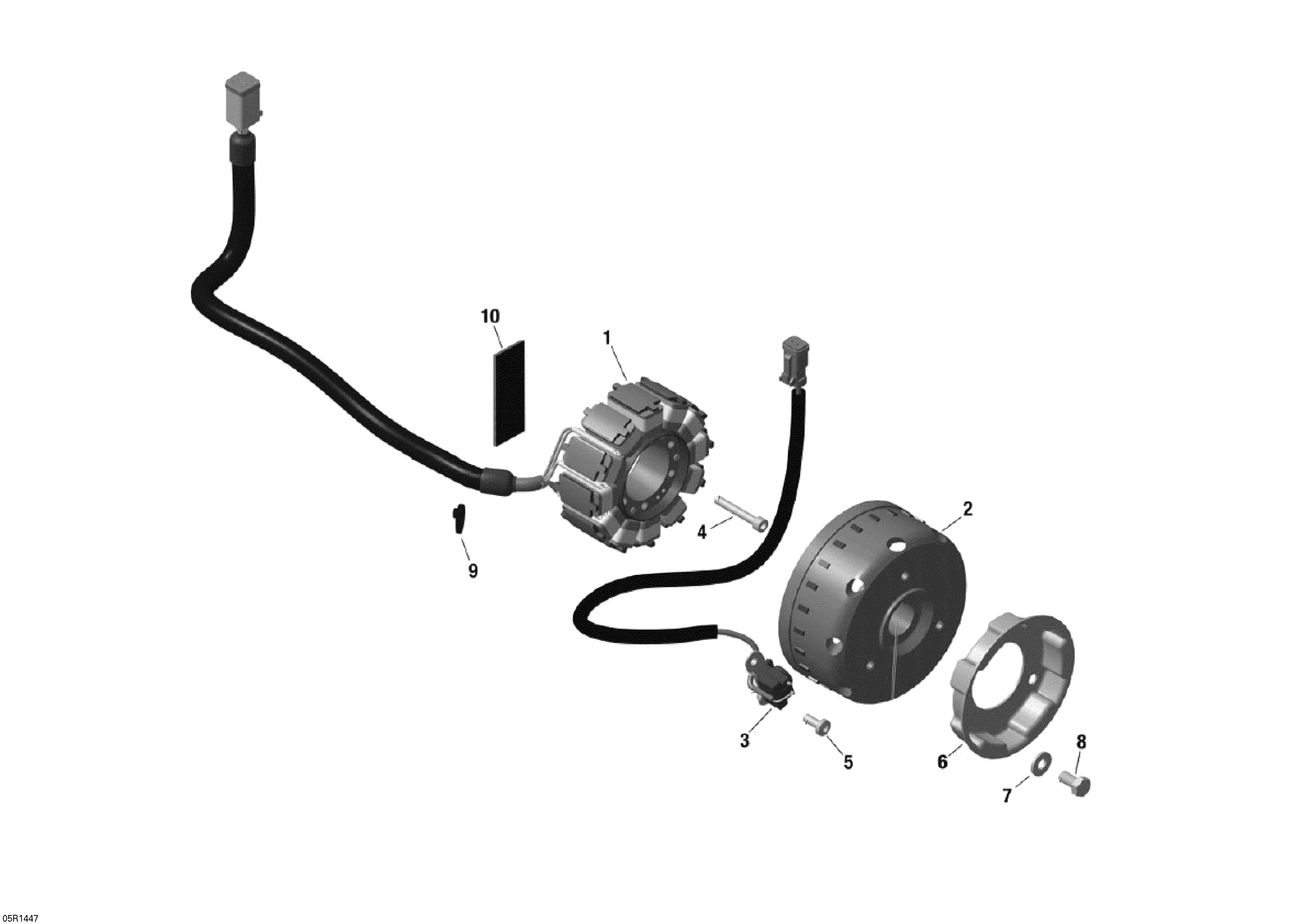

03- Magneto для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2014
-
№АртикулНазвание
-
1420665435 Stator PlateStator Plate
-
2420665447 FlywheelFlywheel
-
3410922969 Pick-Up Ass'yPick-Up Ass'y
-
4420241956 Allen Screw M6 X 40Allen Screw M6 X 40
-
5420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
6420852532 Starting Pulley. (Manual Start)Starting Pulley. (Manual Start)
-
7420827405 Flat Washer. (Manual Start)Flat Washer. (Manual Start)
-
8207181644 Hex. Screw M8 x 16. (Manual Start)Hex. Screw M8 x 16. (Manual Start)
-
9420866714 Tie RapTie Rap
-
10420201360 Adhesive Pad, 1.6 mm X 20 mm X 60 mmAdhesive Pad, 1.6 mm X 20 mm X 60 mm
