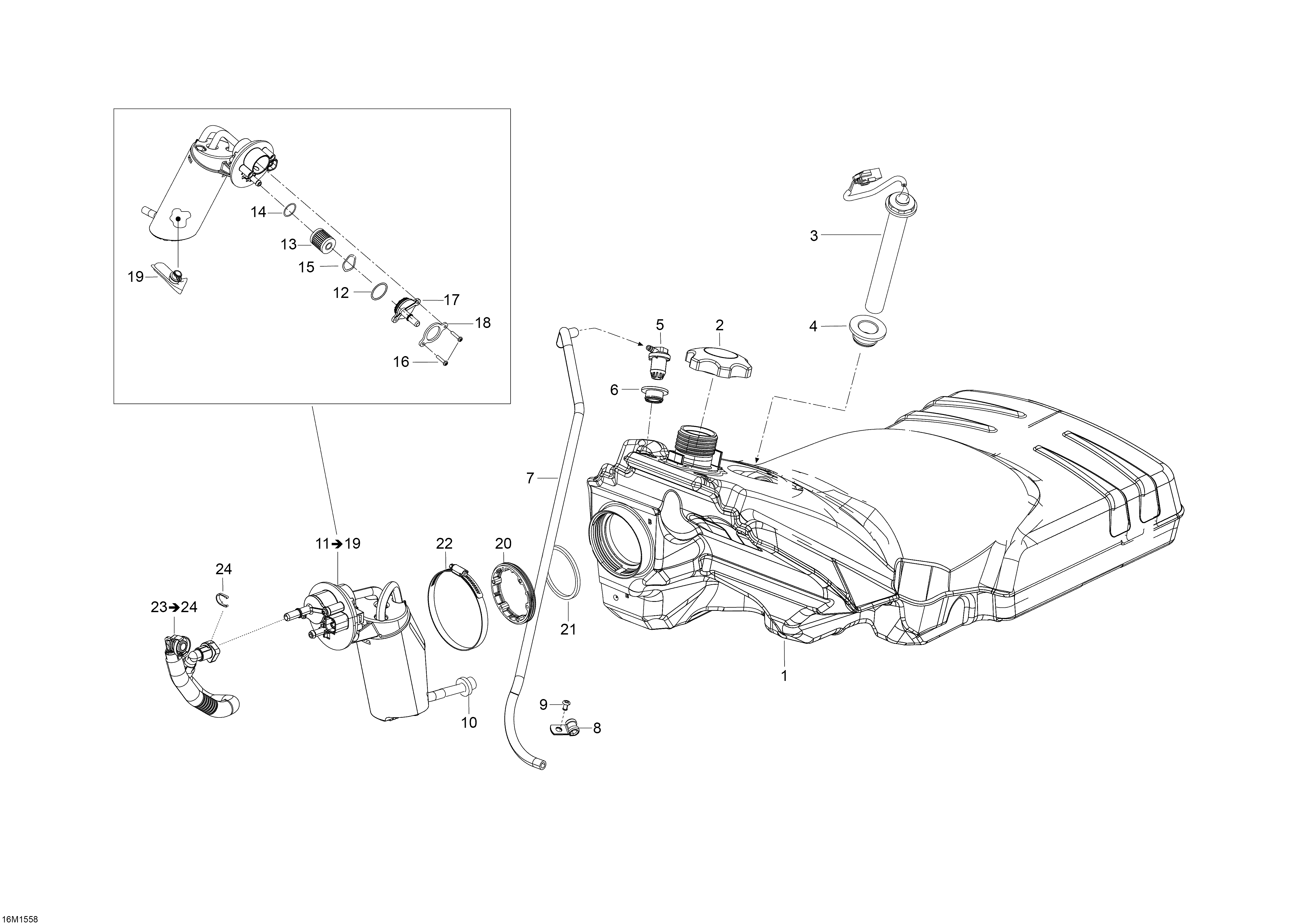

02- Fuel System _16M1558 для BRP Ski-Doo Expedition SE 1200 - 2015
-
№АртикулНазвание
-
1513033635 Fuel TankFuel Tank
-
2513033720 Fuel Tank Cap. Model-North AmericaFuel Tank Cap. Model-North America
-
2513033723 Fuel Tank Cap. Model-EuropeFuel Tank Cap. Model-Europe
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose, PolyurethaneHose, Polyurethane
-
8715900250 Hose ClipHose Clip
-
9390909200 Avex RivetAvex Rivet
-
10280000674 GrommetGrommet
-
11513033694 Fuel Pump Ass'y. Includes 11 To 19Fuel Pump Ass'y. Includes 11 To 19
-
12415129509 O-RingO-Ring
-
13415129510 Fuel FilterFuel Filter
-
14415129511 O-RingO-Ring
-
15415129512 Wave WasherWave Washer
-
16415129513 ScrewScrew
-
17415129685 CoverCover
-
18415129569 Fuel Pump RingFuel Pump Ring
-
19415129451 Fuel FilterFuel Filter
-
20513033180 RingRing
-
21513033334 GasketGasket
-
22513033628 ClampClamp
-
23513033583 Hose Ass'y. Includes 23 To 24Hose Ass'y. Includes 23 To 24
-
24513033135 Locking ClipLocking Clip
