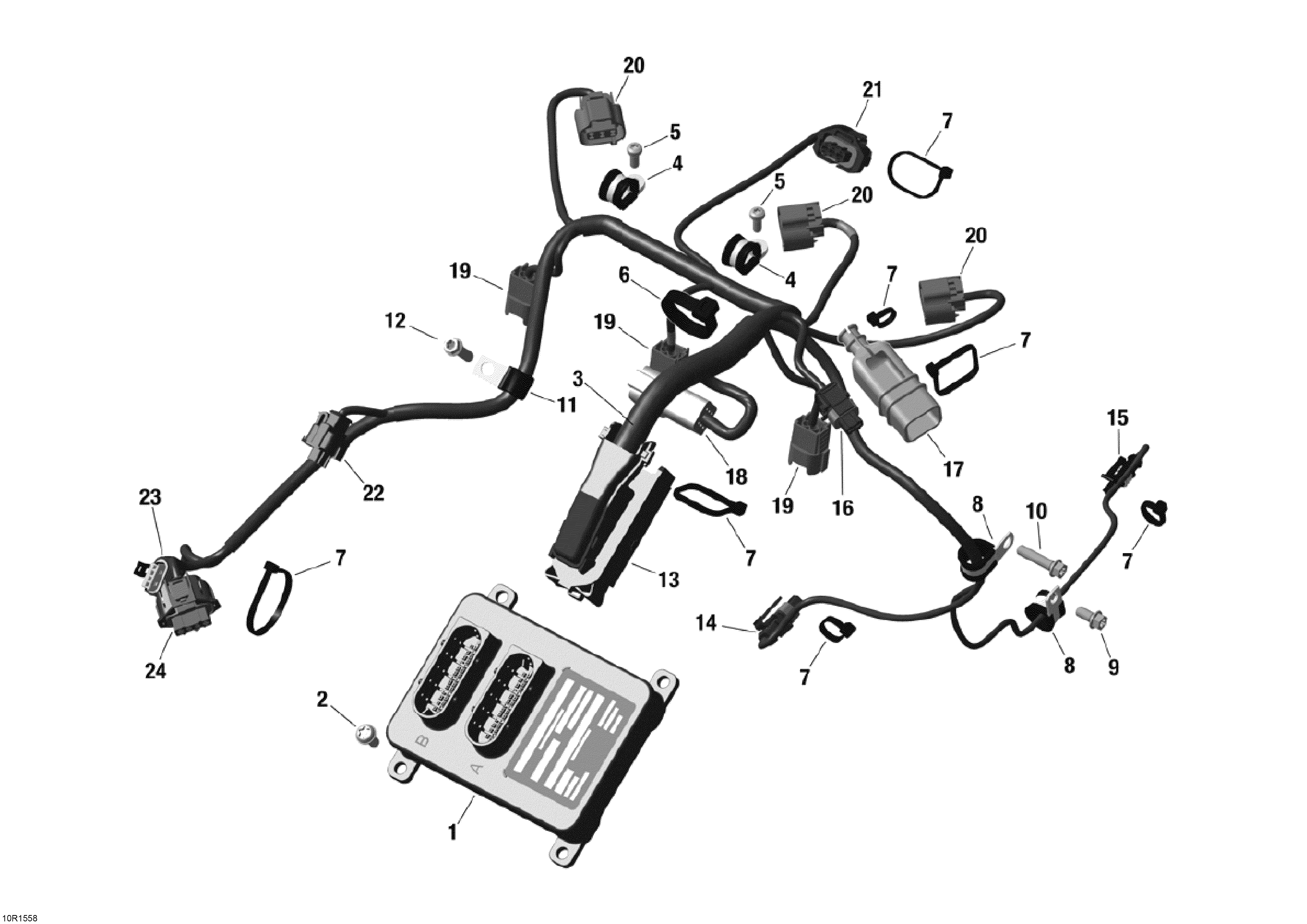

10- Engine Harness And Electric Module _10R1558 для BRP Ski-Doo Expedition SE 1200 - 2015
-
№АртикулНазвание
-
1420666128 ECM, Engine Control ModuleECM, Engine Control Module
-
2420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
3420665638 Engine Wiring Harness Ass'yEngine Wiring Harness Ass'y
-
4420851108 Cable ClampCable Clamp
-
5420640086 Torx Screw M5 X 12Torx Screw M5 X 12
-
6420866716 Tie-RapTie-Rap
-
7420651396 Tie RapTie Rap
-
8420851492 Cable ClampCable Clamp
-
9420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
10420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
11420251812 Cable ClampCable Clamp
-
12420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
13420664450 ECM ConnectorECM Connector
-
17420201070 ProtectorProtector
