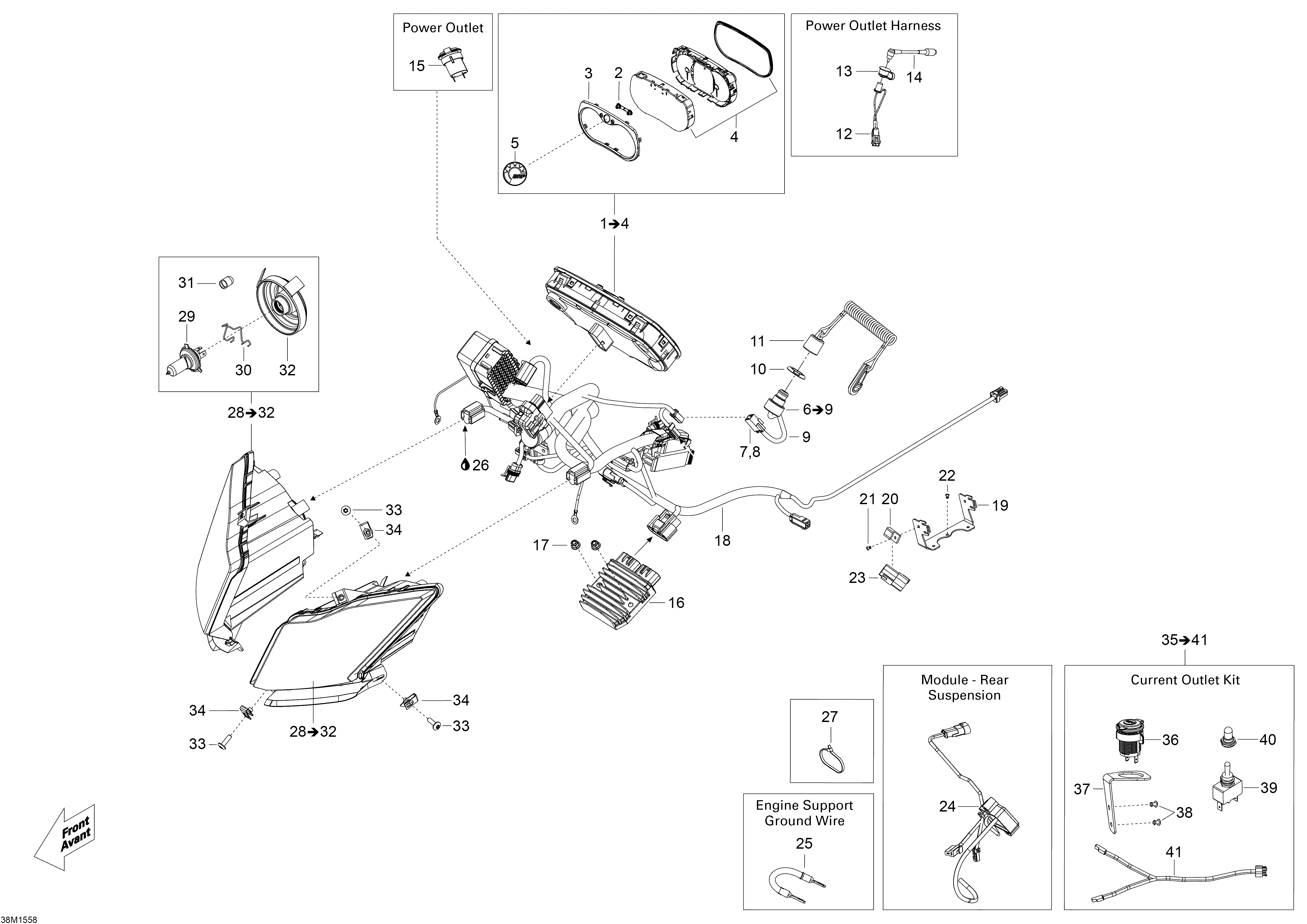

10- Electrical System _38M1558 для BRP Ski-Doo Expedition SE 1200 - 2015
-
№АртикулНазвание
-
1515177854 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515177057 DESS CapDESS Cap
-
12515177187 Visor HarnessVisor Harness
-
13572103300 CapCap
-
14515175851 ExtensionExtension
-
15710001248 Outlet DCOutlet DC
-
16515177325 Voltage RegulatorVoltage Regulator
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18515177689 Main HarnessMain Harness
-
19515177073 Fusebox SupportFusebox Support
-
20270000141 ClipClip
-
21293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
22390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
23515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
24515177125 Compressor ModuleCompressor Module
-
25515176883 Ground WireGround Wire
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
27293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
28517304194 RH Headlamp Ass'y. Includes 28 To 32RH Headlamp Ass'y. Includes 28 To 32
-
28517304195 LH Headlamp Ass'y. Includes 28 To 32LH Headlamp Ass'y. Includes 28 To 32
-
29515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
31515176498 CapCap
-
32515176499 CoverCover
-
33250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
34250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
35860200285 Current Outlet Kit. Includes 35 To 41Current Outlet Kit. Includes 35 To 41
-
36710001248 Outlet DCOutlet DC
-
37515176801 BracketBracket
-
3836108 RivetRivet
-
39410110700 Heat Grip SwitchHeat Grip Switch
-
40515175281 Switch CoverSwitch Cover
-
41515176802 HarnessHarness
