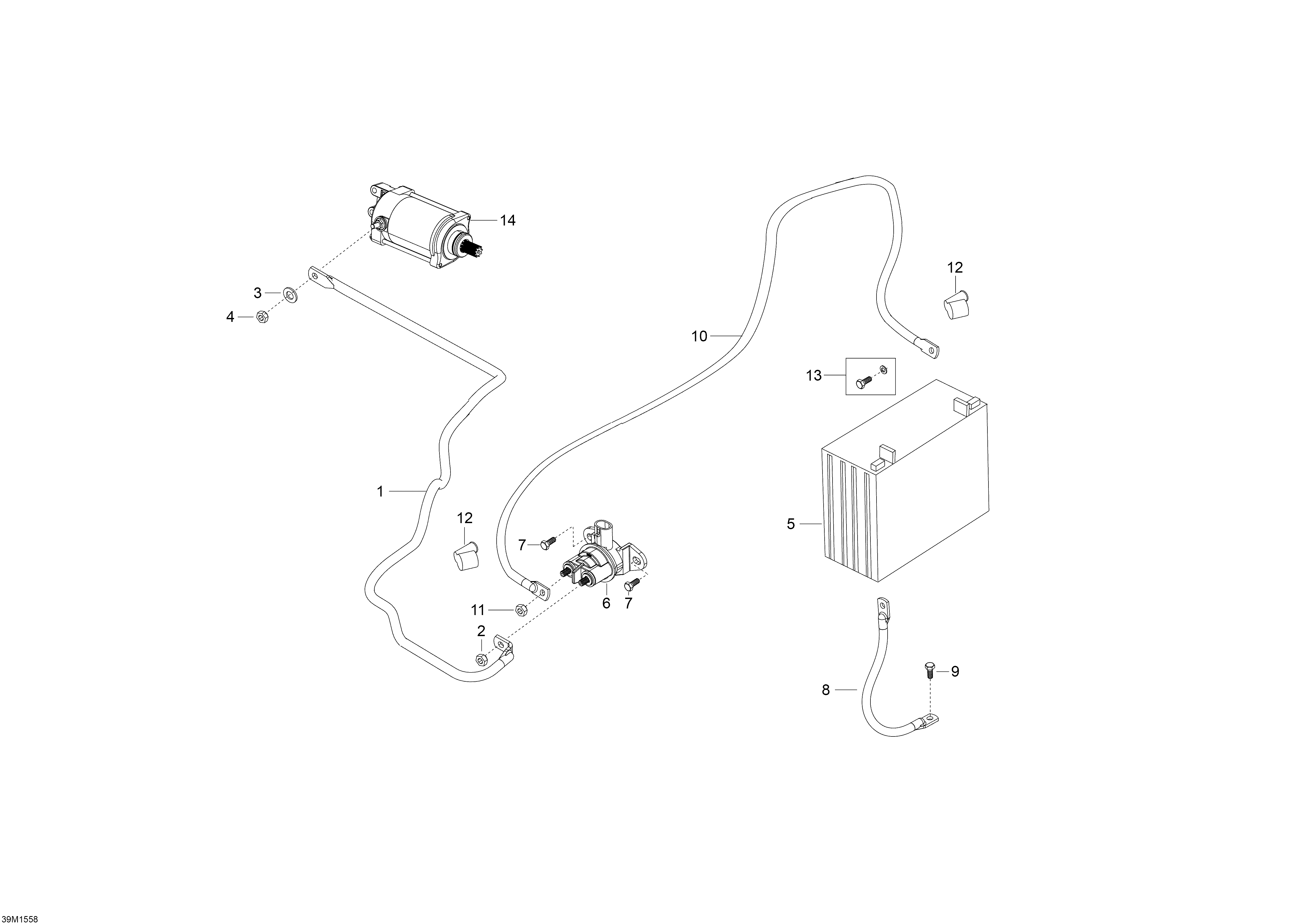

10- Battery And Starter _39M1558 для BRP Ski-Doo Expedition SE 1200 - 2015
-
№АртикулНазвание
-
1515176779 Start cable 1000 mm.Start cable 1000 mm.
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5515176151 BatteryBattery
-
6278003012 Starter RelayStarter Relay
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8515176777 Ground WireGround Wire
-
9207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10515176778 Battery WireBattery Wire
-
11232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
12710000495 Protector CapProtector Cap
-
13250000282 Battery Bolt KitBattery Bolt Kit
-
14420893530 Starter Ass'yStarter Ass'y
