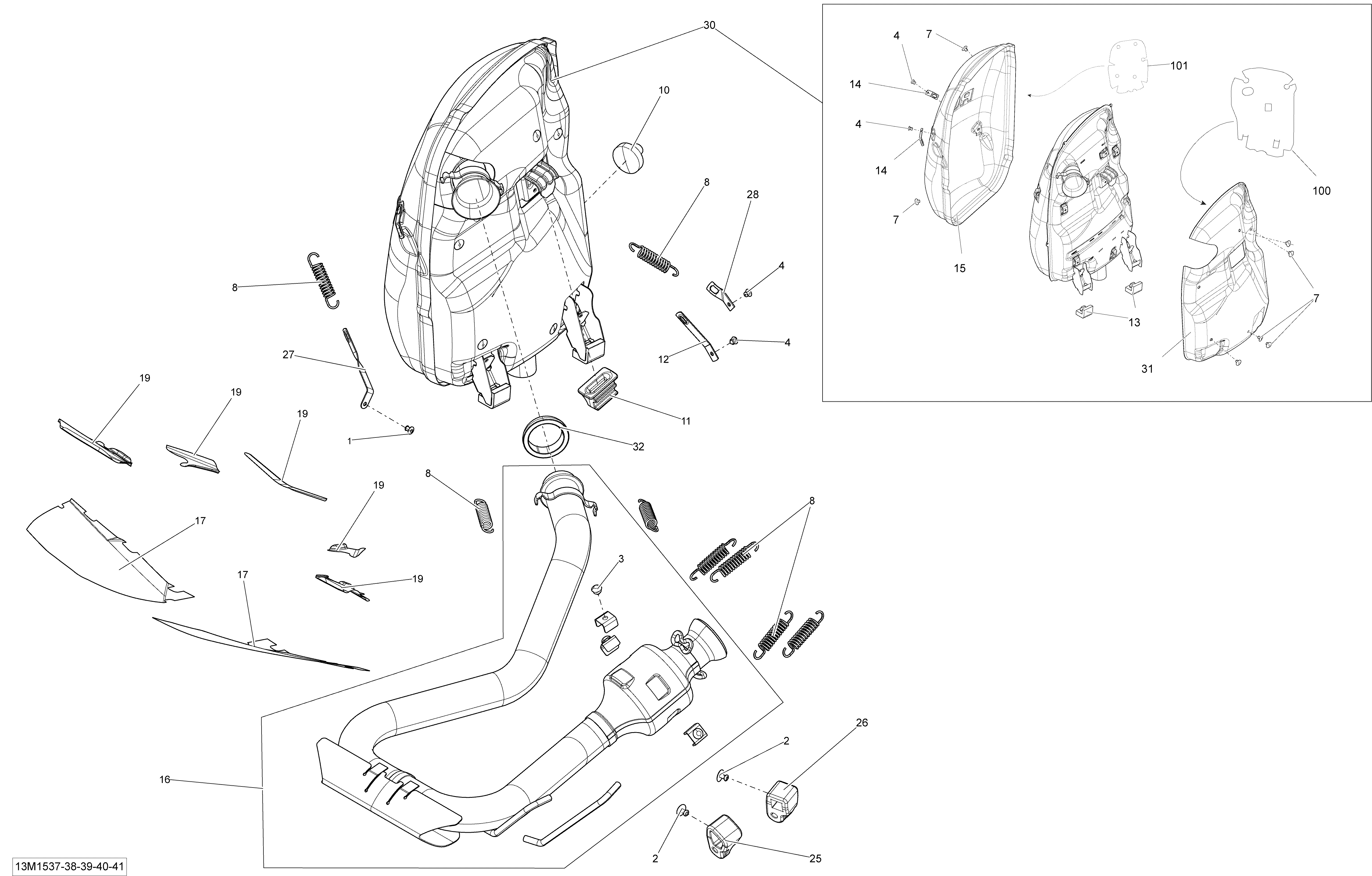

01- Exhaust System _13M1540 для BRP Ski-Doo Grand Touring LE 900ACE XR137 - 2015
-
№АртикулНазвание
-
1293150027 Avdel RivetAvdel Rivet
-
2293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
3293150173 Rivet 6,4 mmRivet 6,4 mm
-
4390909200 Avex RivetAvex Rivet
-
7390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
8415107100 SpringSpring
-
11514054346 StopperStopper
-
12514054484 Spring BracketSpring Bracket
-
13514054496 Lower StopperLower Stopper
-
14514054522 Spring BracketSpring Bracket
-
15514054644 RH Heat ShieldRH Heat Shield
-
16514055096 Pipe Ass'yPipe Ass'y
-
19514055009 Heat ShieldHeat Shield
-
26514055015 RubberRubber
-
27514055030 Spring BracketSpring Bracket
-
30514055127 Mufler Ass'yMufler Ass'y
-
31514055128 LH Heat ShieldLH Heat Shield
-
32707601033 Exhaust GasketExhaust Gasket
-
100514054769 RH Insulating WoolRH Insulating Wool
-
101514054881 LH Insulating WoolLH Insulating Wool
