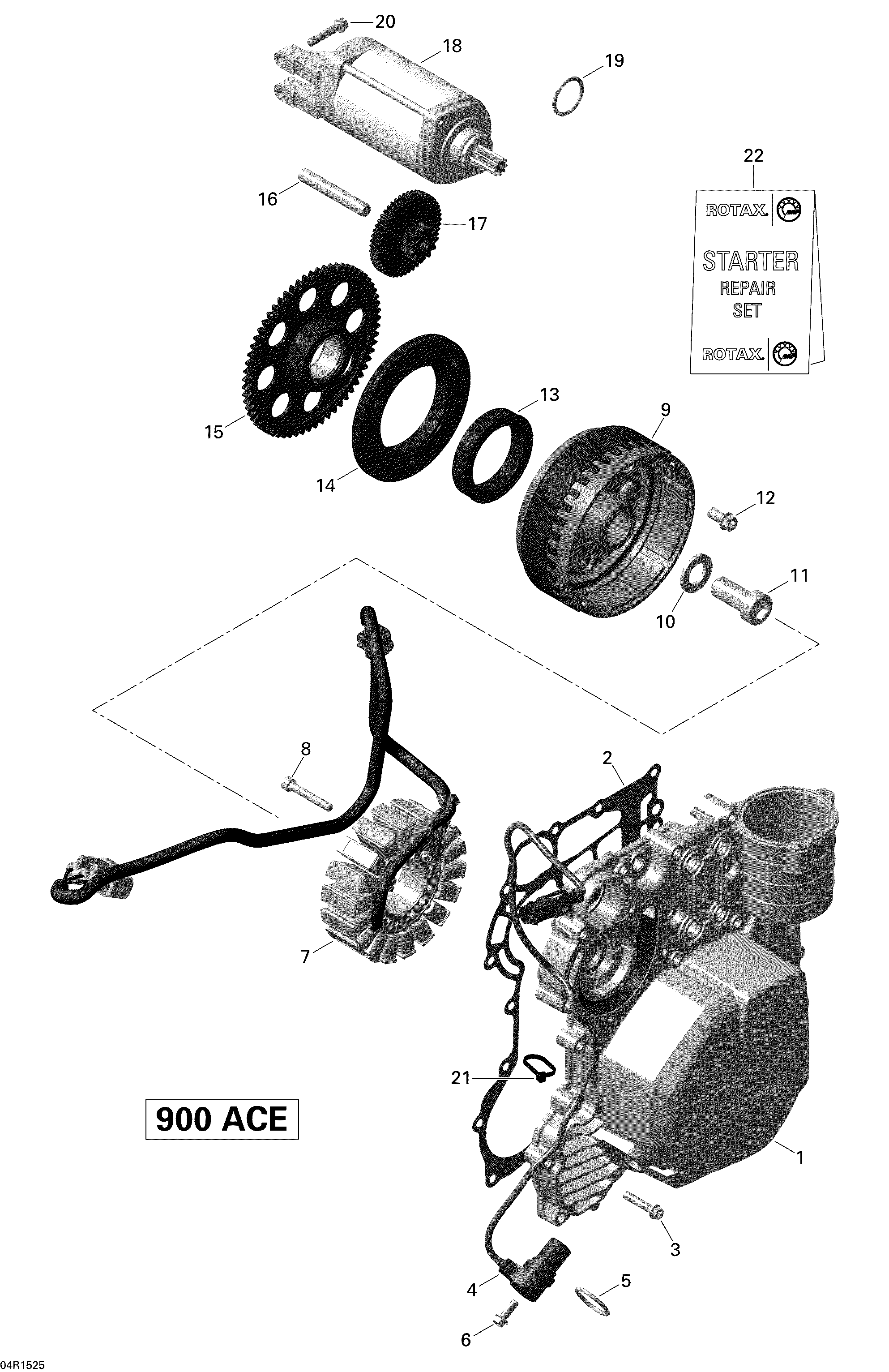

03- Magneto And Electric Starter _04R1525 для BRP Ski-Doo Grand Touring LE 900ACE XR137 - 2015
-
№АртикулНазвание
-
1420911052 CoverCover
-
2420431640 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4420966570 Crankshaft Position Sensor Ass'y. Includes 4 to 5Crankshaft Position Sensor Ass'y. Includes 4 to 5
-
5420431580 O-RingO-Ring
-
6420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420296908 Stator Plate 420WStator Plate 420W
-
8420241956 Allen Screw M6 X 40Allen Screw M6 X 40
-
9420685702 FlywheelFlywheel
-
10420627270 ShimShim
-
11420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
12420440854 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
13420659113 Sprag ClutchSprag Clutch
-
14420659261 Sprag Clutch HousingSprag Clutch Housing
-
15420434238 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
16420229475 Needle PinNeedle Pin
-
17420634741 Double GearDouble Gear
-
18420892429 Starter Ass'y. Includes 18 to 19Starter Ass'y. Includes 18 to 19
-
19420250145 O-RingO-Ring
-
20420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
21420866714 Tie RapTie Rap
-
22420881147 Carbon Brush SetCarbon Brush Set
