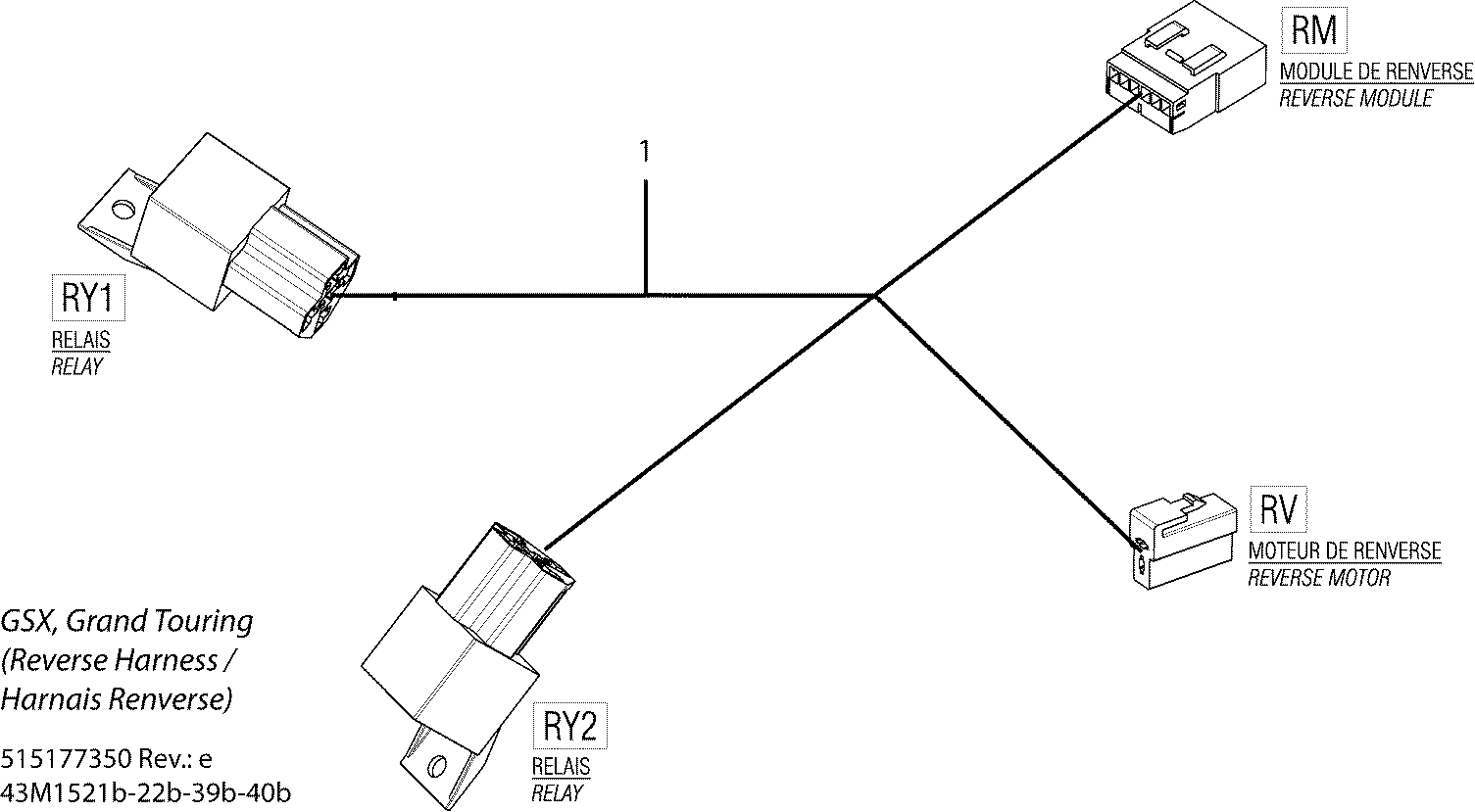

10- Electrical Harness Reverse_43M1540b для BRP Ski-Doo Grand Touring LE 900ACE XR137 - 2015
-
№АртикулНазвание
-
1515177350 Reverse Harness. Reverse HarnessReverse Harness. Reverse Harness
-
RM515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
RM515175232 Male TerminalMale Terminal
-
RV515176550 Female Terminal HousingFemale Terminal Housing
-
RV515175282 Female TerminalFemale Terminal
-
RY1409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
RY1515177041 RelayRelay
-
RY1561503100 Female TerminalFemale Terminal
-
RY2409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
RY2515177041 RelayRelay
-
RY2561503100 Female TerminalFemale Terminal
