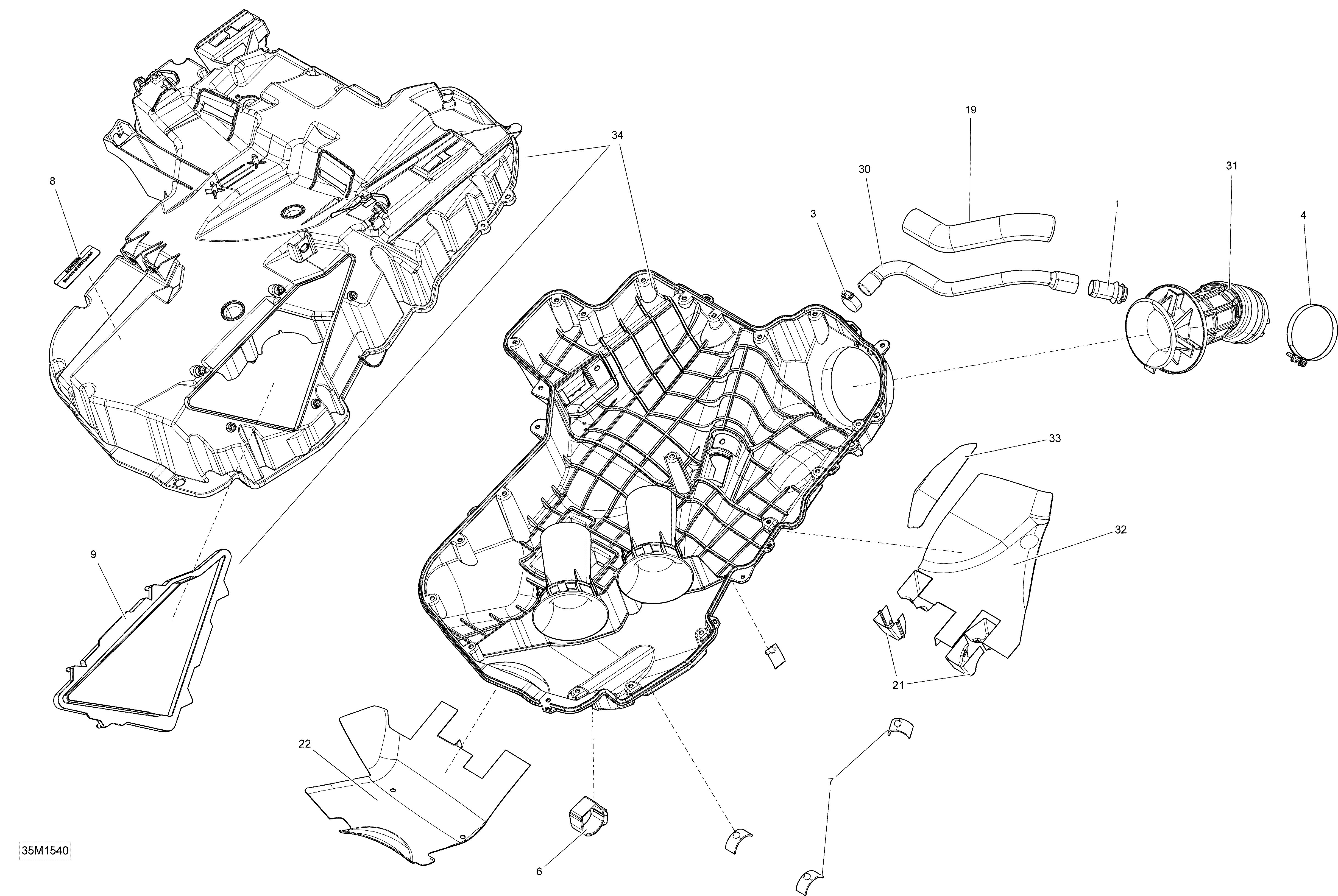

02- Air Intake System _35M1540 для BRP Ski-Doo Grand Touring LE 900ACE XR137 - 2015
-
№АртикулНазвание
-
1273000234 BreatherBreather
-
3293650172 Tridon Gear ClampTridon Gear Clamp
-
4293650229 Gemi ClampGemi Clamp
-
6508000532 Velcro StripVelcro Strip
-
7508000537 StopperStopper
-
8516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
9508000546 Air FilterAir Filter
-
19508000648 Tube IsolatorTube Isolator
-
21508000677 Heat ShieldHeat Shield
-
22508000793 Heat ShieldHeat Shield
-
30508000746 Hose VentHose Vent
-
31508000757 FluteFlute
-
32508000776 Heat shieldHeat shield
-
33508000777 Heat shieldHeat shield
-
34508000778 Secondary Chamber Ass'ySecondary Chamber Ass'y
