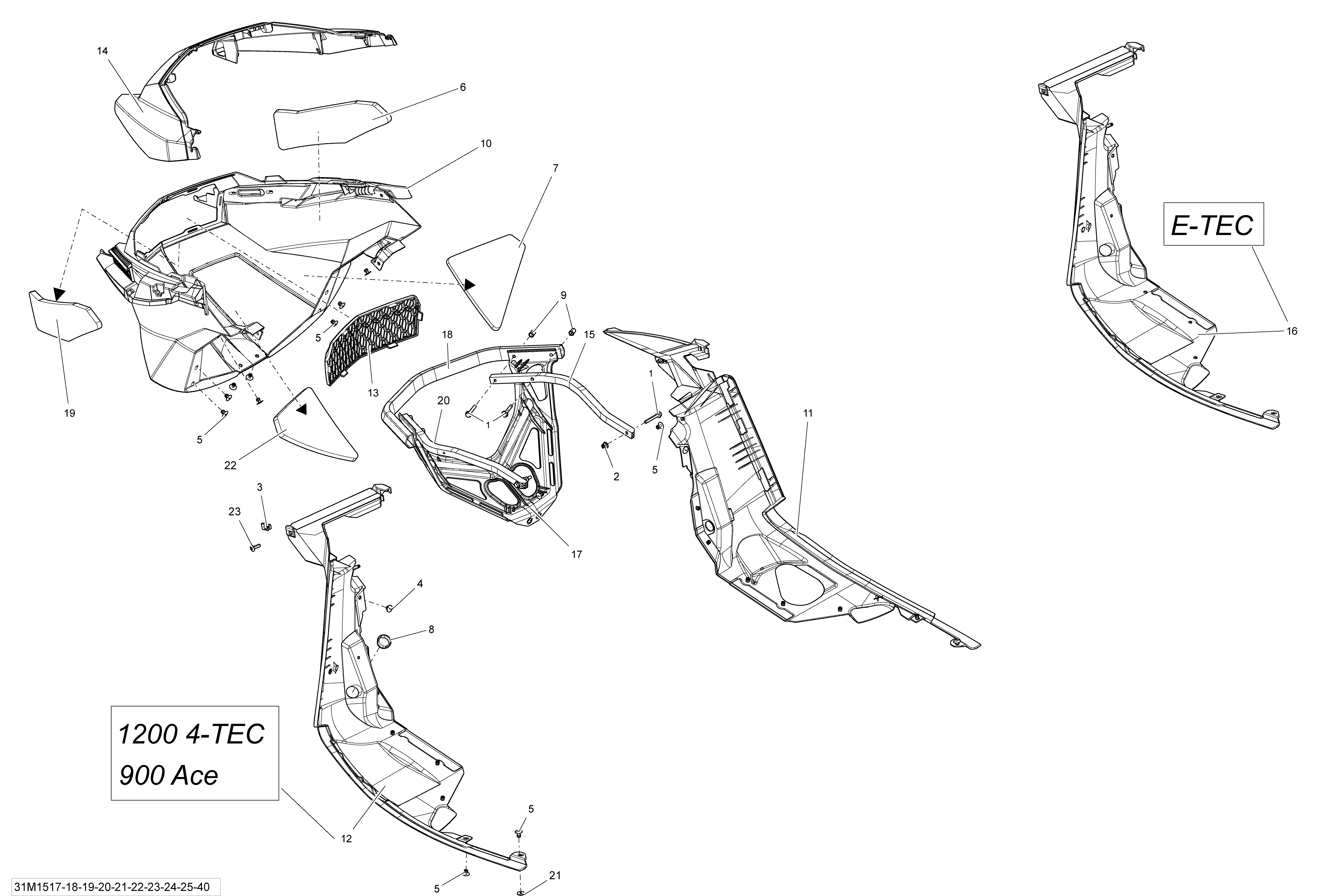

09- Bottom Pan SE_31M1522 для BRP Ski-Doo Grand Touring SE 1200 XR137 - 2015
-
№АртикулНазвание
-
1207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
4293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6502007217 RH Upper Hull FoamRH Upper Hull Foam
-
7502007220 RH Middle Hull FoamRH Middle Hull Foam
-
8414916600 Nylon CapNylon Cap
-
9293450275 InsertInsert
-
10502006873 Deep Black Front Bottom PanDeep Black Front Bottom Pan
-
11502006877 RH Bottom PanRH Bottom Pan
-
12502006878 LH Bottom PanLH Bottom Pan
-
13502006887 Botton Pan GrillBotton Pan Grill
-
14502007433 Platinium Bottom Pan CapPlatinium Bottom Pan Cap
-
15502006926 RH SupportRH Support
-
17502006938 BracketBracket
-
18502006939 Black BumperBlack Bumper
-
19502007219 LH Upper Hull FoamLH Upper Hull Foam
-
20502007357 LH SupportLH Support
-
21517124300 WasherWasher
-
22502007223 LH Middle Hull FoamLH Middle Hull Foam
-
23250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
