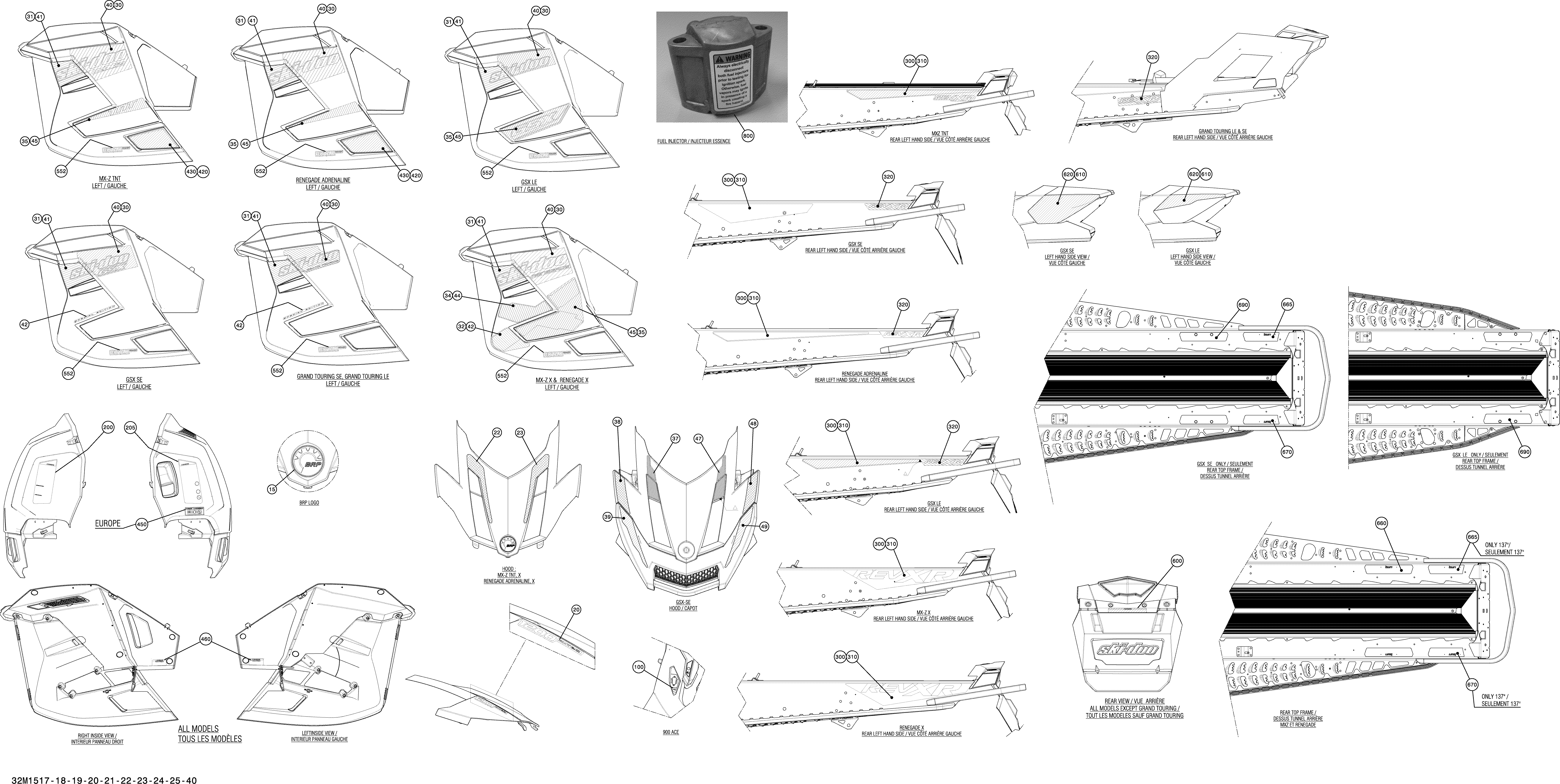

09- Decals SE_32M1522 для BRP Ski-Doo Grand Touring SE 1200 XR137 - 2015
-
№АртикулНазвание
-
15219903609 Logo BRP, 68 mmLogo BRP, 68 mm
-
20516006088 Hood Decal, 1200 4-TECHood Decal, 1200 4-TEC
-
30516006725 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
31516005450 RH Front Upper Side DecalRH Front Upper Side Decal
-
40516006724 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
41516005449 LH Front Upper Side DecalLH Front Upper Side Decal
-
42516005475 Decal, Special EditionDecal, Special Edition
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
320516006723 Decal, REV XRDecal, REV XR
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516005984 Decal, Rotax PowerDecal, Rotax Power
