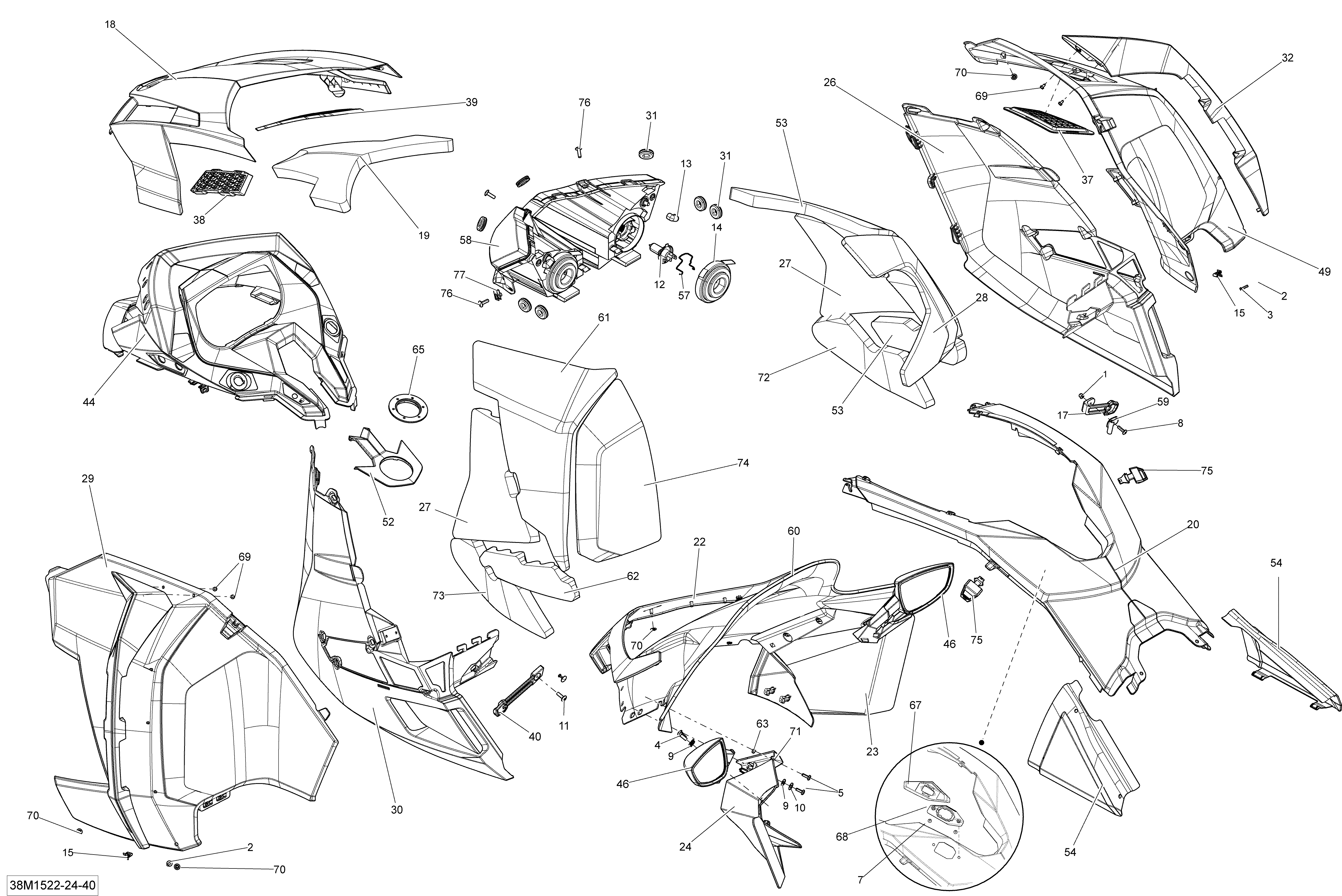

09- Hood SE_38M1522 для BRP Ski-Doo Grand Touring SE 1200 XR137 - 2015
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
4250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
5250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
8250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
9250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
10250200025 Washer M5Washer M5
-
11293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
12515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
13515176498 CapCap
-
14515176499 CoverCover
-
15517302785 ClipClip
-
17517303612 RH Panel LatchRH Panel Latch
-
18517303739 Black Hood. Model-Black-BlackBlack Hood. Model-Black-Black
-
18517305692 Hood. Model-Platinium-PlatiniumHood. Model-Platinium-Platinium
-
19517304893 Hood FoamHood Foam
-
20517303741 Black Console. Model-Black-BlackBlack Console. Model-Black-Black
-
20517305693 Platinum Console. Model-Platinium-PlatiniumPlatinum Console. Model-Platinium-Platinium
-
22860200230 Windshield Support KitWindshield Support Kit
-
23517303745 RH Console Air DeflectorRH Console Air Deflector
-
24517303746 LH Console Air DeflectorLH Console Air Deflector
-
26517304373 Black RH Pannel MouldingBlack RH Pannel Moulding
-
27517304894 Central Foam Panel RHCentral Foam Panel RH
-
27517304899 LH Central Panel FoamLH Central Panel Foam
-
28517304895 Rear Panel Foam RHRear Panel Foam RH
-
29517303753 Black LH Pannel. Model-Black-BlackBlack LH Pannel. Model-Black-Black
-
29517305704 Platinium LH Panel. Model-Platinium-PlatiniumPlatinium LH Panel. Model-Platinium-Platinium
-
30517304362 Black LH Pannel MouldingBlack LH Pannel Moulding
-
31517303756 GrommetGrommet
-
32517304197 Black RH Side Wind Deflector. Model-Black-BlackBlack RH Side Wind Deflector. Model-Black-Black
-
32517304196 Black LH Side Wind Deflector. Model-Black-BlackBlack LH Side Wind Deflector. Model-Black-Black
-
32517305697 Platinium RH Side Wind Deflector. Model-Platinium-PlatiniumPlatinium RH Side Wind Deflector. Model-Platinium-Platinium
-
32517305702 Platinium LH Side Wind Deflector. Model-Platinium-PlatiniumPlatinium LH Side Wind Deflector. Model-Platinium-Platinium
-
37517303801 Panel GrillPanel Grill
-
38517303804 LH Hood GrillLH Hood Grill
-
39517303805 RH Hood GrillRH Hood Grill
-
40517303808 LH Panel LatchLH Panel Latch
-
44517303996 Indicator SupportIndicator Support
-
46517305100 RH Mirror Ass'yRH Mirror Ass'y
-
46517305101 LH Mirror Ass'yLH Mirror Ass'y
-
49517304006 Black RH PannelBlack RH Pannel
-
49517305699 Platinium RH PannelPlatinium RH Pannel
-
52517304027 Deep Black Cap ConsoleDeep Black Cap Console
-
53517304908 RH Upper Panel FoamRH Upper Panel Foam
-
54517304123 Deep Black LH Fuel Tank Moulding. Model-Black-BlackDeep Black LH Fuel Tank Moulding. Model-Black-Black
-
54517305706 Platinium LH Fuel Tank Moulding. Model-Platinium-PlatiniumPlatinium LH Fuel Tank Moulding. Model-Platinium-Platinium
-
54517304124 Deep Black RH Fuel Tank Moulding. Model-Black-BlackDeep Black RH Fuel Tank Moulding. Model-Black-Black
-
54517305707 Platinium RH Fuel Tank Moulding. Model-Platinium-PlatiniumPlatinium RH Fuel Tank Moulding. Model-Platinium-Platinium
-
57517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
58517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
59517304221 Latch SupportLatch Support
-
60517304268 Extra Hight Windshield (620)Extra Hight Windshield (620)
-
61517304902 LH Upper Panel FoamLH Upper Panel Foam
-
62517304897 Central Foam Panel LHCentral Foam Panel LH
-
63517304281 Rubber Washer 5 mmRubber Washer 5 mm
-
65517304518 Console NutConsole Nut
-
69732601210 Hex. Flanged Screw #8 X 3/8Hex. Flanged Screw #8 X 3/8
-
70732610072 Push NutPush Nut
-
71517225900 Flat WasherFlat Washer
-
72517304905 RH Lower Panel FoamRH Lower Panel Foam
-
73517304901 LH Lower Panel FoamLH Lower Panel Foam
-
74517304904 LH Rear Panel FoamLH Rear Panel Foam
-
75517305000 Panel LatchPanel Latch
-
76250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
77250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
