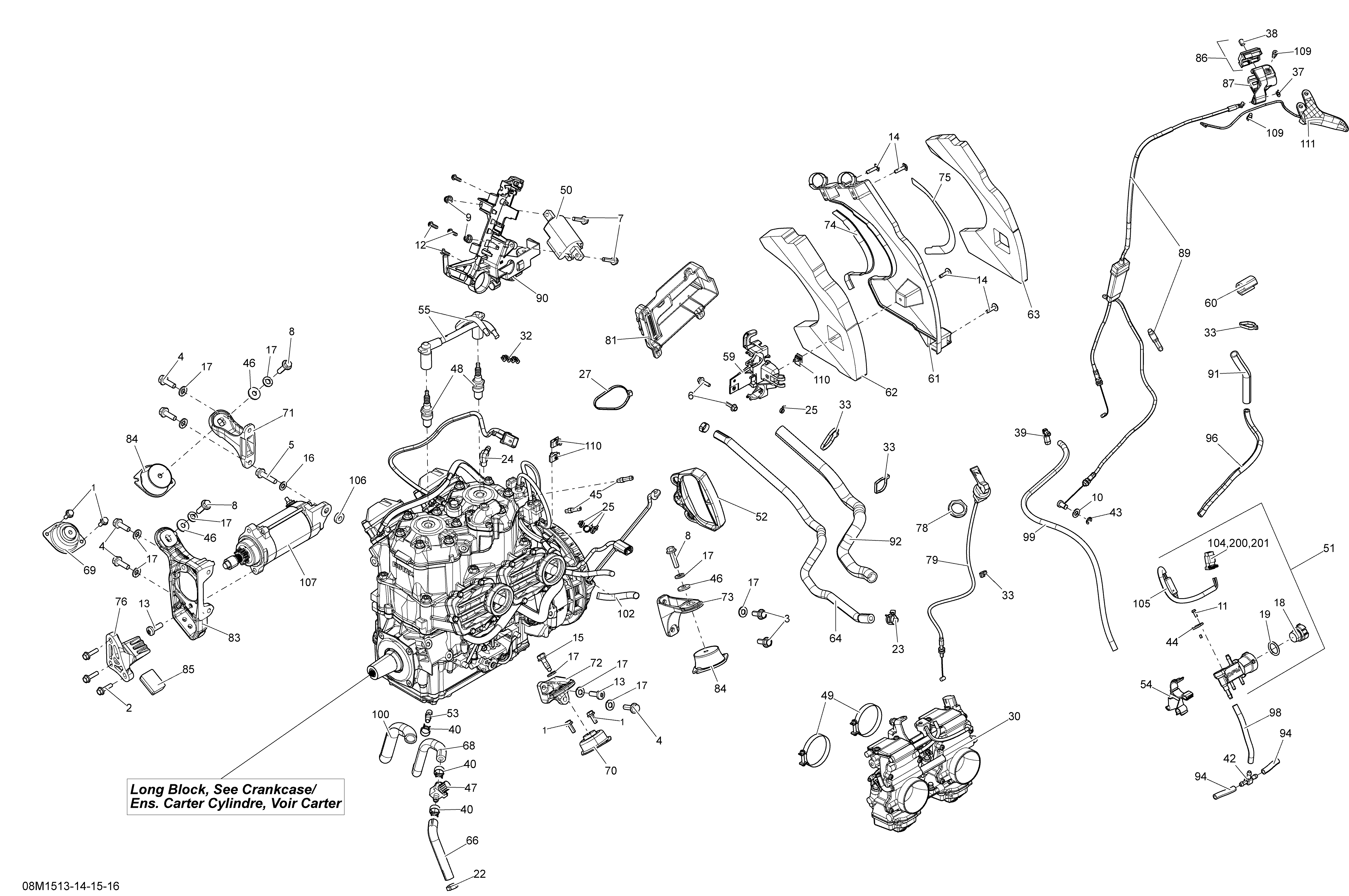

01- Engine _08M1513 для BRP Ski-Doo MXZ Sport 600 XP120 - 2015
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
7207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
8207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
12241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
13250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
14250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
15250000570 Hex. Screw M8Hex. Screw M8
-
16250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
17250200146 Conical Spring Washer M8Conical Spring Washer M8
-
21293650046 Oetiker ClampOetiker Clamp
-
22293650125 Oetiker ClampOetiker Clamp
-
23293650214 Norma Spring ClampNorma Spring Clamp
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30403138815 Carburetor Kit, TM40-B418Carburetor Kit, TM40-B418
-
32410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37414274500 CirclipCirclip
-
38414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
39414580700 Male ConnectorMale Connector
-
40414655700 Spring ClampSpring Clamp
-
42572045500 T-FittingT-Fitting
-
43414753500 CirclipCirclip
-
45420924724 Hose NippleHose Nipple
-
46503183200 Washer, YellowWasher, Yellow
-
47512059324 Valve 5/16''Valve 5/16''
-
48415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
49512059835 Gemi ClampGemi Clamp
-
50512059968 Ignition CoilIgnition Coil
-
52512060136 Starter GripStarter Grip
-
53512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
55512060291 CableCable
-
59512060298 Solenoid SupportSolenoid Support
-
60512060313 ProtectorProtector
-
61512060338 Noise ShieldNoise Shield
-
62512060341 Inner Noise FoamInner Noise Foam
-
63512060342 Outer Noise FoamOuter Noise Foam
-
64512060347 Hose FormedHose Formed
-
66512060353 Hose FormedHose Formed
-
68512060355 Hose FormedHose Formed
-
69512060387 Rubber MountRubber Mount
-
70512060448 Rubber MountRubber Mount
-
71512060469 Front Support, MAGFront Support, MAG
-
72512060478 Rear Support, PTORear Support, PTO
-
73512060559 Rear Support, MAGRear Support, MAG
-
74512060574 Heat ShieldHeat Shield
-
75512060575 Heat ShieldHeat Shield
-
76512060576 Stopper SupportStopper Support
-
78512060671 Plastic NutPlastic Nut
-
79512060672 Choke CableChoke Cable
-
80512060680 Calibrated Module, 600Calibrated Module, 600
-
83512060699 Front Support, PTOFront Support, PTO
-
84512060729 Rubber MountRubber Mount
-
85512060627 StopperStopper
-
86512060859 Upper HousingUpper Housing
-
87512060860 Lower HousingLower Housing
-
89512060886 Throttle CableThrottle Cable
-
90512060924 Coils SupportCoils Support
-
91415079900 Tubing 10 mmTubing 10 mm
-
92415080000 Tubing 16 mmTubing 16 mm
-
96515175442 Tubing 6 mmTubing 6 mm
-
99415080200 Hose, PolyurethaneHose, Polyurethane
-
100415080000 Tubing 16 mmTubing 16 mm
-
102415079900 Tubing 10 mmTubing 10 mm
-
106515176500 WasherWasher
-
107515177389 StarterStarter
-
109732601143 Flanged ScrewFlanged Screw
-
110250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
111512061049 Throttle Handle Ass'yThrottle Handle Ass'y
