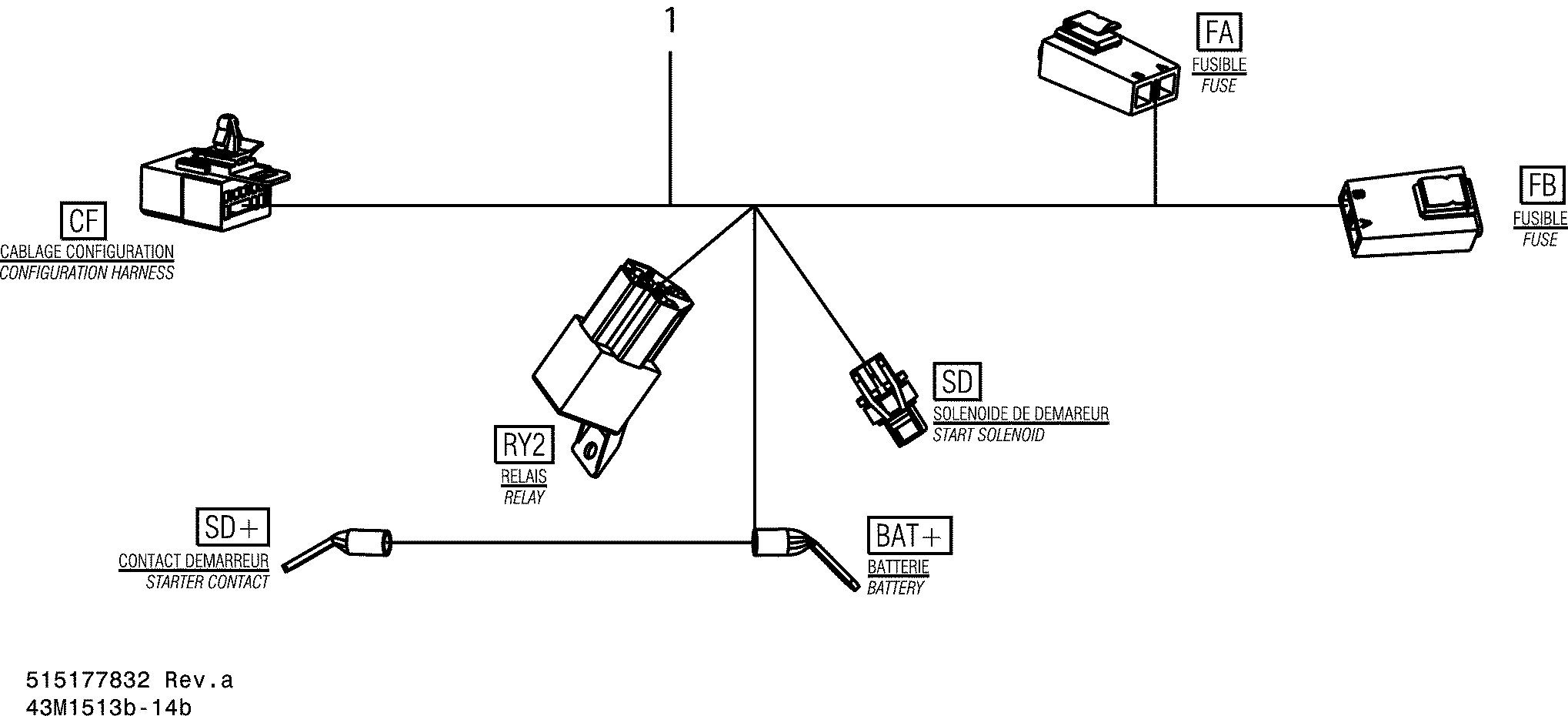

10- Electrical Harness Starter Harness_43M1513b для BRP Ski-Doo MXZ Sport 600 XP120 - 2015
-
№АртикулНазвание
-
1515177832 Electrical Start Harnes. Electric StartElectrical Start Harnes. Electric Start
-
BAT+515177214 TerminalTerminal
-
CF515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
CF515175283 Housing SupportHousing Support
-
CF515175232 Male TerminalMale Terminal
-
FA710000992 ClipClip
-
FA410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
FA409004000 Fuse HolderFuse Holder
-
FA409004200 Female TerminalFemale Terminal
-
FA710000992 ClipClip
-
FB278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
FA409004000 Fuse HolderFuse Holder
-
FB409011600 Female TerminalFemale Terminal
-
RY2409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
RY2515177041 RelayRelay
-
RY2561503100 Female TerminalFemale Terminal
-
RY2561503100 Female TerminalFemale Terminal
-
RY2293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
SD515177192 Female HousingFemale Housing
-
SD710001332 Seal WireSeal Wire
-
SD710000925 TerminalTerminal
-
SD+710000495 Protector CapProtector Cap
