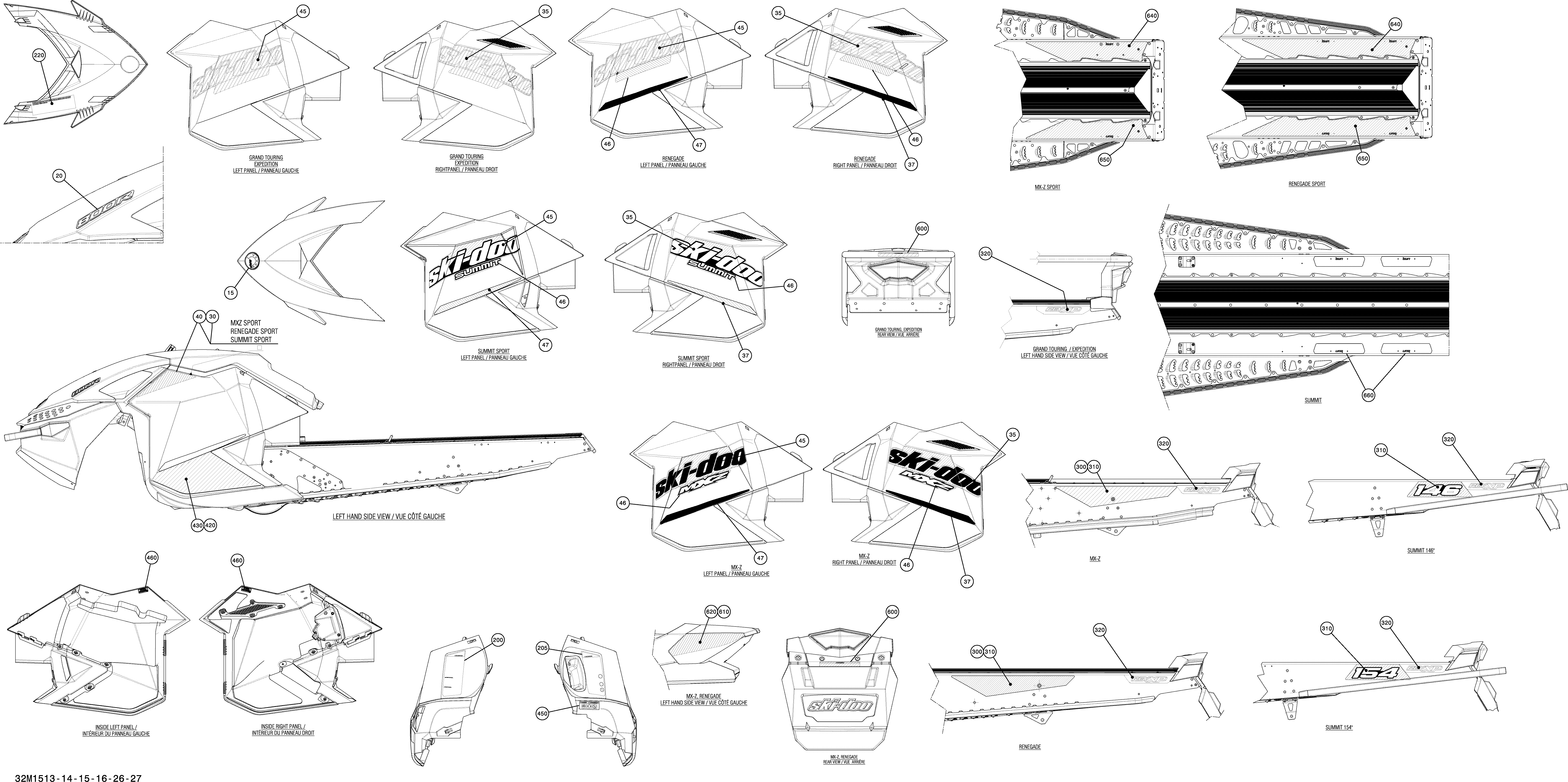

09- Decals _32M1513 для BRP Ski-Doo MXZ Sport 600 XP120 - 2015
-
№АртикулНазвание
-
15219903609 Logo BRP, 68 mmLogo BRP, 68 mm
-
20516005991 Hood Decal, Rotax 600Hood Decal, Rotax 600
-
30516006513 RH Upper Side DecalRH Upper Side Decal
-
35516005308 RH Side DecalRH Side Decal
-
37516006517 RH Lower Side DecalRH Lower Side Decal
-
40516006512 LH Upper Side DecalLH Upper Side Decal
-
45516005307 LH Side DecalLH Side Decal
-
46516005129 Side Decal, MXZSide Decal, MXZ
-
47516006516 LH Lower Side DecalLH Lower Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516006521 RH Frame DecalRH Frame Decal
-
310516006520 LH Frame DecalLH Frame Decal
-
320516006522 Decal, REV XPDecal, REV XP
-
420516006519 RH Lower DecalRH Lower Decal
-
430516006518 LH Lower DecalLH Lower Decal
-
450516005226 Warning Decal, PictogramWarning Decal, Pictogram
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516006117 Warning Decal, TrackWarning Decal, Track
-
610516006525 RH Cover DecalRH Cover Decal
-
620516006524 LH Cover DecalLH Cover Decal
-
640516006964 RH Top Frame DecalRH Top Frame Decal
-
650516006963 LH Top Frame DecalLH Top Frame Decal
