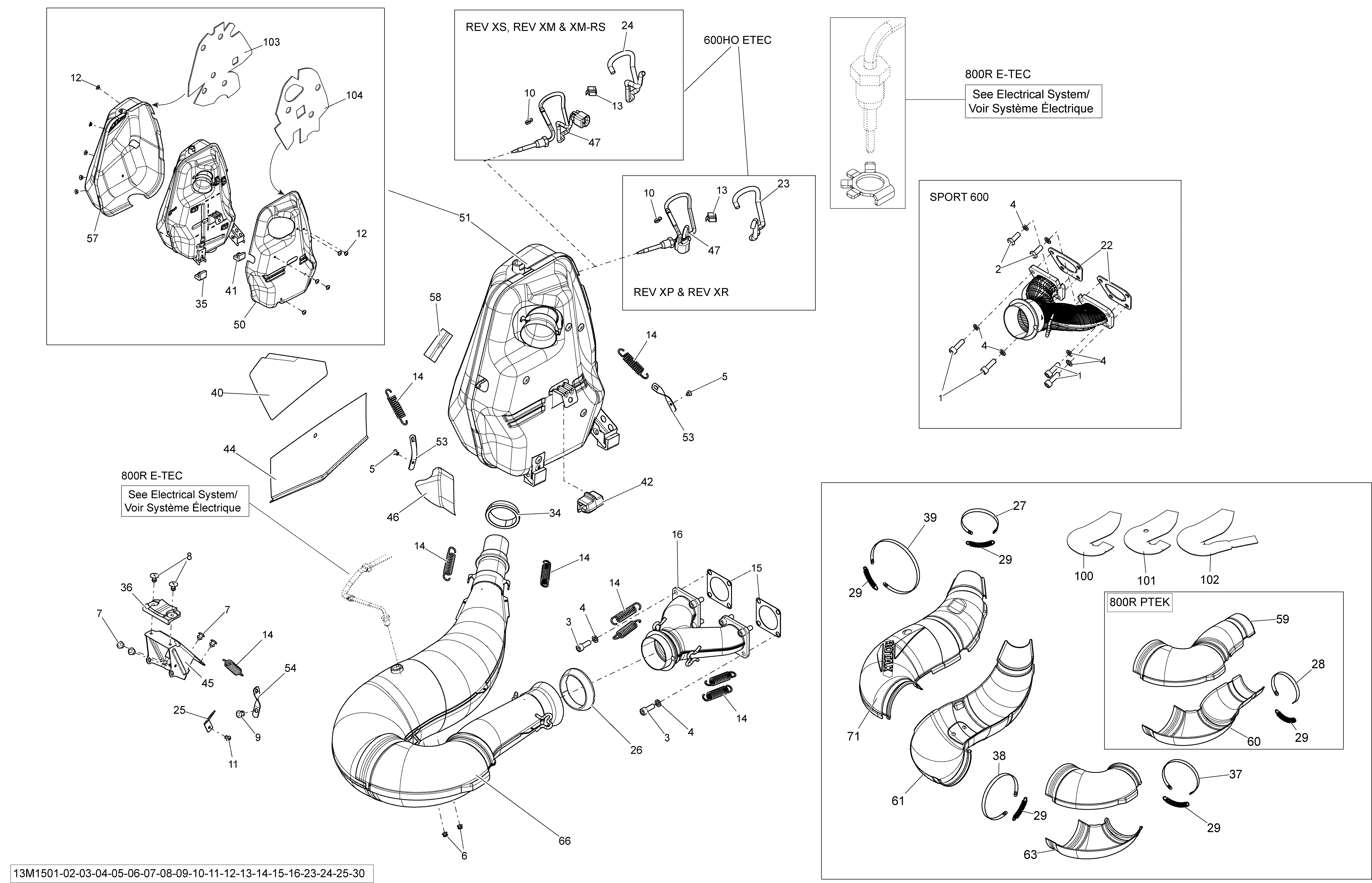

01- Exhaust System _13M1513 для BRP Ski-Doo MXZ Sport 600 XP120 - 2015
-
№АртикулНазвание
-
1205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
2207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
4250200111 WasherWasher
-
5293150027 Avdel RivetAvdel Rivet
-
6293150091 Henrob RivetHenrob Rivet
-
8293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
9293150147 Hemlock RivetHemlock Rivet
-
11390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
14415107100 SpringSpring
-
16420673131 Exhaust ManifoldExhaust Manifold
-
22420931610 GasketGasket
-
26514053487 Exhaust GasketExhaust Gasket
-
27514053499 Retaining StrapRetaining Strap
-
29514053643 SpringSpring
-
32514053812 Exhaust GasketExhaust Gasket
-
35514054274 Lower StopperLower Stopper
-
36514054275 BumperBumper
-
37514054408 Retaining StrapRetaining Strap
-
38514054409 Retaining StrapRetaining Strap
-
39514054410 Retaining StrapRetaining Strap
-
40514054488 Reflective SheetReflective Sheet
-
41514054496 Lower StopperLower Stopper
-
42514054606 Upper StopperUpper Stopper
-
46514054817 Heat ShieldHeat Shield
-
50514054967 LH DeflectorLH Deflector
-
52514054972 Muffler Ass'yMuffler Ass'y
-
53514054974 Spring BracketSpring Bracket
-
54514054975 Spring BracketSpring Bracket
-
55514054984 RH DeflectorRH Deflector
-
61514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
62514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
63514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
64514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
68514055064 Exhaust Tuned PipeExhaust Tuned Pipe
-
100514054487 Insulating WoolInsulating Wool
-
103514054711 RH Insulating WoolRH Insulating Wool
-
104514054299 LH Insulating WoolLH Insulating Wool
