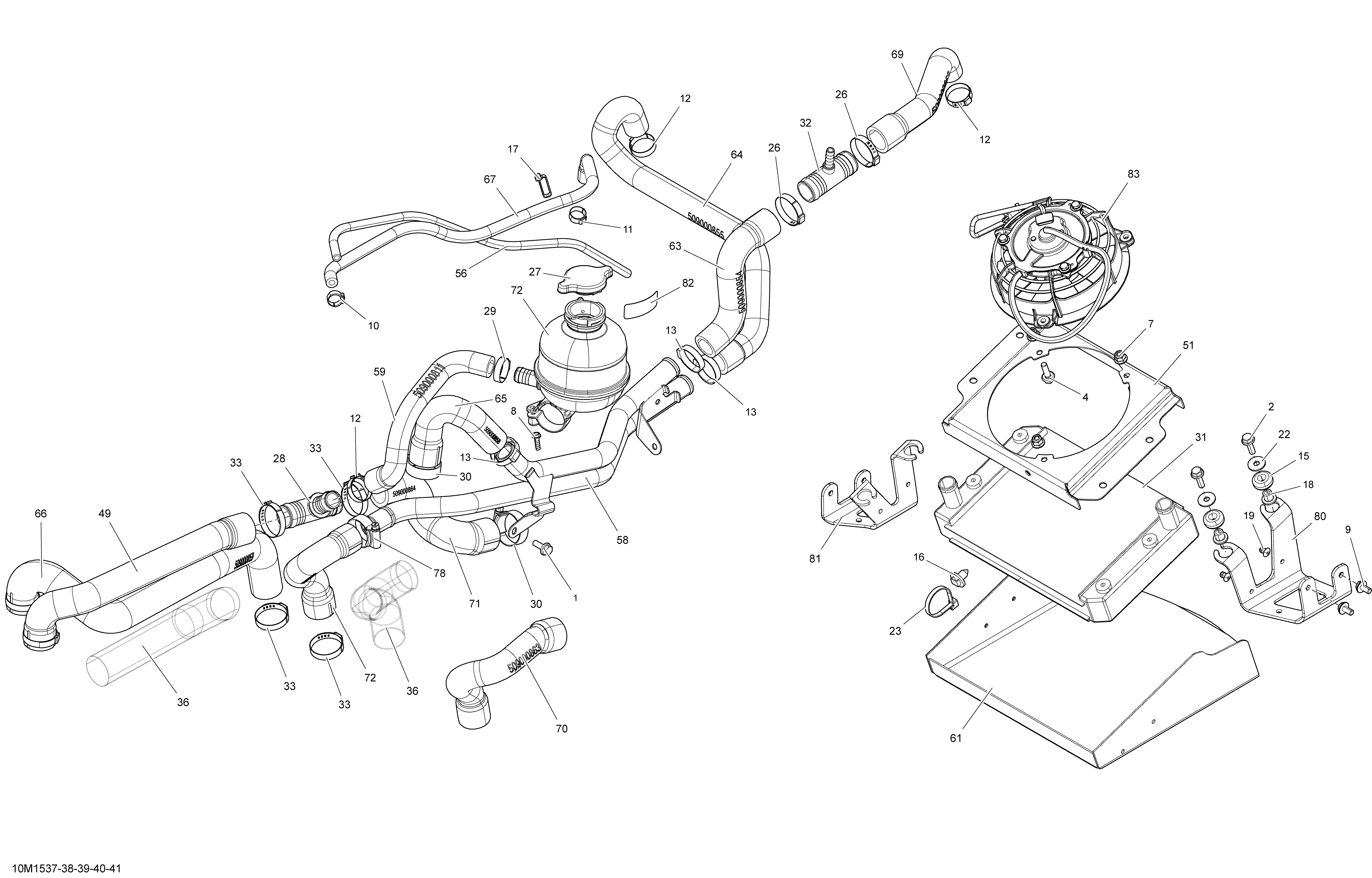

01- Cooling System _10M1538 для BRP Ski-Doo Renegade Adrenaline 900ACE XS137 - 2015
-
№АртикулНазвание
-
8241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
12293650099 Crimp ClampCrimp Clamp
-
27509000180 Pressure CapPressure Cap
-
28509000372 T-FittingT-Fitting
-
29509000442 Oetiker Gear ClampOetiker Gear Clamp
-
30509000443 Aba Gear ClampAba Gear Clamp
-
33509000529 Oetiker Gear ClampOetiker Gear Clamp
-
36509000513 Protector Tube 32 mmProtector Tube 32 mm
-
49509000697 Radiator Return HoseRadiator Return Hose
-
56509000775 HoseHose
-
59509000811 Filling HoseFilling Hose
-
66509000859 Radiator HoseRadiator Hose
-
70509000863 Engine Outlet HoseEngine Outlet Hose
-
71509000864 Engine Inlet HoseEngine Inlet Hose
-
73509000881 Cooling TankCooling Tank
-
82516005904 Warning DecalWarning Decal
