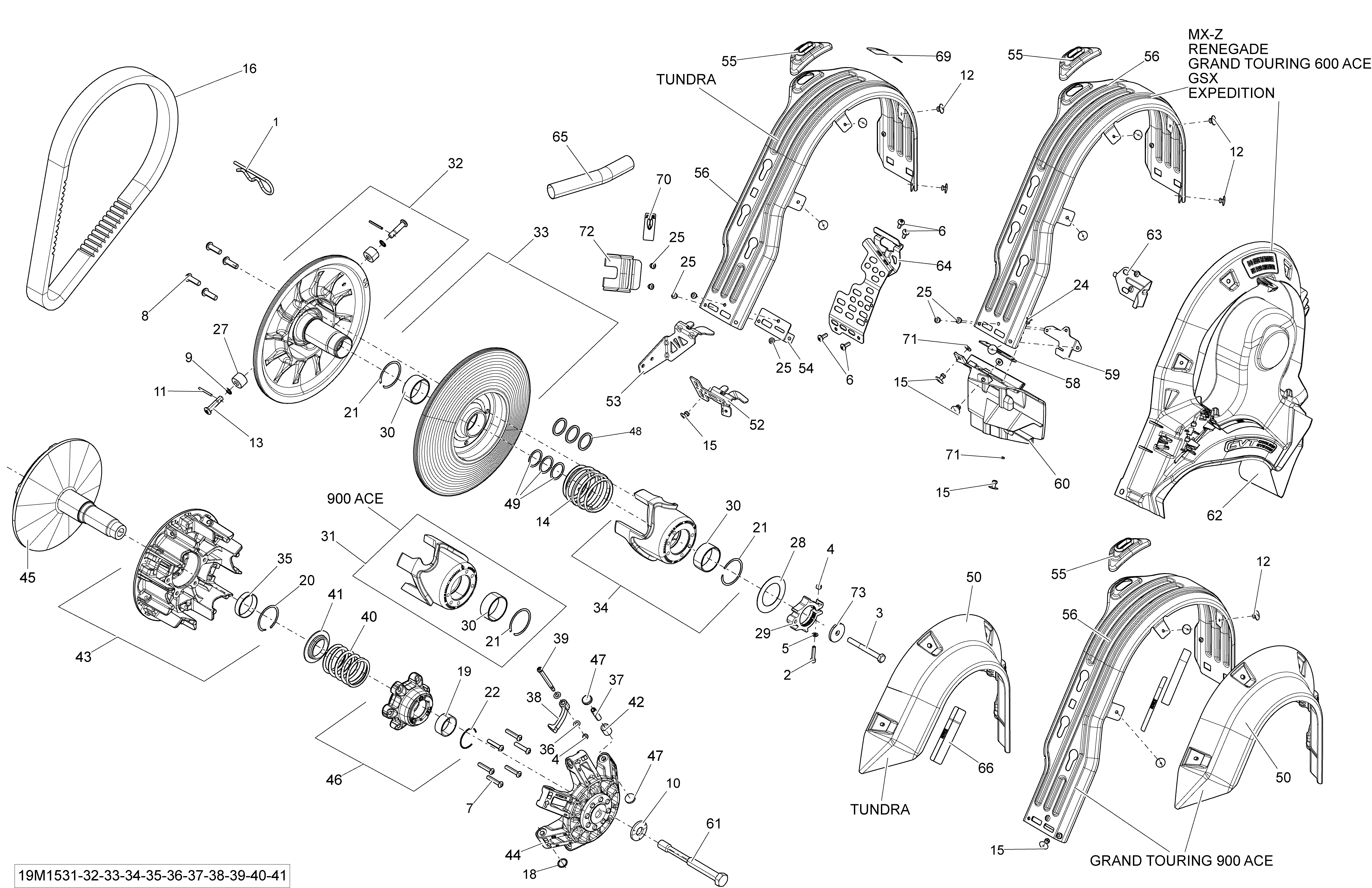

05- Pulley System _19M1538 для BRP Ski-Doo Renegade Adrenaline 900ACE XS137 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3207588044 Hex. Cap Screw M8 X 80Hex. Cap Screw M8 X 80
-
4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
5234051410 Flat Washer M5Flat Washer M5
-
6250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
7250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
8250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
9250200009 Lock Washer 8 mmLock Washer 8 mm
-
10250200144 Conical Spring Washer M14Conical Spring Washer M14
-
11250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
12293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
13417127294 Pivot StudPivot Stud
-
14417127467 Release SpringRelease Spring
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16417300383 Drive BeltDrive Belt
-
18293300169 O RingO Ring
-
19293350079 Journal BearingJournal Bearing
-
20293370037 CirclipCirclip
-
21293370049 CirclipCirclip
-
22293370065 CirclipCirclip
-
24390909100 Avex RivetAvex Rivet
-
25390909200 Avex RivetAvex Rivet
-
27417127016 RollerRoller
-
28417127155 WasherWasher
-
29415129604 Calibration Ass'yCalibration Ass'y
-
30417127318 BushingBushing
-
31417127474 Cam Ass'yCam Ass'y
-
32417127351 Fixe Flange Ass'yFixe Flange Ass'y
-
33417127366 Slider Flange Ass'ySlider Flange Ass'y
-
35417222758 BushingBushing
-
36417223660 Stopper WasherStopper Washer
-
37417223257 Roller AxleRoller Axle
-
38417223679 Rampe 735Rampe 735
-
39417223694 Ramp AxleRamp Axle
-
40417223751 Clutch Spring, Yellow/RedClutch Spring, Yellow/Red
-
41417223752 Seat SpringSeat Spring
-
42417223767 RollerRoller
-
43417223763 Slider Flange Ass'ySlider Flange Ass'y
-
44417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
45417223867 Fixe Flange Ass'yFixe Flange Ass'y
-
46417223650 Spring Cover Ass'ySpring Cover Ass'y
-
47417223919 Slider ShoeSlider Shoe
-
48417300252 SpacerSpacer
-
49417300265 SpacerSpacer
-
55417300381 GuideGuide
-
56417300382 Belt GuardBelt Guard
-
58417300421 Reinforcement PlateReinforcement Plate
-
59417300423 Front BracketFront Bracket
-
60417300430 Front SupportFront Support
-
61417300432 Pulley Drive BoltPulley Drive Bolt
-
62417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
63417300445 StopperStopper
-
64417300448 Belt Guard BracketBelt Guard Bracket
-
66516005503 Decal, EnglishDecal, English
-
69516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
71517225900 Flat WasherFlat Washer
-
73517302322 Strength WasherStrength Washer
