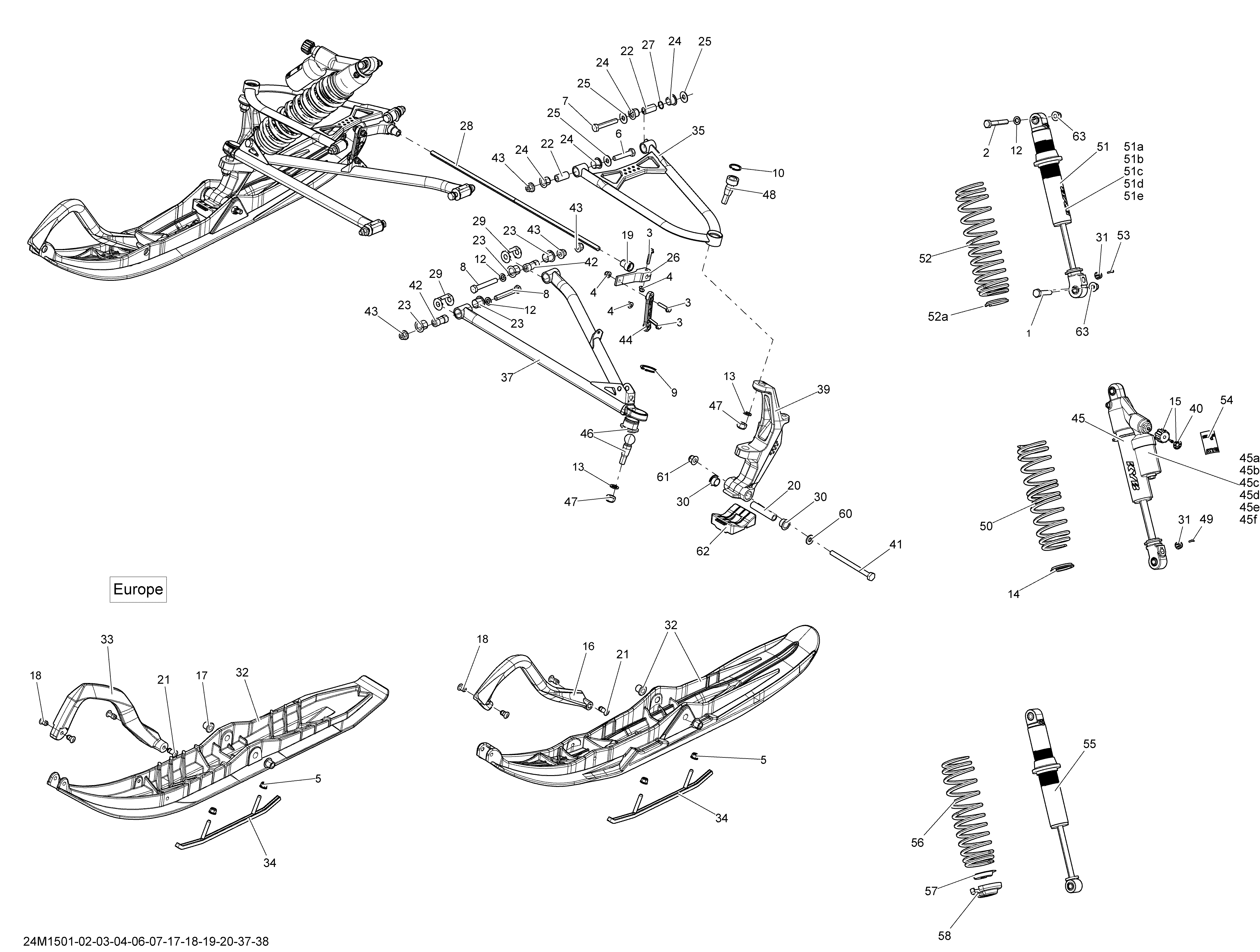

07- Front Suspension And Ski _24M1538 для BRP Ski-Doo Renegade Adrenaline 900ACE XS137 - 2015
-
№АртикулНазвание
-
1207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
2207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
3207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
4233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
7250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
8250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
9293370035 CirclipCirclip
-
10293370070 CirclipCirclip
-
12503189564 WasherWasher
-
13503192491 WasherWasher
-
14503192608 Spring StopperSpring Stopper
-
16505073649 Orange Handle. Model-Gray-OrangeOrange Handle. Model-Gray-Orange
-
16505070963 Black Handle. Model-Black-BlackBlack Handle. Model-Black-Black
-
17505071781 CushionCushion
-
18505071812 RetainerRetainer
-
19505072064 BushingBushing
-
20506133300 SpacerSpacer
-
21505072133 RetainerRetainer
-
22505072143 BushingBushing
-
23505072208 BushingBushing
-
24505072250 BushingBushing
-
25505072392 WasherWasher
-
26505072394 Stabilisator LeverStabilisator Lever
-
27505072448 O-RingO-Ring
-
28505072602 StabilisatorStabilisator
-
29505072634 Wear PlateWear Plate
-
30505072690 Leg CushionLeg Cushion
-
31505072753 Adjustment Knob. EuropeAdjustment Knob. Europe
-
32505072855 Deep Black RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Gray-OrangeDeep Black RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Gray-Orange
-
32505072854 Deep Black LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Gray-OrangeDeep Black LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Gray-Orange
-
32505073227 Black DS Ski 2. Model-EuropeBlack DS Ski 2. Model-Europe
-
32505072855 Deep Black RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-BlackDeep Black RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-Black
-
32505072854 Deep Black LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-BlackDeep Black LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-Black
-
33505073651 Orange HandleOrange Handle
-
34860201044 Carbide Runner KitCarbide Runner Kit
-
35505073412 LH Upper Arm 42''LH Upper Arm 42''
-
35505073416 RH Upper Arm 42''RH Upper Arm 42''
-
37505073420 LH Lower Arm 42''LH Lower Arm 42''
-
37505073426 RH Lower Arm 42''RH Lower Arm 42''
-
39505073475 Black LH Ski LegBlack LH Ski Leg
-
39505073477 Black RH Ski LegBlack RH Ski Leg
-
41250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
42505072209 BushingBushing
-
43250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
44505072204 Double Ball Joint LinkDouble Ball Joint Link
-
46505072682 Lower Ball JointLower Ball Joint
-
47232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
48505072913 Upper Ball JointUpper Ball Joint
-
51505073555 Front Shock. Includes 51 To 51e, EuropeFront Shock. Includes 51 To 51e, Europe
-
51a414888312 O-Ring. EuropeO-Ring. Europe
-
51b503189308 Piston Ring. EuropePiston Ring. Europe
-
51c505070398 Air Valve. EuropeAir Valve. Europe
-
51d505070399 Screw. EuropeScrew. Europe
-
51e505070400 O-Ring. EuropeO-Ring. Europe
-
52505072761 Deep Black Spring. EuropeDeep Black Spring. Europe
-
52a503192608 Spring Stopper. EuropeSpring Stopper. Europe
-
53205031060 Socket Screw M3 X 10. EuropeSocket Screw M3 X 10. Europe
-
55505073699 Front ShockFront Shock
-
56505073332 Deep Black SpringDeep Black Spring
-
57706200785 CapCap
-
58706200881 Spring StopperSpring Stopper
-
60503192496 WasherWasher
-
61233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
62505072594 Ski StopperSki Stopper
-
63233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
