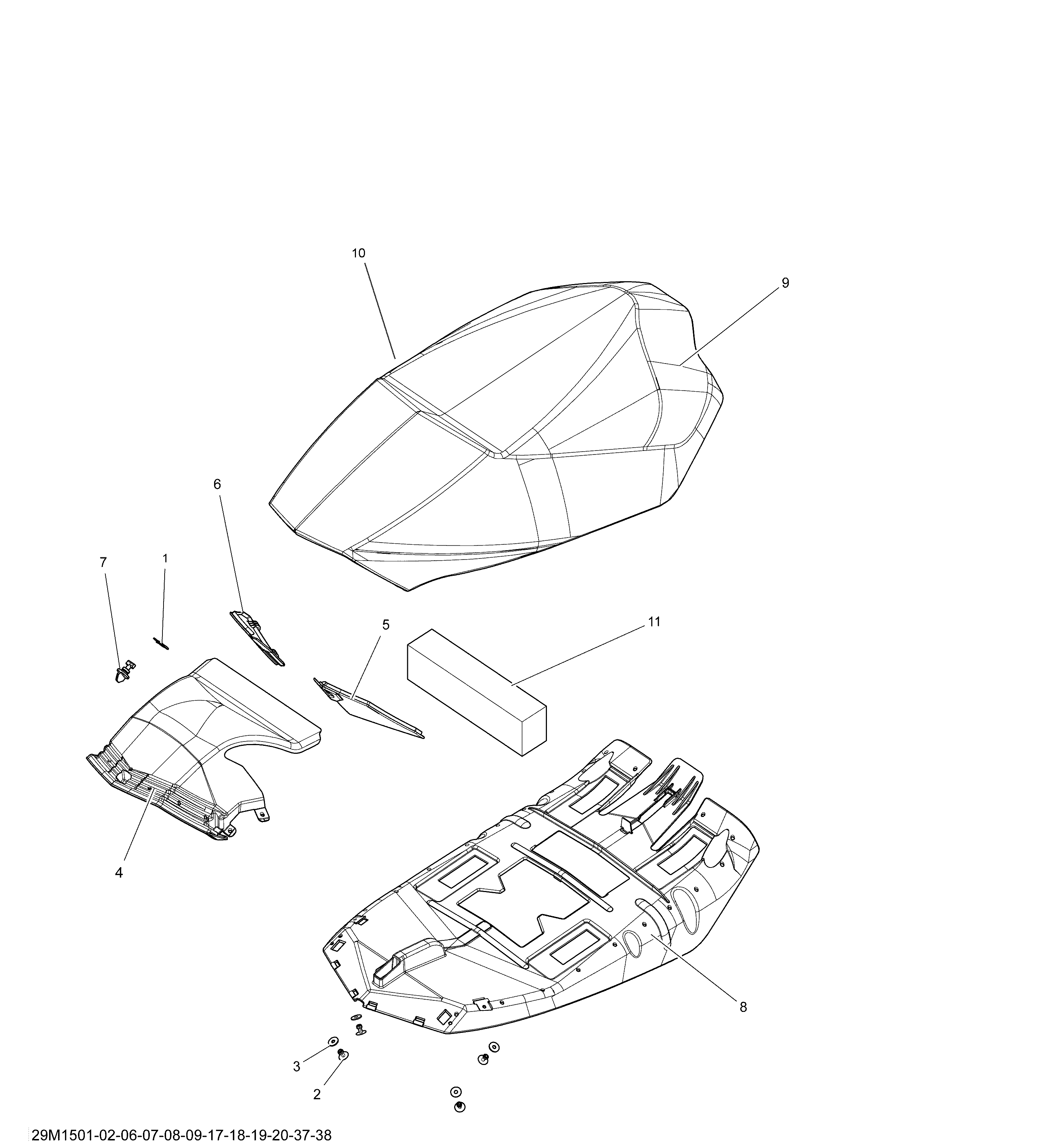

09- Seat _29M1538 для BRP Ski-Doo Renegade Adrenaline 900ACE XS137 - 2015
-
№АртикулНазвание
-
1250400055 Hairpin ClipHairpin Clip
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3391301600 WasherWasher
-
4510005413 Seat BoxSeat Box
-
5510005414 RH DoorRH Door
-
6510005415 LH DoorLH Door
-
7510005416 LockLock
-
8510005417 Seat BaseSeat Base
-
9510005477 Seat FoamSeat Foam
-
10510005960 Seat Cover. Model-Gray-OrangeSeat Cover. Model-Gray-Orange
-
10510005962 Seat Cover. Model-Black-BlackSeat Cover. Model-Black-Black
-
11510005504 FoamFoam
