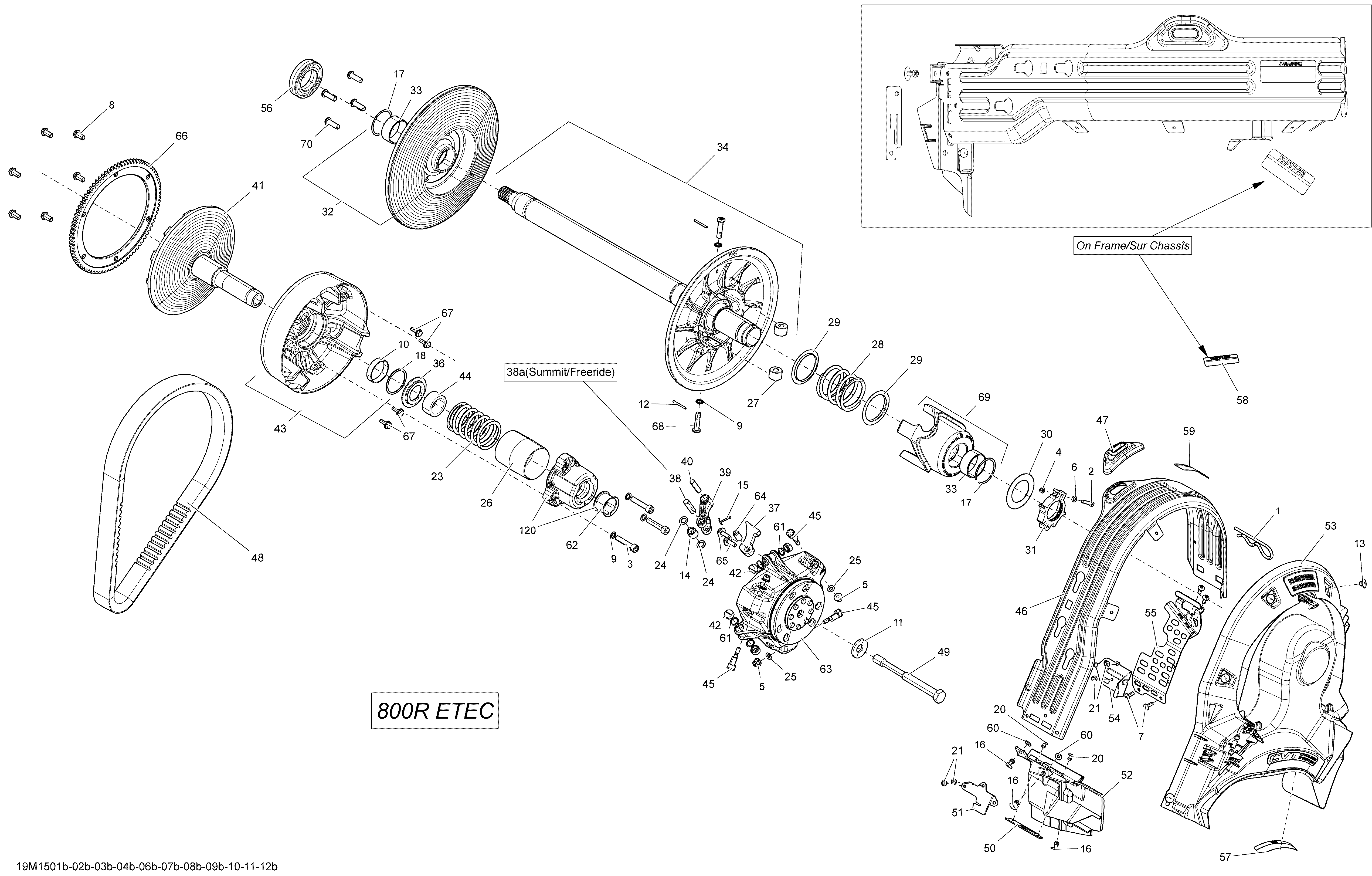

05- Pulley System _19M1504b для BRP Ski-Doo Renegade XRS 800RETEC XS-RS137 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234051410 Flat Washer M5Flat Washer M5
-
7250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
8250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
9250200009 Lock Washer 8 mmLock Washer 8 mm
-
10417223086 BushingBushing
-
11250200144 Conical Spring Washer M14Conical Spring Washer M14
-
12250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
13293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
14417222947 RollerRoller
-
15250400060 Cotter PinCotter Pin
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293370049 CirclipCirclip
-
18293370071 CirclipCirclip
-
20390909100 Avex RivetAvex Rivet
-
21390909200 Avex RivetAvex Rivet
-
23414817700 Spring, Blue/green. Model-North AmericaSpring, Blue/green. Model-North America
-
23415034900 Spring, Violet/blue. Model-EuropeSpring, Violet/blue. Model-Europe
-
24417004302 Stopper WasherStopper Washer
-
25417005600 WasherWasher
-
26417009205 GuardGuard
-
27417127016 RollerRoller
-
28417127137 SpringSpring
-
29417127116 Swivel AbutmentSwivel Abutment
-
30417127155 WasherWasher
-
31415129604 Calibration Ass'yCalibration Ass'y
-
32417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
33417127318 BushingBushing
-
34417127387 Fix Flange Ass'yFix Flange Ass'y
-
36417222312 Spring SeatSpring Seat
-
37417222546 Ramp 414. Model-North AmericaRamp 414. Model-North America
-
37417222508 Ramp 413. Model-EuropeRamp 413. Model-Europe
-
38417222594 PinPin
-
39417222671 LeverLever
-
40417223164 Lever AxleLever Axle
-
41417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
42417223271 Slider ShoeSlider Shoe
-
43417223444 Sliding Flange Ass'ySliding Flange Ass'y
-
44417223471 BushingBushing
-
45417223501 Calibration ScrewCalibration Screw
-
46417300357 Belt GuardBelt Guard
-
47417300381 GuideGuide
-
48417300391 BeltBelt
-
49417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
50417300421 Reinforcement PlateReinforcement Plate
-
51417300423 Front BracketFront Bracket
-
52417300430 Front SupportFront Support
-
53417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
54417300445 StopperStopper
-
55417300448 Belt Guard BracketBelt Guard Bracket
-
56504152574 Ball BearingBall Bearing
-
57516005503 Decal, EnglishDecal, English
-
58516005507 RPM Sticker, EnglishRPM Sticker, English
-
59516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
60517225900 Flat WasherFlat Washer
-
61732401030 O-RingO-Ring
-
62417009204 BushingBushing
-
63417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
64250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
65250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
66417223739 Ring GearRing Gear
-
67250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
68417127294 Pivot StudPivot Stud
-
69417127325 Cam Ass'yCam Ass'y
-
70250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
120417222759 Spring Cover Ass'ySpring Cover Ass'y
