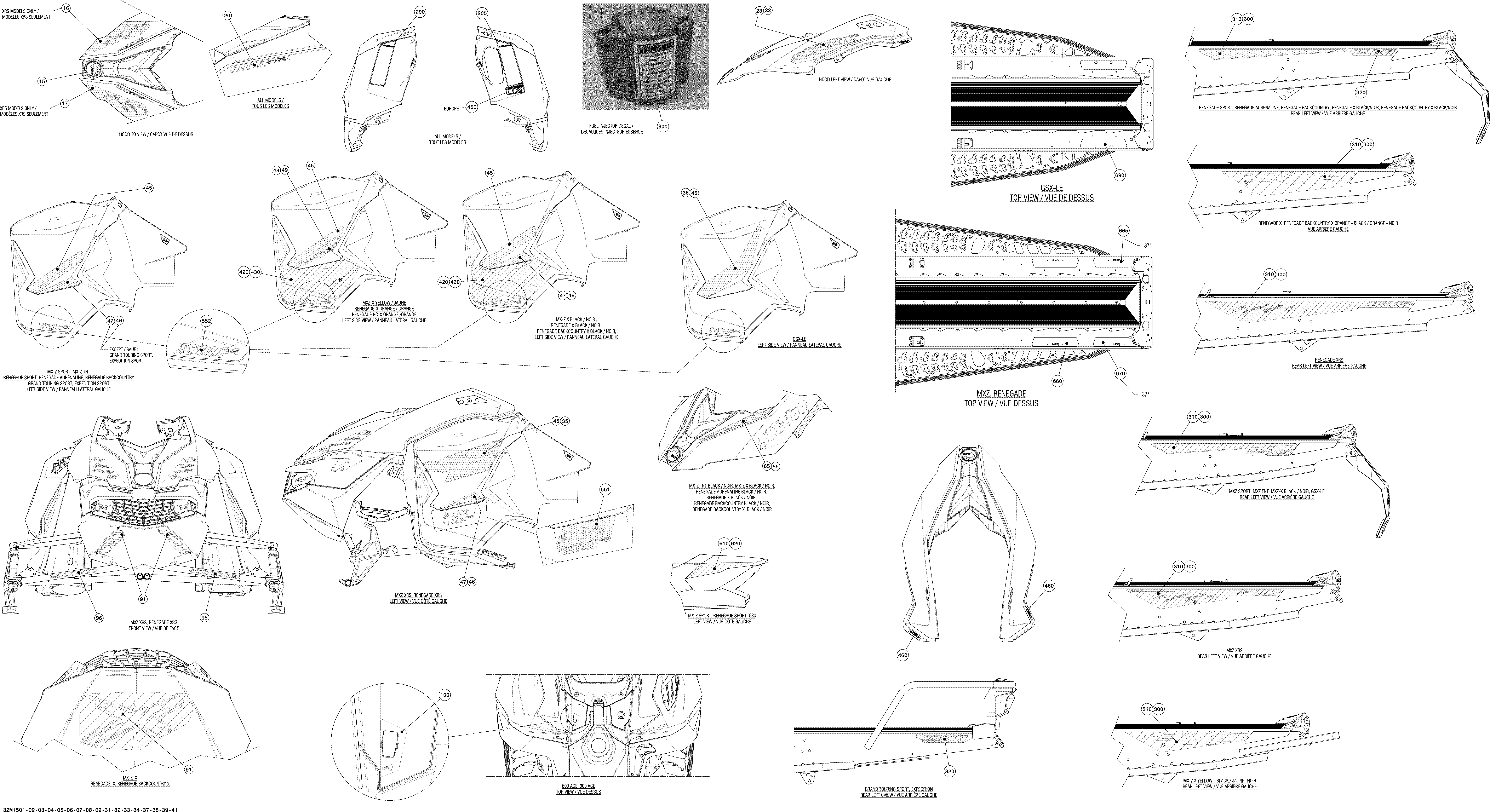

09- Decals _32M1504 для BRP Ski-Doo Renegade XRS 800RETEC XS-RS137 - 2015
-
№АртикулНазвание
-
15219903609 Logo BRP, 68 mmLogo BRP, 68 mm
-
16516006421 RH Hood Decal. Model-Red-RedRH Hood Decal. Model-Red-Red
-
16516006918 RH Hood Decal. Model-Black-BlackRH Hood Decal. Model-Black-Black
-
17516006420 LH Hood Decal. Model-Red-RedLH Hood Decal. Model-Red-Red
-
17516006917 LH Hood Decal. Model-Black-BlackLH Hood Decal. Model-Black-Black
-
20516005992 Hood Decal, 800R E-TECHood Decal, 800R E-TEC
-
22516006366 RH Hood Decal, Ski-Doo. Model-Black-BlackRH Hood Decal, Ski-Doo. Model-Black-Black
-
22516006459 RH Hood Decal, Ski-Doo. Model-Red-RedRH Hood Decal, Ski-Doo. Model-Red-Red
-
23516006365 LH Hood Decal, Ski-Doo. Model-Black-BlackLH Hood Decal, Ski-Doo. Model-Black-Black
-
23516006458 LH Hood Decal, Ski-Doo. Model-Red-RedLH Hood Decal, Ski-Doo. Model-Red-Red
-
35516006423 RH Side Decal, Renegade XRS. Model-Red-RedRH Side Decal, Renegade XRS. Model-Red-Red
-
35516006922 RH Side Decal, Renegade XRS. Model-Black-BlackRH Side Decal, Renegade XRS. Model-Black-Black
-
45516006422 LH Side Decal, Renegade XRS. Model-Red-RedLH Side Decal, Renegade XRS. Model-Red-Red
-
45516006921 LH Side Decal, Renegade XRS. Model-Black-BlackLH Side Decal, Renegade XRS. Model-Black-Black
-
46516006796 RH Side DecalRH Side Decal
-
47516006795 LH Side DecalLH Side Decal
-
91516006430 Lower Hull Decal. Model-Red-RedLower Hull Decal. Model-Red-Red
-
91516006923 Lower Hull Decal. Model-Black-BlackLower Hull Decal. Model-Black-Black
-
95516006428 LH Decal, XRS. Model-Red-RedLH Decal, XRS. Model-Red-Red
-
95516006924 LH Decal, XRS. Model-Black-BlackLH Decal, XRS. Model-Black-Black
-
96516006429 RH Decal, XRS. Model-Red-RedRH Decal, XRS. Model-Red-Red
-
96516006925 RH Decal, XRS. Model-Black-BlackRH Decal, XRS. Model-Black-Black
-
200516005055 Warning Decal, SecurityWarning Decal, Security
-
205516005056 Warning Decal, SecurityWarning Decal, Security
-
300516006425 RH Frame Decal. Model-Red-RedRH Frame Decal. Model-Red-Red
-
300516006929 RH Frame Decal. Model-Black-BlackRH Frame Decal. Model-Black-Black
-
310516006424 LH Frame Decal. Model-Red-RedLH Frame Decal. Model-Red-Red
-
310516006928 LH Frame Decal. Model-Black-BlackLH Frame Decal. Model-Black-Black
-
450516005226 Warning Decal, PictogramWarning Decal, Pictogram
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
551516006427 Decal XPS. Model-Red-RedDecal XPS. Model-Red-Red
-
551516006930 Decal XPS. Model-Black-BlackDecal XPS. Model-Black-Black
-
660516006860 Rear Top Frame DecalRear Top Frame Decal
-
665516006859 RH Top Frame Decal, XS-XMRH Top Frame Decal, XS-XM
-
670516006858 LH Top Frame Decal, XS-XMLH Top Frame Decal, XS-XM
-
800516005583 Warning Decal, InjectorsWarning Decal, Injectors
