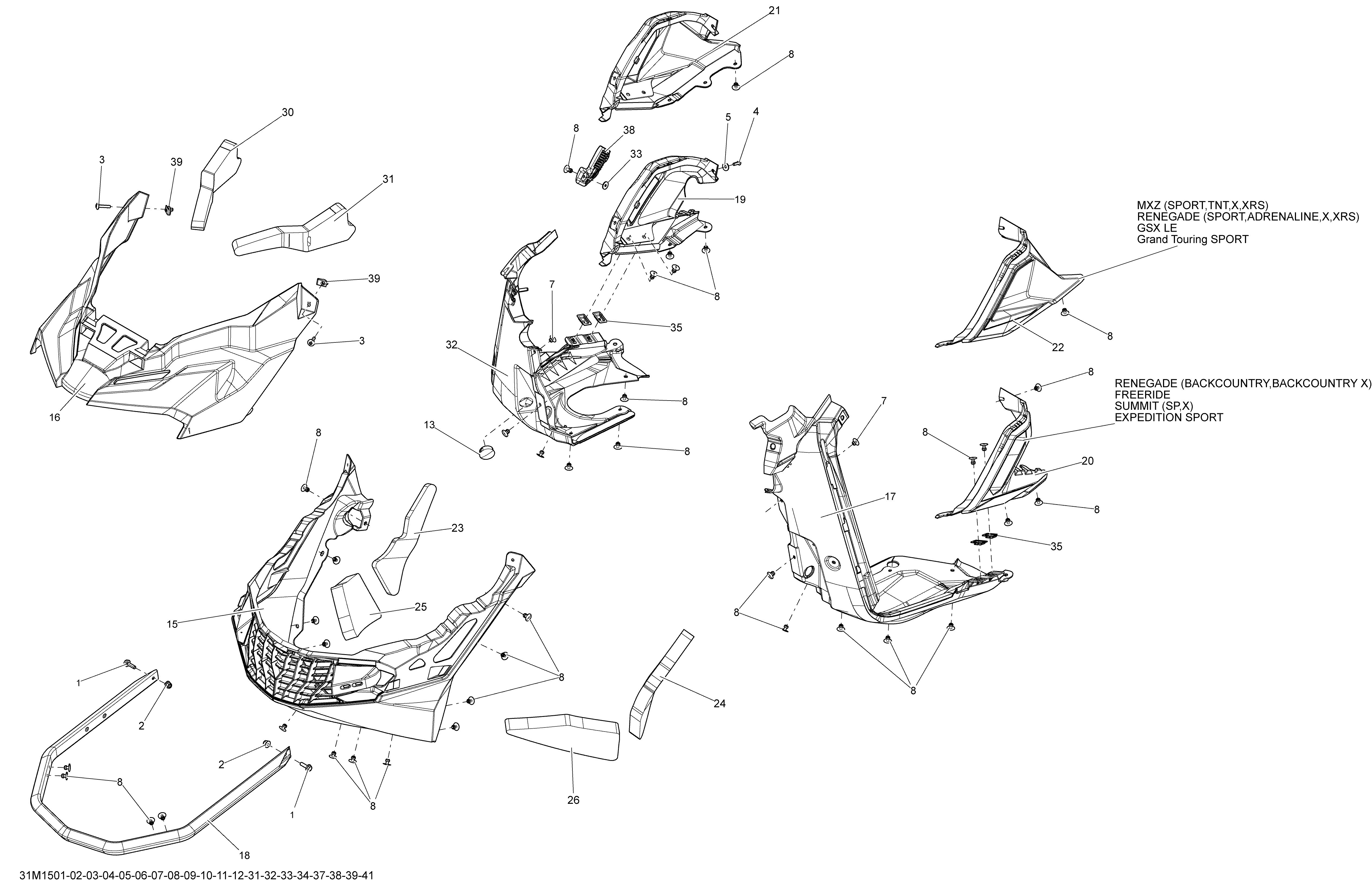

09- Bottom Pan _31M1504 для BRP Ski-Doo Renegade XRS 800RETEC XS-RS137 - 2015
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
4250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
5250200025 Washer M5Washer M5
-
7293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
8293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13414916600 Nylon CapNylon Cap
-
15502007172 Deep Black Front Bottom Pan. Model-Black-BlackDeep Black Front Bottom Pan. Model-Black-Black
-
15502007396 Yellow Front Bottom Pan. Model-Red-RedYellow Front Bottom Pan. Model-Red-Red
-
16502007173 Deep Black Bottom Pan Cap. Model-Black-BlackDeep Black Bottom Pan Cap. Model-Black-Black
-
16502007397 Yellow Bottom Pan Cap. Model-Red-RedYellow Bottom Pan Cap. Model-Red-Red
-
17502007175 Deep Black LH Bottom PanDeep Black LH Bottom Pan
-
18502007176 Black Front BumperBlack Front Bumper
-
21502007398 Red RH Side Bottom Pan Panel. Model-Red-RedRed RH Side Bottom Pan Panel. Model-Red-Red
-
21502007297 Deep Black RH Side Bottom Pan Panel. Model-Black-BlackDeep Black RH Side Bottom Pan Panel. Model-Black-Black
-
22502007399 Red LH Side Bottom Pan Panel. Model-Red-RedRed LH Side Bottom Pan Panel. Model-Red-Red
-
22502007298 Deep Black LH Side Bottom Pan Panel. Model-Black-BlackDeep Black LH Side Bottom Pan Panel. Model-Black-Black
-
23502007243 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
24502007244 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
25502007245 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
26502007246 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
30502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
31502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
32502007340 Deep Black RH Bottom PanDeep Black RH Bottom Pan
-
33517124300 WasherWasher
-
35517305109 Rivet PlateRivet Plate
-
38517305280 Stopper BumperStopper Bumper
-
39250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
