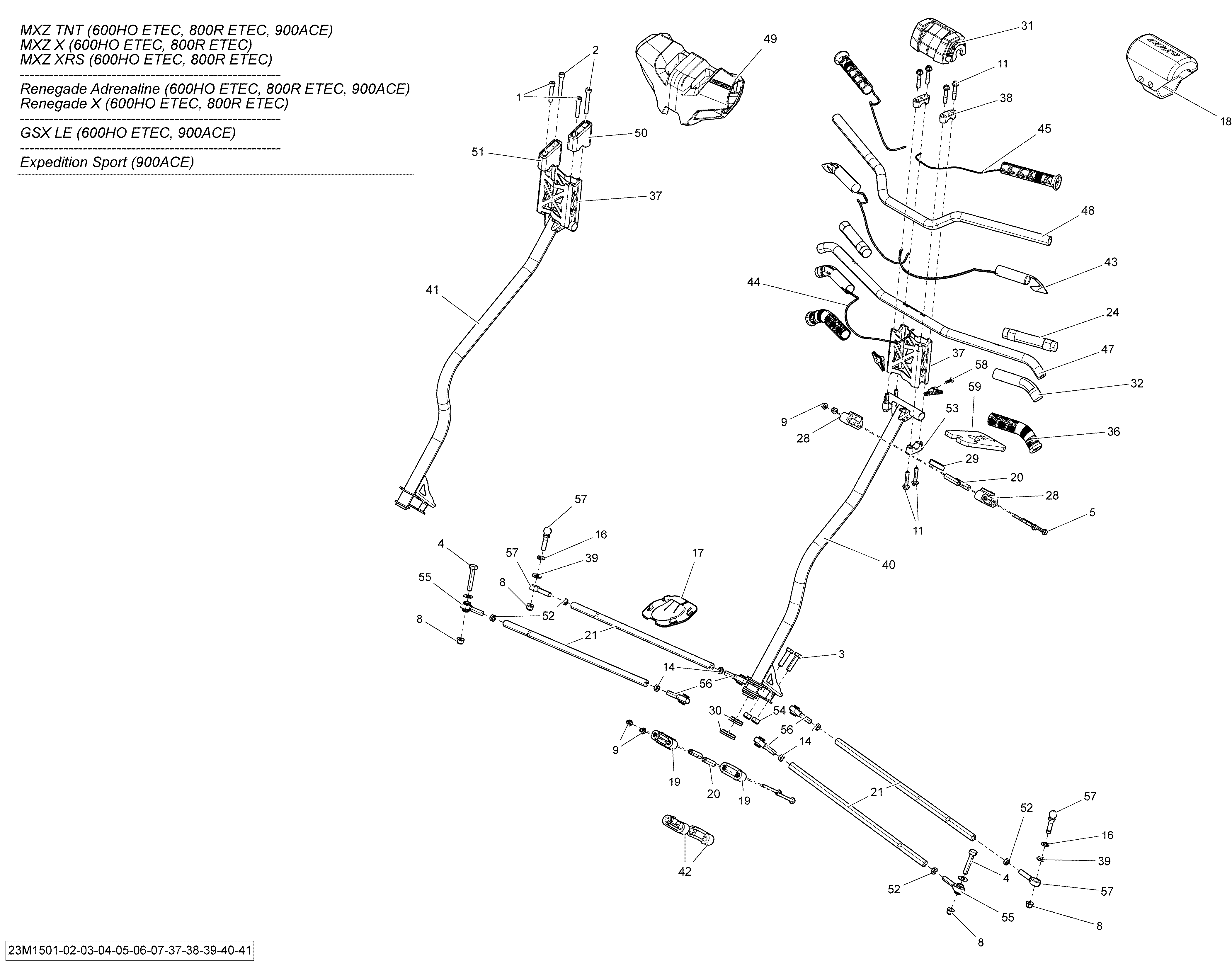

07- Steering _23M1504 для BRP Ski-Doo Renegade XRS 800RETEC XS-RS137 - 2015
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
5207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
8233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
14250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
16503192496 WasherWasher
-
17506152163 PlatePlate
-
18506152522 Steering PadSteering Pad
-
19506152217 Lower Half-HousingLower Half-Housing
-
20506152297 Housing BushingHousing Bushing
-
21506152496 Tie-RodTie-Rod
-
28506152508 Upper Half-HousingUpper Half-Housing
-
29506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
30506152518 Lower Vibration RingLower Vibration Ring
-
32506152548 InsulantInsulant
-
36506152560 Grip 148mmGrip 148mm
-
37506152616 Black Handlebar ExtensionBlack Handlebar Extension
-
38506152750 Steering SupportSteering Support
-
39506152582 WasherWasher
-
40506152584 Black Main TubeBlack Main Tube
-
43506152665 Heating Element 32 WATTHeating Element 32 WATT
-
47506152709 Clear Handle BarClear Handle Bar
-
52732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152751 Steering SupportSteering Support
-
54233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
56506152081 LH Thread Ball JointLH Thread Ball Joint
-
57506152684 RH Thread Ball JointRH Thread Ball Joint
