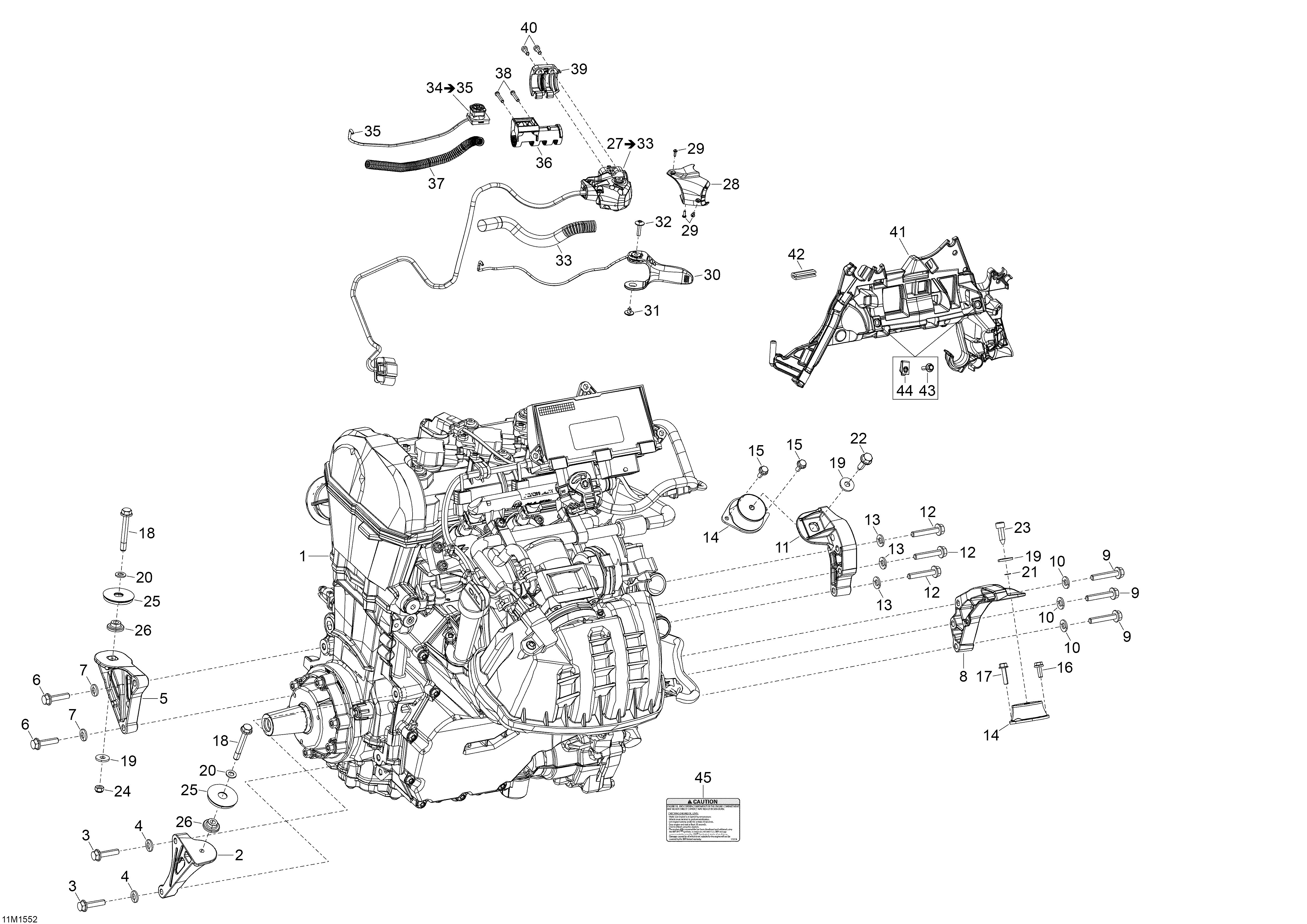

01- Engine And Engine Support _11M1552 для BRP Ski-Doo Skandic SWT 900 ACE - 2015
-
№АртикулНазвание
-
2512060660 Rear Support, PTORear Support, PTO
-
3207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5512060661 Front Support, PTOFront Support, PTO
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7250200157 Conical Spring Washer M8Conical Spring Washer M8
-
8512060894 Rear Support, MAGRear Support, MAG
-
9207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
10234281474 Conical Spring Washer M8Conical Spring Washer M8
-
11512060663 Front Support, MAGFront Support, MAG
-
12207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
13250200157 Conical Spring Washer M8Conical Spring Washer M8
-
14512060729 Rubber MountRubber Mount
-
15207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
16207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
17207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
18207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
19503183200 Washer, YellowWasher, Yellow
-
20250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
21293300123 O-RingO-Ring
-
22250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
23250000639 Cone Screw, M8 X 25Cone Screw, M8 X 25
-
24232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
25512060826 StopperStopper
-
26512060285 SpacerSpacer
-
27512061017 Housing Ass'y. Includes 27 To 33Housing Ass'y. Includes 27 To 33
-
28512060862 CapCap
-
29250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
30415130047 Handle Assembly kitHandle Assembly kit
-
32250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
33515177716 Protector TubeProtector Tube
-
34515177362 Kill Switch. Includes 34 To 35Kill Switch. Includes 34 To 35
-
35515175232 Male TerminalMale Terminal
-
36512060844 SupportSupport
-
37515177716 Protector TubeProtector Tube
-
38250000263 Torx Screw #8-18Torx Screw #8-18
-
39512060987 Front HousingFront Housing
-
40250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
41512060994 Module SupportModule Support
-
42512060955 Protect TrimProtect Trim
-
43250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
44207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
45516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
