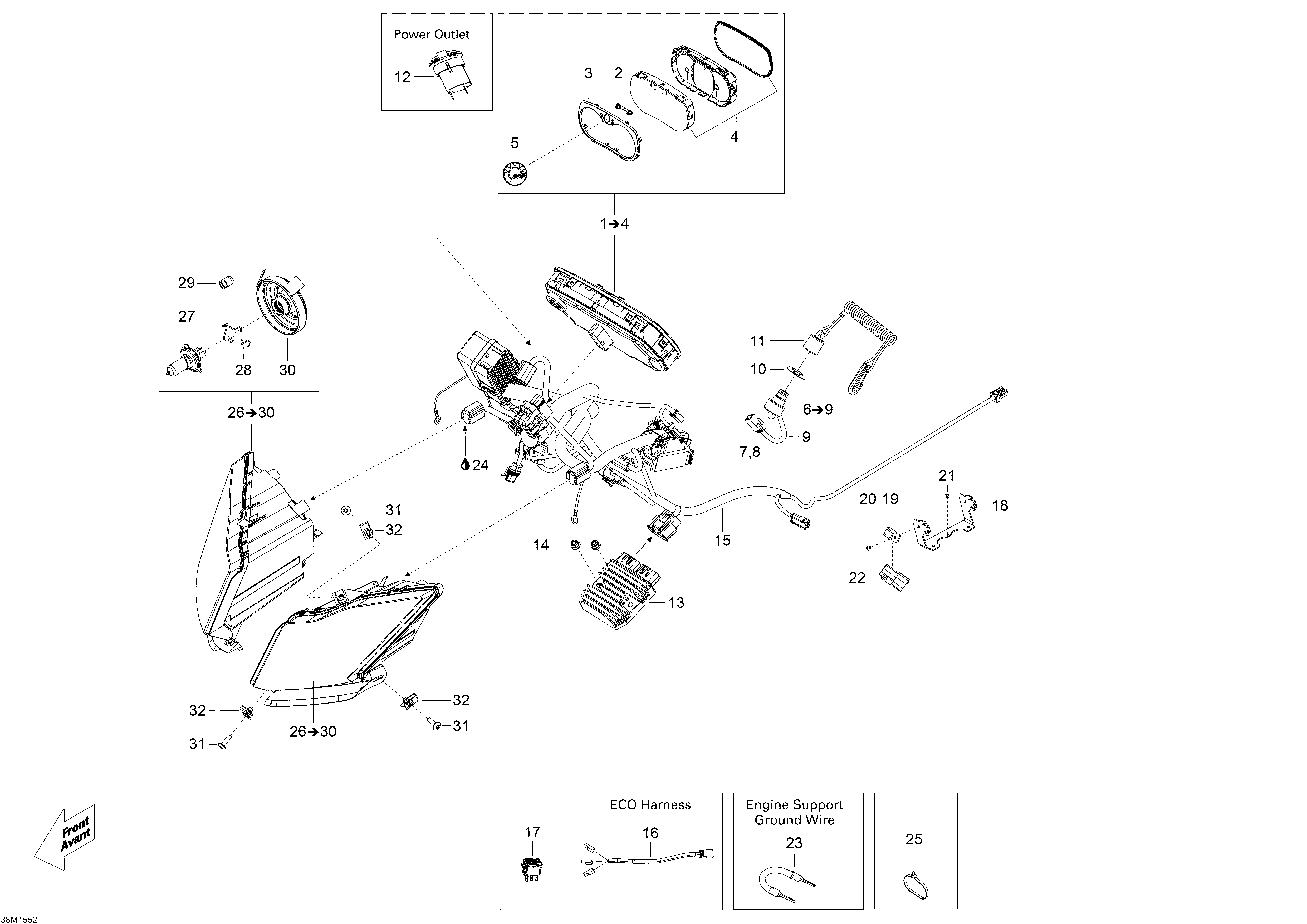

10- Electrical System _38M1552 для BRP Ski-Doo Skandic SWT 900 ACE - 2015
-
№АртикулНазвание
-
1515177845 Speedometer Ass'y. Inclus 1 To 4Speedometer Ass'y. Inclus 1 To 4
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS Switch. Inclus 6 To 9DESS Switch. Inclus 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515177057 DESS CapDESS Cap
-
11860200907 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12710001248 Outlet DCOutlet DC
-
13515177325 Voltage RegulatorVoltage Regulator
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15515177482 Main HarnessMain Harness
-
16515177568 ECO HarnessECO Harness
-
17515177569 ECO Rocker SwitchECO Rocker Switch
-
18515177073 Fusebox SupportFusebox Support
-
19270000141 ClipClip
-
20293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
23515176883 Ground WireGround Wire
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
25293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
26517304194 RH Headlamp Ass'y. Inclus 26 To 30RH Headlamp Ass'y. Inclus 26 To 30
-
26517304195 LH Headlamp Ass'y. Inclus 26 To 30LH Headlamp Ass'y. Inclus 26 To 30
-
27515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
29515176498 CapCap
-
30515176499 CoverCover
-
31250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
32250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
