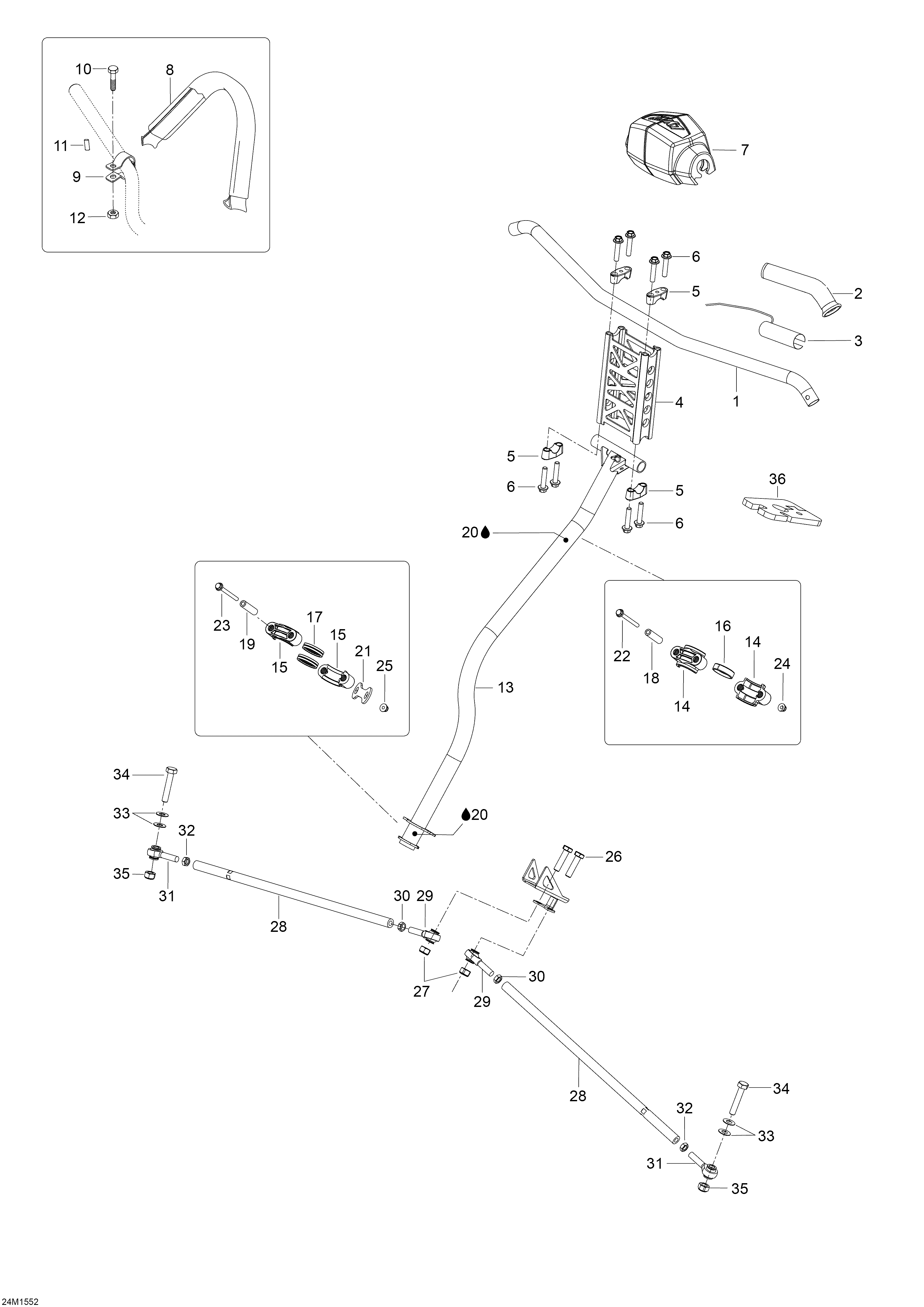

07- Steering System _24M1552 для BRP Ski-Doo Skandic SWT 900 ACE - 2015
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film, 25WHeated Film, 25W
-
4860200821 Extension KitExtension Kit
-
5506152750 Steering SupportSteering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152541 Steering PadSteering Pad
-
8506152115 Strap Ass'yStrap Ass'y
-
9506152536 Black Support PlateBlack Support Plate
-
10207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11506152156 BushingBushing
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13506152585 Black Main TubeBlack Main Tube
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152217 Lower Half-HousingLower Half-Housing
-
16506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
17506152518 Lower Vibration RingLower Vibration Ring
-
18506152297 Housing BushingHousing Bushing
-
19506152388 Lower Housing BushingLower Housing Bushing
-
21506152389 Stopper PlateStopper Plate
-
22207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
23207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152436 Tie RodTie Rod
-
29506152081 LH Thread Ball JointLH Thread Ball Joint
-
30250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
31506152019 RH Thread Ball JointRH Thread Ball Joint
-
32732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
33506152194 WasherWasher
-
34207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
36506152404 CushionCushion
