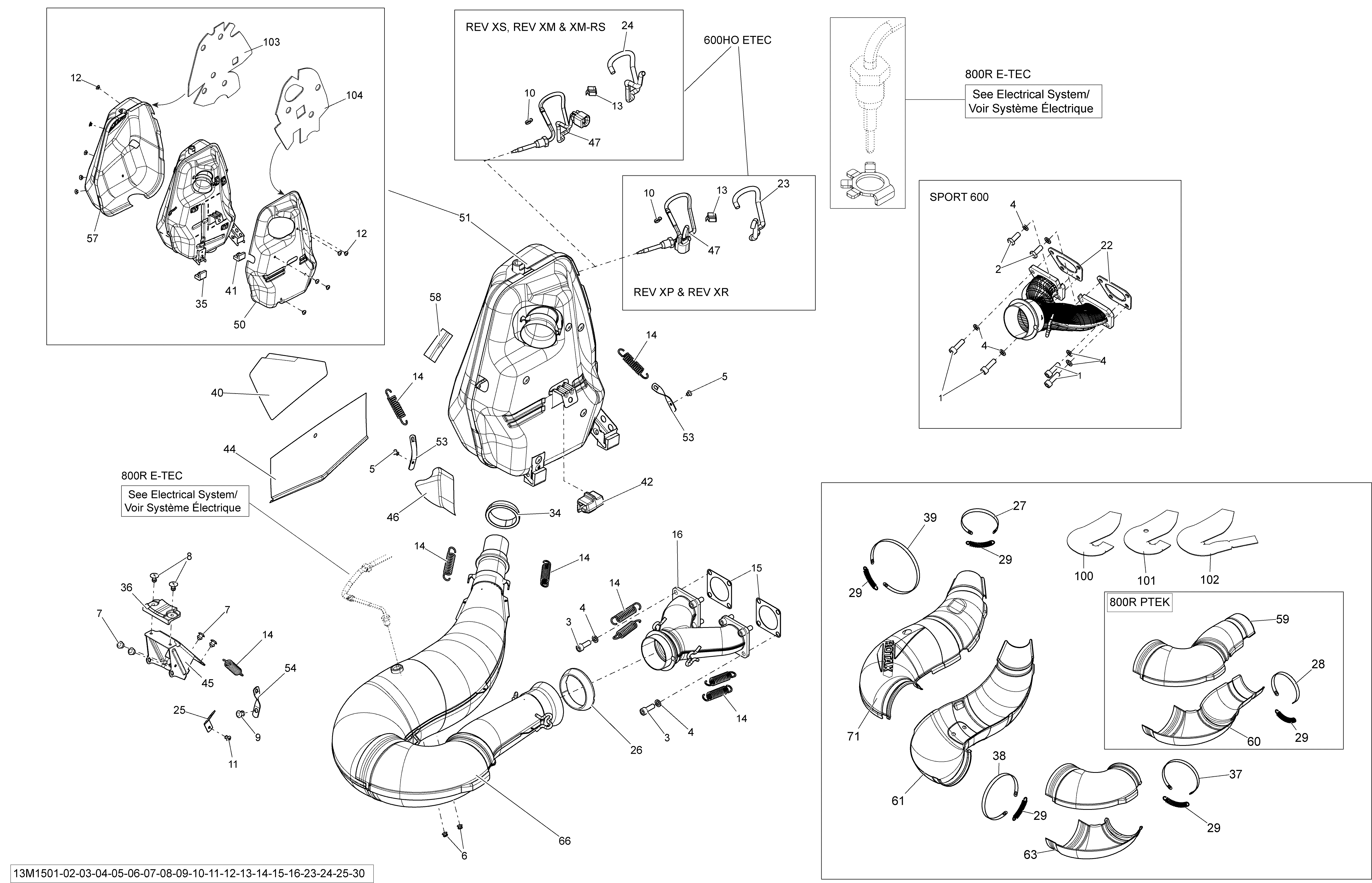

01- Exhaust System _13M1530 для BRP Ski-Doo Tundra Xtreme 600HOETEC XU-154 - 2015
-
№АртикулНазвание
-
5293150027 Avdel RivetAvdel Rivet
-
6293150091 Henrob RivetHenrob Rivet
-
7293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
8293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
10293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
13414227300 ClipClip
-
14415107100 SpringSpring
-
16420673420 Exhaust ManifoldExhaust Manifold
-
21420850552 GasketGasket
-
25514053393 Spring BracketSpring Bracket
-
26514053487 Exhaust GasketExhaust Gasket
-
27514053499 Retaining StrapRetaining Strap
-
29514053643 SpringSpring
-
33514053953 WasherWasher
-
34514054174 Exhaust GasketExhaust Gasket
-
35514054274 Lower StopperLower Stopper
-
36514054275 BumperBumper
-
37514054408 Retaining StrapRetaining Strap
-
38514054409 Retaining StrapRetaining Strap
-
39514054410 Retaining StrapRetaining Strap
-
41514054496 Lower StopperLower Stopper
-
42514054606 Upper StopperUpper Stopper
-
43514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
-
44514054745 Reflective SheetReflective Sheet
-
45514054767 Exhaust Muffler SupportExhaust Muffler Support
-
47514054870 Temperature SensorTemperature Sensor
-
50514054967 LH DeflectorLH Deflector
-
51514054970 Muffler Ass'y. 600HO ETECMuffler Ass'y. 600HO ETEC
-
53514054974 Spring BracketSpring Bracket
-
56514054985 RH DeflectorRH Deflector
-
61514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
62514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
63514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
64514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
70514055066 Exhaust Tuned PipeExhaust Tuned Pipe
-
100514054487 Insulating WoolInsulating Wool
-
103514054711 RH Insulating WoolRH Insulating Wool
-
104514054299 LH Insulating WoolLH Insulating Wool
