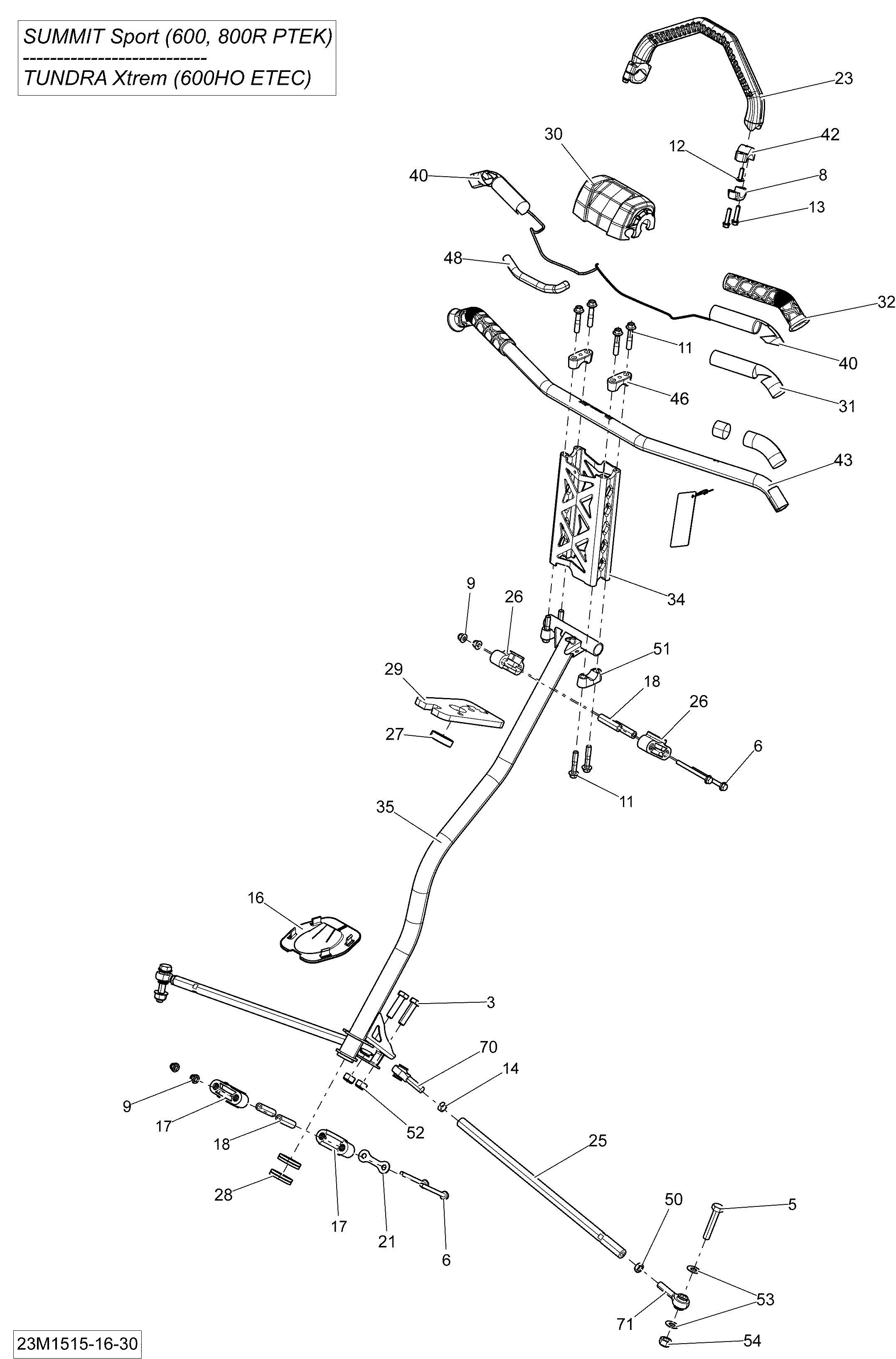

07- Steering _23M1530 для BRP Ski-Doo Tundra Xtreme 600HOETEC XU-154 - 2015
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
5207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
6207667086 Hex. Flanged Screw M6 x 70. M6Hex. Flanged Screw M6 x 70. M6
-
6207686534 Hex. Flanged Screw M8 x 65. M8Hex. Flanged Screw M8 x 65. M8
-
8219800081 ClampClamp
-
9233261416 Elastic Flanged Nut M6. M6Elastic Flanged Nut M6. M6
-
9233281414 Hex. Flanged Elastic Nut M8. M8Hex. Flanged Elastic Nut M8. M8
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
12250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
13250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
17506152588 Lower Half-HousingLower Half-Housing
-
18506152297 Housing Bushing. Upper HousingHousing Bushing. Upper Housing
-
18506152388 Lower Housing Bushing. Lower HousingLower Housing Bushing. Lower Housing
-
21506152389 Stopper PlateStopper Plate
-
23506152460 Moulding StrapMoulding Strap
-
25506152377 Tie RodTie Rod
-
26506152508 Upper Half-HousingUpper Half-Housing
-
27506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
28506152518 Lower Vibration RingLower Vibration Ring
-
29506152476 CushionCushion
-
30506152541 Steering PadSteering Pad
-
31506152548 InsulantInsulant
-
32506152560 Grip 148mmGrip 148mm
-
34506152569 Steering ExtensionSteering Extension
-
35506152584 Black Main TubeBlack Main Tube
-
40506152758 Heating Element 32 WattHeating Element 32 Watt
-
42506152703 Black Support PlateBlack Support Plate
-
43506152709 Clear Handle BarClear Handle Bar
-
46506152750 Steering SupportSteering Support
-
48515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
50732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
51506152751 Steering SupportSteering Support
-
52233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
53506152582 WasherWasher
-
54233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
70506152081 LH Thread Ball JointLH Thread Ball Joint
-
71506152019 RH Thread Ball JointRH Thread Ball Joint
