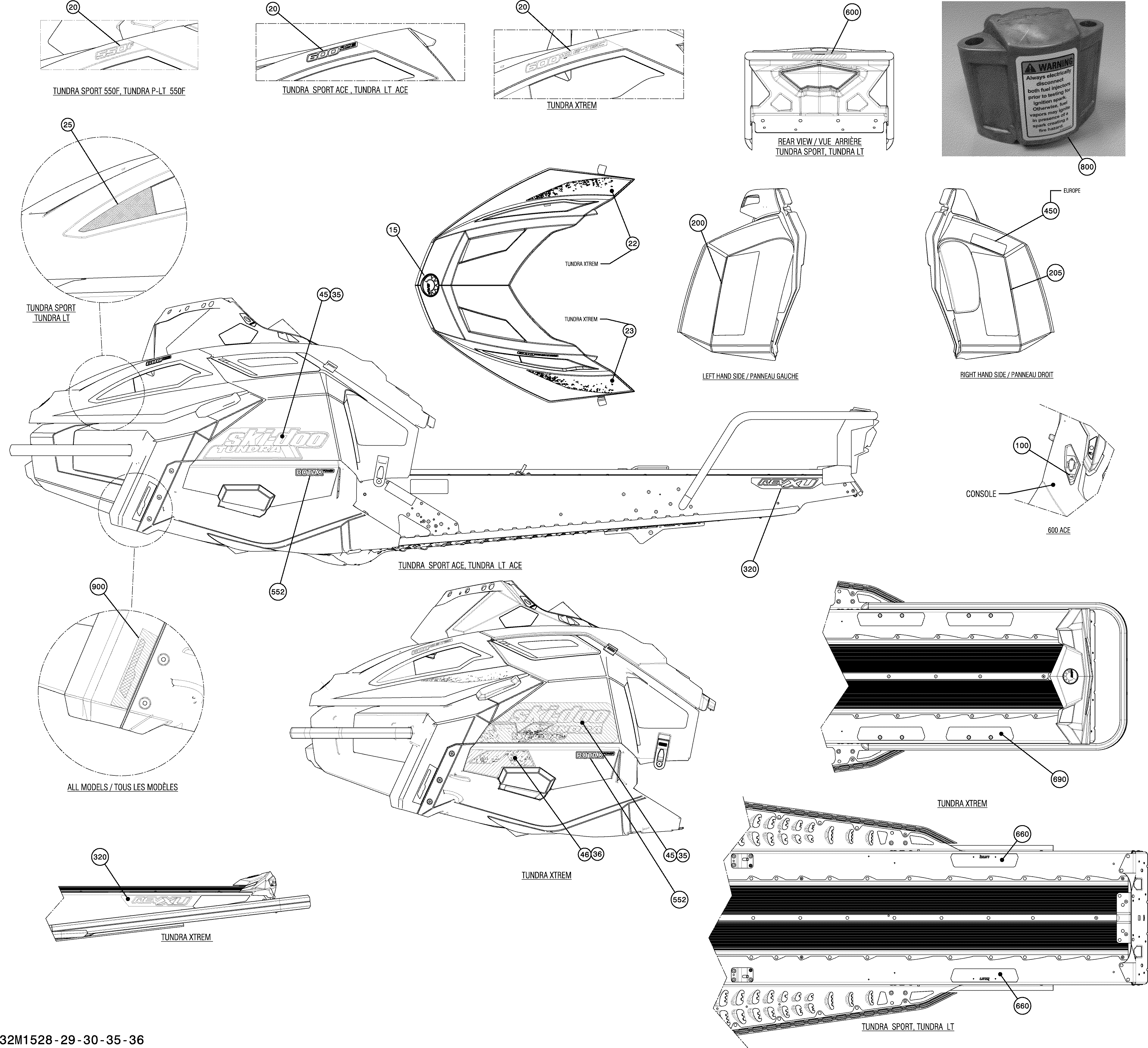

09- Decals _32M1530 для BRP Ski-Doo Tundra Xtreme 600HOETEC XU-154 - 2015
-
№АртикулНазвание
-
15219903609 Logo BRP, 68 mmLogo BRP, 68 mm
-
20516006152 Hood Decal, 600 HO E-TECHood Decal, 600 HO E-TEC
-
22516006769 RH Hood DecalRH Hood Decal
-
23516006768 LH Hood DecalLH Hood Decal
-
35516006762 RH Side Decal, Tundra XtremRH Side Decal, Tundra Xtrem
-
36516006764 RH Hull Decal, XtremRH Hull Decal, Xtrem
-
45516006761 LH Side Decal, Tundra XtremLH Side Decal, Tundra Xtrem
-
46516006763 LH Hull Decal, XtremLH Hull Decal, Xtrem
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
320516006770 Decal, REV XUDecal, REV XU
-
450516005226 Warning Decal, PictogramWarning Decal, Pictogram
-
552516005984 Decal, Rotax PowerDecal, Rotax Power
-
690516005172 Frame Top DecalFrame Top Decal
-
800516005583 Warning Decal, InjectorsWarning Decal, Injectors
-
900516005229 Decal, LTS SuspensionDecal, LTS Suspension
