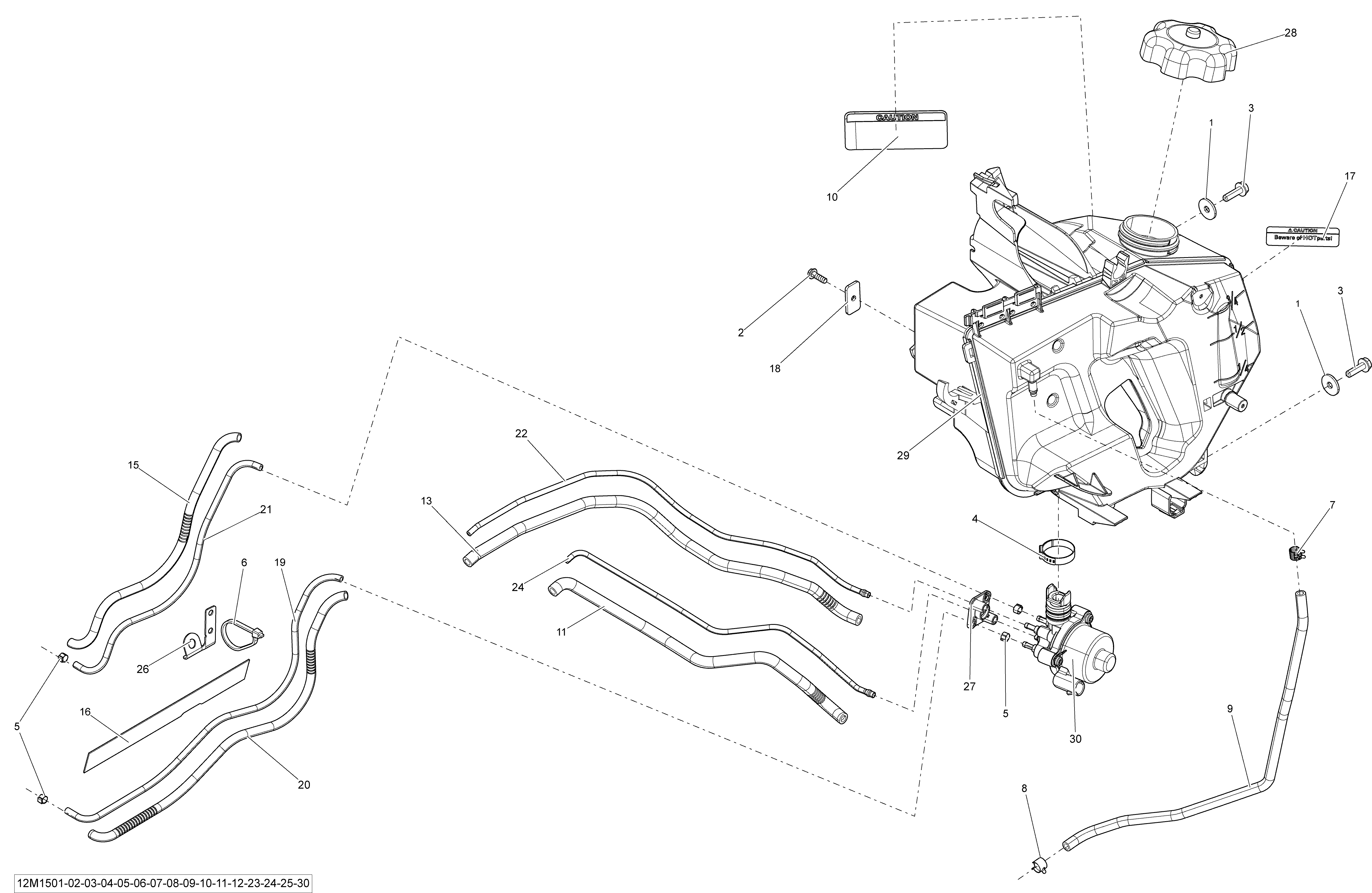

02- Oil System _12M1530 для BRP Ski-Doo Tundra Xtreme 600HOETEC XU-154 - 2015
-
№АртикулНазвание
-
1224061201 Flat WasherFlat Washer
-
2241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
3250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
4293650099 Crimp ClampCrimp Clamp
-
5293650100 Oetiker ClampOetiker Clamp
-
6293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
7414420700 Spring ClampSpring Clamp
-
8414554800 Spring ClampSpring Clamp
-
9415080200 Hose, PolyurethaneHose, Polyurethane
-
10516006689 Notice Decal, OilNotice Decal, Oil
-
11515175442 Tubing 6 mmTubing 6 mm
-
13515175442 Tubing 6 mmTubing 6 mm
-
15515175442 Tubing 6 mmTubing 6 mm
-
16516004648 Protection DecalProtection Decal
-
17516005280 Caution Decal, Hot Parts. TUNDRACaution Decal, Hot Parts. TUNDRA
-
18519000179 BracketBracket
-
19519000182 Hose 3.5 mmHose 3.5 mm
-
20515175442 Tubing 6 mmTubing 6 mm
-
21519000182 Hose 3.5 mmHose 3.5 mm
-
22519000184 Hose 2.5 mmHose 2.5 mm
-
24519000184 Hose 2.5 mmHose 2.5 mm
-
26519000245 BracketBracket
-
27519000271 BracketBracket
-
28519000273 CapCap
-
29519000299 Oil TankOil Tank
-
30519000305 Oil PumpOil Pump
