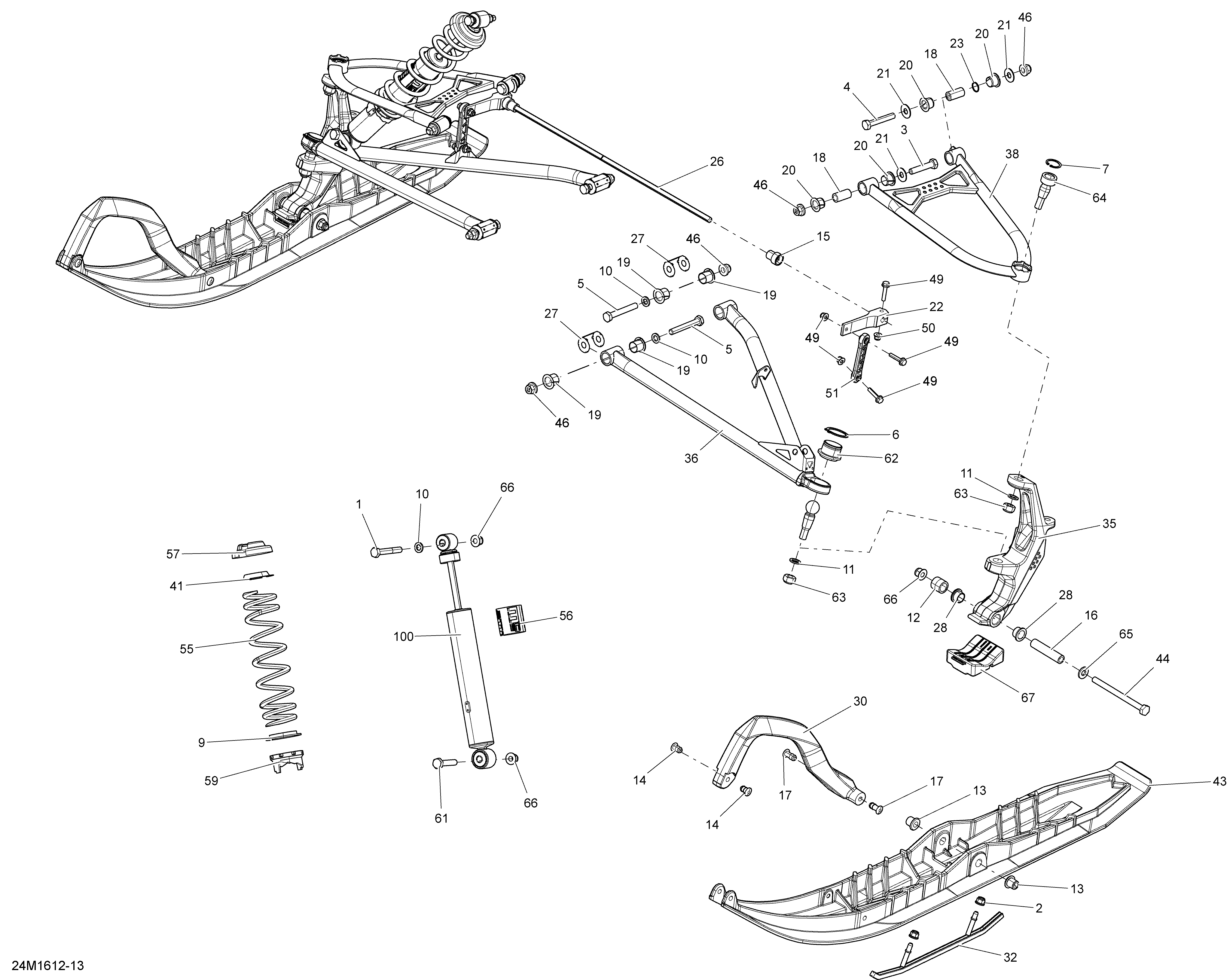

07- Front Suspension And Ski для BRP Ski-Doo EXPEDITION - SPORT 4-STROKE - 2016
-
№АртикулНазвание
-
1207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
4250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
5250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
6293370035 CirclipCirclip
-
7293370070 CirclipCirclip
-
9503187500 Spring GuideSpring Guide
-
10503189564 WasherWasher
-
11503192491 WasherWasher
-
12503193651 SpacerSpacer
-
13505071781 CushionCushion
-
14505071812 RetainerRetainer
-
15505072064 BushingBushing
-
16506133300 SpacerSpacer
-
17505072133 RetainerRetainer
-
18505072143 BushingBushing
-
19505072208 BushingBushing
-
20505072250 BushingBushing
-
21505072392 WasherWasher
-
22505072394 Stabilisator LeverStabilisator Lever
-
23505072448 O-RingO-Ring
-
26505072602 StabilisatorStabilisator
-
27505072634 Wear PlateWear Plate
-
28505072690 Leg CushionLeg Cushion
-
30505072976 Black HandleBlack Handle
-
32860201044 Carbide Runner KitCarbide Runner Kit
-
35505073559 White LH Ski LegWhite LH Ski Leg
-
35505073560 White RH Ski LegWhite RH Ski Leg
-
36505072498 Black LH Lower ArmBlack LH Lower Arm
-
36505072497 Black RH Lower ArmBlack RH Lower Arm
-
38505073468 LH Upper Arm 39''LH Upper Arm 39''
-
38505073469 RH Upper Arm 39''RH Upper Arm 39''
-
41706200785 CapCap
-
57706200881 Spring StopperSpring Stopper
-
43505073227 Black DS Ski 2Black DS Ski 2
-
44250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
46250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
50233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51505072204 Double Ball Joint LinkDouble Ball Joint Link
-
55505072518 Full Moon Spring. 900 ACE Model EuropeFull Moon Spring. 900 ACE Model Europe
-
55505072897 Full Moon Spring. 600 ACE ModelFull Moon Spring. 600 ACE Model
-
55505073521 Full Moon Spring. 900 ACE Model North AmericaFull Moon Spring. 900 ACE Model North America
-
56516005533 Shock Decal, HPG. EuropeShock Decal, HPG. Europe
-
56516005535 Shock Decal, Mc. Except EuropeShock Decal, Mc. Except Europe
-
59505073625 Adjustment CamAdjustment Cam
-
61207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
62505073636 Ball JointBall Joint
-
63232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
64505072913 Upper Ball JointUpper Ball Joint
-
65503192496 WasherWasher
-
66233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
67505072594 Ski StopperSki Stopper
-
100505073139 Front Shock. EuropeFront Shock. Europe
-
100505073181 Front Shock. Except EuropeFront Shock. Except Europe
