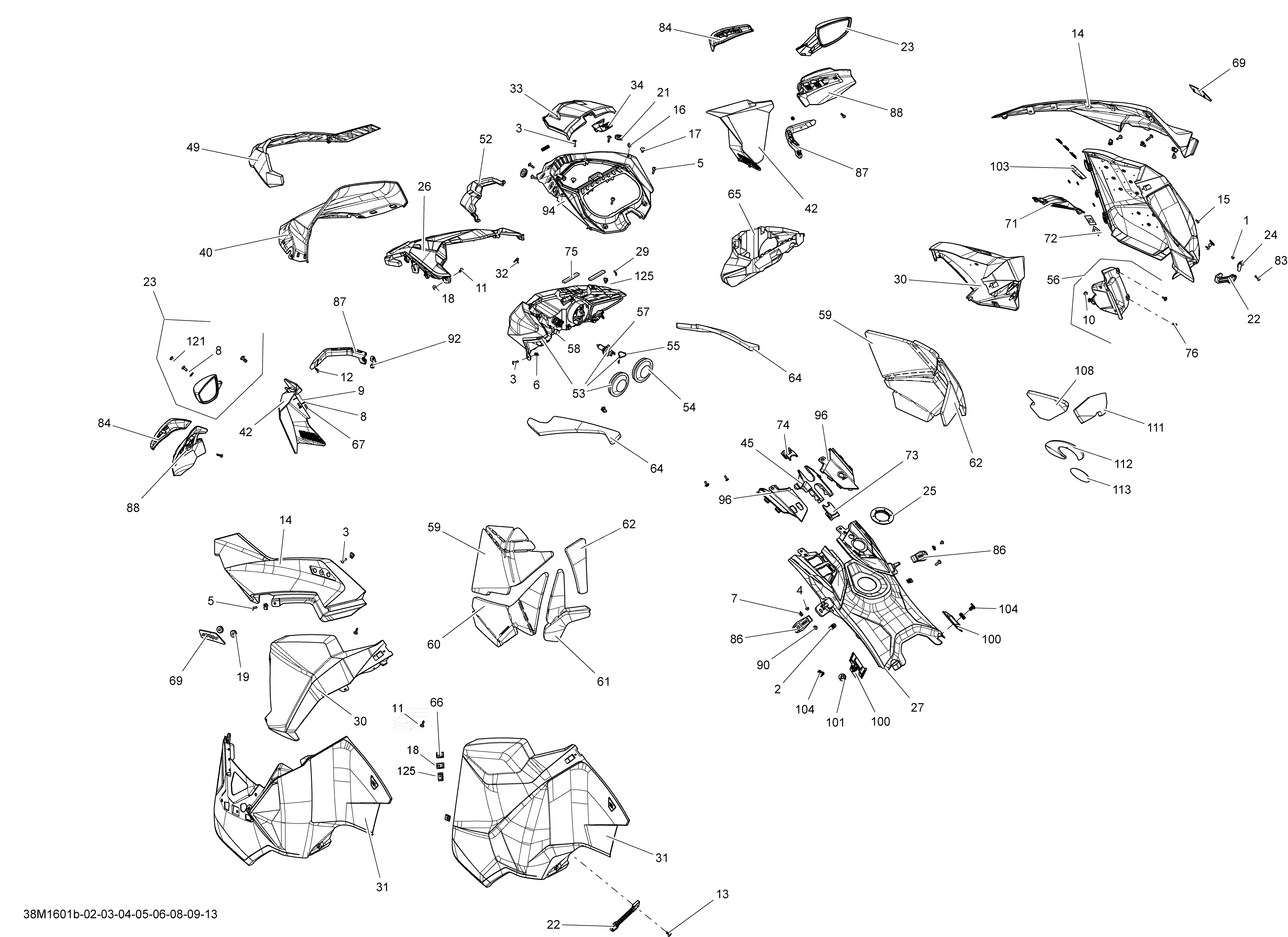

09- Hood для BRP Ski-Doo EXPEDITION - SPORT 4-STROKE - 2016
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
3250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
5250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
6250100035 Jack Nut M5Jack Nut M5
-
7250100156 Weld Nut M4Weld Nut M4
-
8250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
9250200025 Washer M5Washer M5
-
10275500241 Black CapBlack Cap
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
13293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
14517305284 White RH HoodWhite RH Hood
-
14517305285 White LH HoodWhite LH Hood
-
16293830005 Rubber BumperRubber Bumper
-
17414644300 DartDart
-
18517124300 WasherWasher
-
19517302841 GrommetGrommet
-
21517303756 GrommetGrommet
-
22517304919 RH Panel LatchRH Panel Latch
-
22517303808 LH Panel LatchLH Panel Latch
-
24517304221 Latch SupportLatch Support
-
25517304518 Console NutConsole Nut
-
26517305011 Deep Black Center HoodDeep Black Center Hood
-
27517305557 White Rear ConsoleWhite Rear Console
-
29250000725 Screw M4 X 16Screw M4 X 16
-
30517305407 White LH PanelWhite LH Panel
-
30517305400 White RH PanelWhite RH Panel
-
31517304805 Deep Black LH Flashing PanelDeep Black LH Flashing Panel
-
31517305058 Deep Black RH Panel TrimDeep Black RH Panel Trim
-
32250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
33517304912 Upper Storage Access CoverUpper Storage Access Cover
-
34517304917 Cover LatchCover Latch
-
40860200928 Windshield 450mmWindshield 450mm
-
42517304928 RH Air DeflectorRH Air Deflector
-
42517304929 LH Air DeflectorLH Air Deflector
-
45517304970 Console SupportConsole Support
-
49860200944 SupportSupport
-
52517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
53517305762 HeadlampHeadlamp
-
54219400070 CapCap
-
57515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
55219800282 Holder BracketHolder Bracket
-
58219800281 SpringSpring
-
56517305061 Deep Black RH ConsoleDeep Black RH Console
-
59517305196 RH Upper Panel FoamRH Upper Panel Foam
-
59517305200 LH Upper Panel FoamLH Upper Panel Foam
-
60517305197 RH Center Panel FoamRH Center Panel Foam
-
60517305201 LH Center Panel FoamLH Center Panel Foam
-
61517305198 RH Lower Panel FoamRH Lower Panel Foam
-
61517305202 LH Lower Panel FoamLH Lower Panel Foam
-
62517305199 RH Rear Panel FoamRH Rear Panel Foam
-
62517305203 LH Rear Panel FoamLH Rear Panel Foam
-
64517305090 RH Rear Hood FoamRH Rear Hood Foam
-
64517305091 LH Rear Hood FoamLH Rear Hood Foam
-
65517305095 TrunkTrunk
-
66517305109 Rivet PlateRivet Plate
-
67250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
69517305137 RH Hood Filler PlateRH Hood Filler Plate
-
69517305138 LH Hood Filler PlateLH Hood Filler Plate
-
71517304935 RH Panel Vent GridRH Panel Vent Grid
-
72517305451 Heat ShieldHeat Shield
-
73517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
74517305148 Support Console CapSupport Console Cap
-
75517305157 Seal JointSeal Joint
-
76250000725 Screw M4 X 16Screw M4 X 16
-
83250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
84517305930 White LH CapWhite LH Cap
-
86517305279 Panel LatchPanel Latch
-
87517305290 LH ArmLH Arm
-
87517305293 RH ArmRH Arm
-
88517305291 LH DeflectorLH Deflector
-
88517305294 RH DeflectorRH Deflector
-
90250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
92517305296 BrideBride
-
94517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
96517305549 RH Front ConsoleRH Front Console
-
96517306022 Console-FrontConsole-Front
-
100517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
100517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
101517305723 RingRing
-
103517305731 BumperBumper
-
104517305734 PinPin
-
108517305791 FoamFoam
-
108517305799 FoamFoam
-
111517305794 FoamFoam
-
111517305800 FoamFoam
-
112517305795 FoamFoam
-
113517305796 Rubber SheetRubber Sheet
-
121250000721 Torx ScrewTorx Screw
-
125250100158 Push NutPush Nut
-
125732610072 Push Nut. For WindshieldPush Nut. For Windshield
