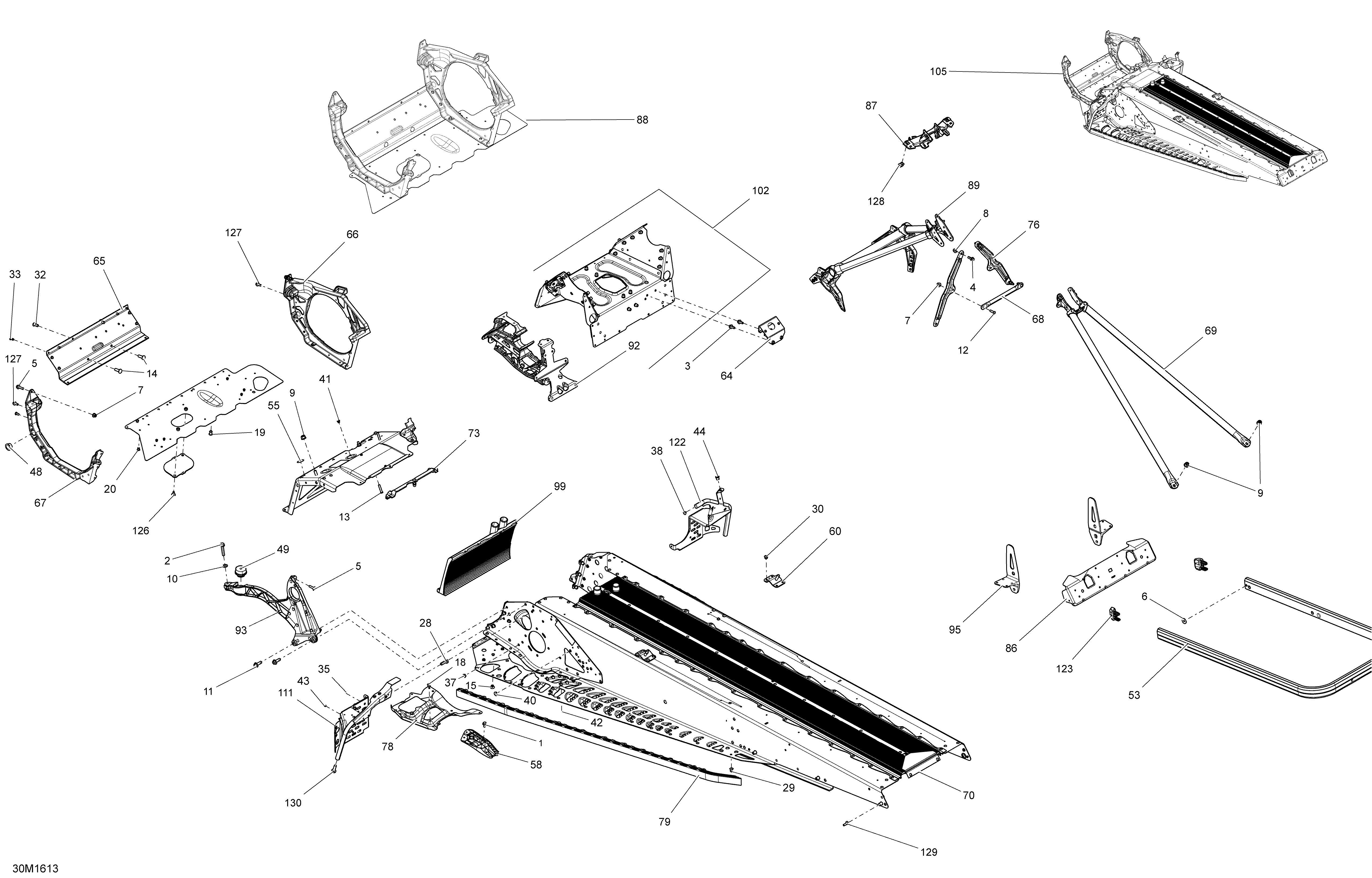

09- Frame для BRP Ski-Doo EXPEDITION - SPORT 4-STROKE - 2016
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6224061201 Flat WasherFlat Washer
-
7233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
8233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10234281474 Conical Spring Washer M8Conical Spring Washer M8
-
11250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
12250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
13250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
14250300038 Clinch StudClinch Stud
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
19293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
20293150144 Stavex RivetStavex Rivet
-
28293150146 Henrob RivetHenrob Rivet
-
29293150147 Hemlock RivetHemlock Rivet
-
30293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
32293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
33293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
35293450268 InsertInsert
-
37293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
38293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
40293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
41390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
42390909100 Avex RivetAvex Rivet
-
43390909200 Avex RivetAvex Rivet
-
44293450275 InsertInsert
-
48505073317 Leg CushionLeg Cushion
-
49512060295 Rubber MountRubber Mount
-
53518325579 Clear Rear BumperClear Rear Bumper
-
55518325560 Adhesive PatchAdhesive Patch
-
58518325782 RH DeflectorRH Deflector
-
58518325783 LH DeflectorLH Deflector
-
60518325973 RH Rear BaseRH Rear Base
-
60518325974 LH Rear BaseLH Rear Base
-
64518326178 Engine SupportEngine Support
-
65518326198 Front MemberFront Member
-
66518326328 RH Side MemberRH Side Member
-
67518326330 LH Side MemberLH Side Member
-
68518326355 Center Column SupportCenter Column Support
-
69518326559 Rear MemberRear Member
-
70518326692 Rear Radiator Ass'y, 154''Rear Radiator Ass'y, 154''
-
73518326656 SealSeal
-
76518326848 Upper Column SupportUpper Column Support
-
78518326937 RH ReinforcementRH Reinforcement
-
78518326938 LH ReinforcementLH Reinforcement
-
79518328098 RH RollerRH Roller
-
79518328099 LH RollerLH Roller
-
86518327105 Rear CapRear Cap
-
87518327145 Sub A SupportSub A Support
-
88518328078 'E'' Module'E'' Module
-
89518327565 Front MemberFront Member
-
92518327487 Front Suspension SupportFront Suspension Support
-
93518327535 Brace Ass'yBrace Ass'y
-
95518327605 RH Suspension BracketRH Suspension Bracket
-
95518327606 LH Suspension BracketLH Suspension Bracket
-
99518327907 Front Radiator Ass'yFront Radiator Ass'y
-
102518328320 Cross Member S ModuleCross Member S Module
-
105415129939 Frame Ass'y 154Frame Ass'y 154
-
111518328528 LH StirupLH Stirup
-
122518328942 RH StirupRH Stirup
-
123520000711 Full Moon RH CapFull Moon RH Cap
-
123520000712 Full Moon LH CapFull Moon LH Cap
-
126250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
127210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
128250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
129250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
130250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
