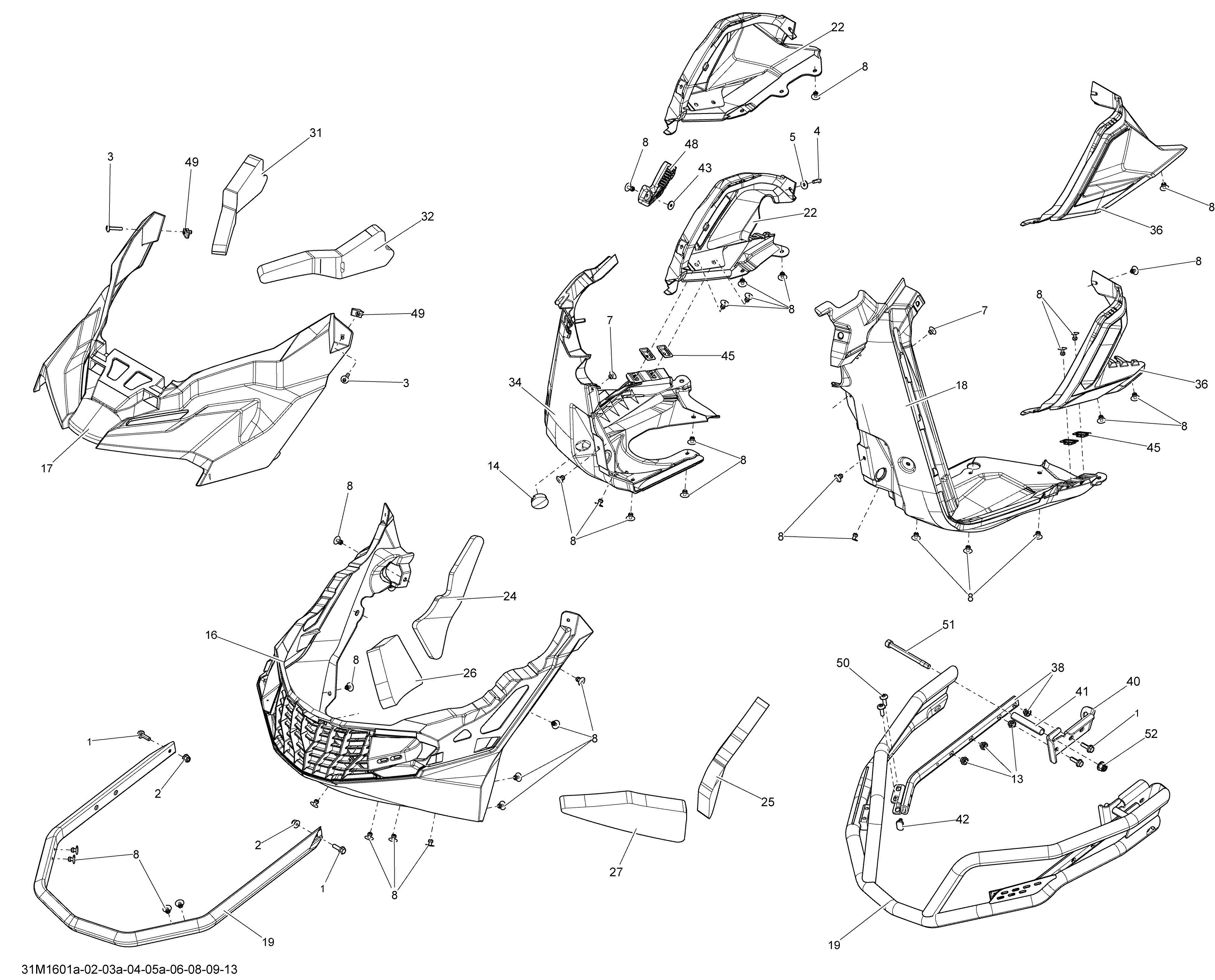

09- Bottom Pan для BRP Ski-Doo EXPEDITION - SPORT 4-STROKE - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
4250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
5250200025 Washer M5Washer M5
-
7293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
8293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293450232 InsertInsert
-
14414916600 Nylon CapNylon Cap
-
16502007172 Deep Black Front Bottom PanDeep Black Front Bottom Pan
-
17502007173 Deep Black Bottom Pan CapDeep Black Bottom Pan Cap
-
18502007175 Deep Black LH Bottom PanDeep Black LH Bottom Pan
-
19502007281 Black Front BumperBlack Front Bumper
-
22502007306 Deep Black RH Side Bottom Pan PanelDeep Black RH Side Bottom Pan Panel
-
24502007243 RH Bottom Pan Upper Foam. 600ACERH Bottom Pan Upper Foam. 600ACE
-
25502007244 LH Bottom Pan Upper Foam. 600ACELH Bottom Pan Upper Foam. 600ACE
-
26502007245 RH Bottom Pan Lower Foam. 600ACERH Bottom Pan Lower Foam. 600ACE
-
27502007246 LH Bottom Pan Lower Foam. 600ACELH Bottom Pan Lower Foam. 600ACE
-
31502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
32502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
34502007340 Deep Black RH Bottom PanDeep Black RH Bottom Pan
-
36502007304 Deep Black LH Side Bottom Pan PanelDeep Black LH Side Bottom Pan Panel
-
38502007493 TubeTube
-
40502007496 LH PlateLH Plate
-
41502007498 PipePipe
-
42502007499 CapCap
-
43517124300 WasherWasher
-
45517305109 Rivet PlateRivet Plate
-
48517305280 Stopper BumperStopper Bumper
-
49250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
50250000721 Torx ScrewTorx Screw
-
51250000833 Socket Screw M8 X 1.25Socket Screw M8 X 1.25
-
52233281464 Elastic Flange Nut M8Elastic Flange Nut M8
