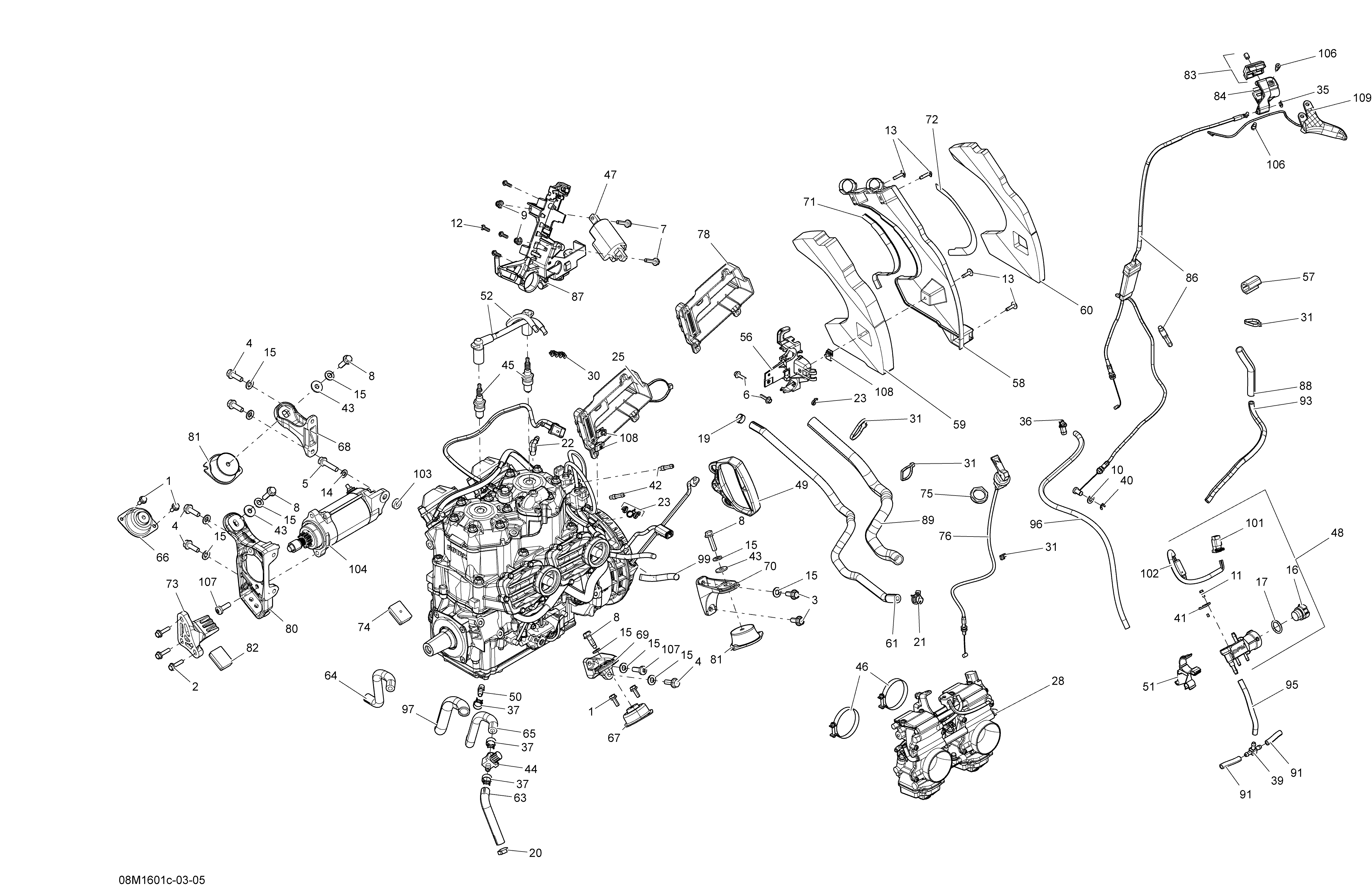

01- Engine - 600 CARB для BRP Ski-Doo MXZ 600 CARB - 2016
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
6207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
7207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
8207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
11241140060 Screw K40 X 10Screw K40 X 10
-
12241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
13250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
14250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
15250200146 Conical Spring Washer M8Conical Spring Washer M8
-
16270600009 CapCap
-
17293300042 O-RingO-Ring
-
19293650046 Oetiker ClampOetiker Clamp
-
20293650125 Oetiker ClampOetiker Clamp
-
21293650214 Norma Spring ClampNorma Spring Clamp
-
22293700045 Elbow Fitting 90°Elbow Fitting 90°
-
23293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
28403138815 Carburetor Kit, TM40-B418Carburetor Kit, TM40-B418
-
30410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35414274500 CirclipCirclip
-
36414580700 Male ConnectorMale Connector
-
37414655700 Spring ClampSpring Clamp
-
39572045500 T-FittingT-Fitting
-
40414753500 CirclipCirclip
-
41415061600 Solenoid LockSolenoid Lock
-
42420924724 Hose NippleHose Nipple
-
43503183200 Washer, YellowWasher, Yellow
-
44512059324 Valve 5/16''Valve 5/16''
-
45415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
46512059835 Gemi ClampGemi Clamp
-
47512059968 Ignition CoilIgnition Coil
-
48512060002 Pressure Manifold Ass'yPressure Manifold Ass'y
-
49512060136 Starter GripStarter Grip
-
50512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
51512060229 DPM SupportDPM Support
-
52512060291 CableCable
-
56512060298 Solenoid SupportSolenoid Support
-
57512060313 ProtectorProtector
-
58512060338 Noise ShieldNoise Shield
-
59512060341 Inner Noise FoamInner Noise Foam
-
60512060342 Outer Noise FoamOuter Noise Foam
-
61512060347 Hose FormedHose Formed
-
63512060353 Hose FormedHose Formed
-
64512060355 Hose FormedHose Formed
-
65512060357 Hose Formed Engine OutletHose Formed Engine Outlet
-
66512060387 Rubber MountRubber Mount
-
67512060448 Rubber MountRubber Mount
-
68512060469 Front Support, MAGFront Support, MAG
-
69512060478 Rear Support, PTORear Support, PTO
-
70512060559 Rear Support, MAGRear Support, MAG
-
71512060574 Heat ShieldHeat Shield
-
72512060575 Heat ShieldHeat Shield
-
73512060576 Stopper SupportStopper Support
-
74512060627 StopperStopper
-
75512060671 Plastic NutPlastic Nut
-
76512060672 Choke CableChoke Cable
-
78512060680 Calibrated Module, 600Calibrated Module, 600
-
80512060699 Front Support, PTOFront Support, PTO
-
81512060729 Rubber MountRubber Mount
-
82512060766 StopperStopper
-
83512060859 Upper HousingUpper Housing
-
84512060860 Lower HousingLower Housing
-
86512060886 Throttle CableThrottle Cable
-
87512060924 Coils SupportCoils Support
-
88415079900 Tubing 10 mmTubing 10 mm
-
89415080000 Tubing 16 mmTubing 16 mm
-
91415080200 Hose, PolyurethaneHose, Polyurethane
-
93515175442 Tubing 6 mmTubing 6 mm
-
95415080200 Hose, PolyurethaneHose, Polyurethane
-
96415080200 Hose, PolyurethaneHose, Polyurethane
-
97415080000 Tubing 16 mmTubing 16 mm
-
99415079900 Tubing 10 mmTubing 10 mm
-
101515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
101515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
101515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
102515175701 Pressure Manifold HarnessPressure Manifold Harness
-
103515176500 WasherWasher
-
104515177389 StarterStarter
-
106732601143 Flanged ScrewFlanged Screw
-
107250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
108250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
109512061049 Throttle Handle Ass'yThrottle Handle Ass'y
