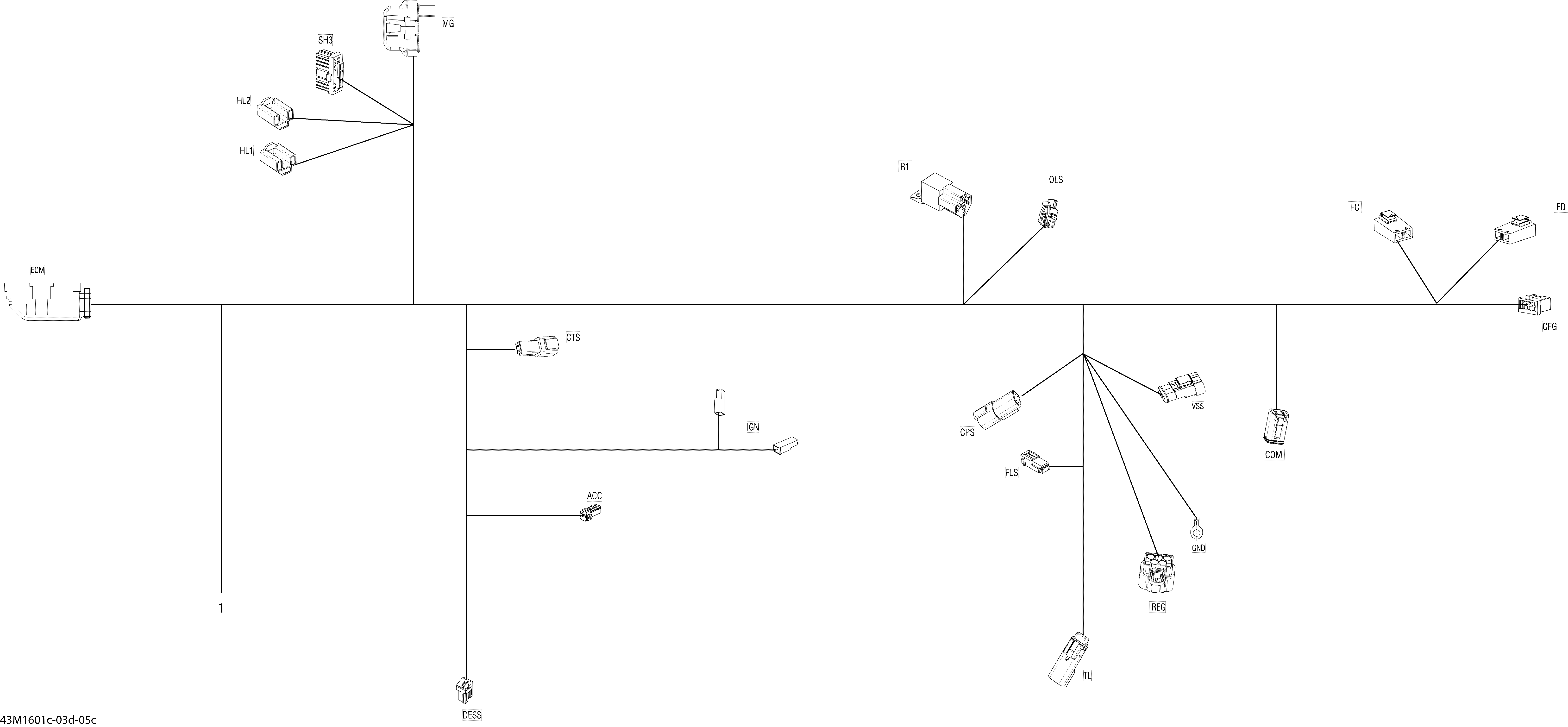

10- Electrical Harness - 600 CARB для BRP Ski-Doo MXZ 600 CARB - 2016
-
№АртикулНазвание
-
1515177980 Main Harness. Includes 1 To VSSMain Harness. Includes 1 To VSS
-
ACC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ACC515175231 Female TerminalFemale Terminal
-
CFG515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
CFG515175231 Female TerminalFemale Terminal
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM278000632 Female TerminalFemale Terminal
-
COM278001665 Female TerminalFemale Terminal
-
CPS278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
CPS278000636 Female Wedge, 4 CircuitsFemale Wedge, 4 Circuits
-
CPS278000631 Male TerminalMale Terminal
-
CTS409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
CTS409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CTS278000631 Male TerminalMale Terminal
-
DESS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DESS515175231 Female TerminalFemale Terminal
-
ECM515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
ECM515176224 Terminal SupportTerminal Support
-
ECM515175812 PlugPlug
-
ECM515176221 Female HousingFemale Housing
-
ECM515176485 Protection CapProtection Cap
-
ECM515176222 Wire SealWire Seal
-
ECM515175806 Female TerminalFemale Terminal
-
ECM710001131 Female TerminalFemale Terminal
-
FC710000992 ClipClip
-
FC409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
FC409004000 Fuse HolderFuse Holder
-
FC409004200 Female TerminalFemale Terminal
-
FD710000992 ClipClip
-
FD278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
FD409004000 Fuse HolderFuse Holder
-
FD409004200 Female TerminalFemale Terminal
-
FLS515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
FLS515175232 Male TerminalMale Terminal
-
GND278000992 Open BarrelOpen Barrel
-
HL1515177663 Female HousingFemale Housing
-
HL1515176909 TerminalTerminal
-
HL2515177663 Female HousingFemale Housing
-
HL2515176909 TerminalTerminal
-
IGN409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
IGN409010100 Female TerminalFemale Terminal
-
MG515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
MG515175802 Retainer BlockRetainer Block
-
MG515175812 PlugPlug
-
MG710000399 Female HousingFemale Housing
-
MG515175803 Wire SealWire Seal
-
MG710001131 Female TerminalFemale Terminal
-
OLS515177192 Female HousingFemale Housing
-
OLS710001163 Wire SealWire Seal
-
OLS710001164 Female TerminalFemale Terminal
-
R1409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
R1515177041 RelayRelay
-
R1561503100 Female TerminalFemale Terminal
-
R1561503100 Female TerminalFemale Terminal
-
REG515176530 ConnectorConnector
-
REG515176594 SealSeal
-
REG515176531 TerminalTerminal
-
SH3515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
SH3515175231 Female TerminalFemale Terminal
-
SH3515175282 Female TerminalFemale Terminal
-
TL515178023 HousingHousing
-
TL515178013 Male TerminalMale Terminal
-
VSS710000992 ClipClip
-
VSS710000568 HousingHousing
-
VSS515176621 Wire SealWire Seal
-
VSS515176164 Male TerminalMale Terminal
