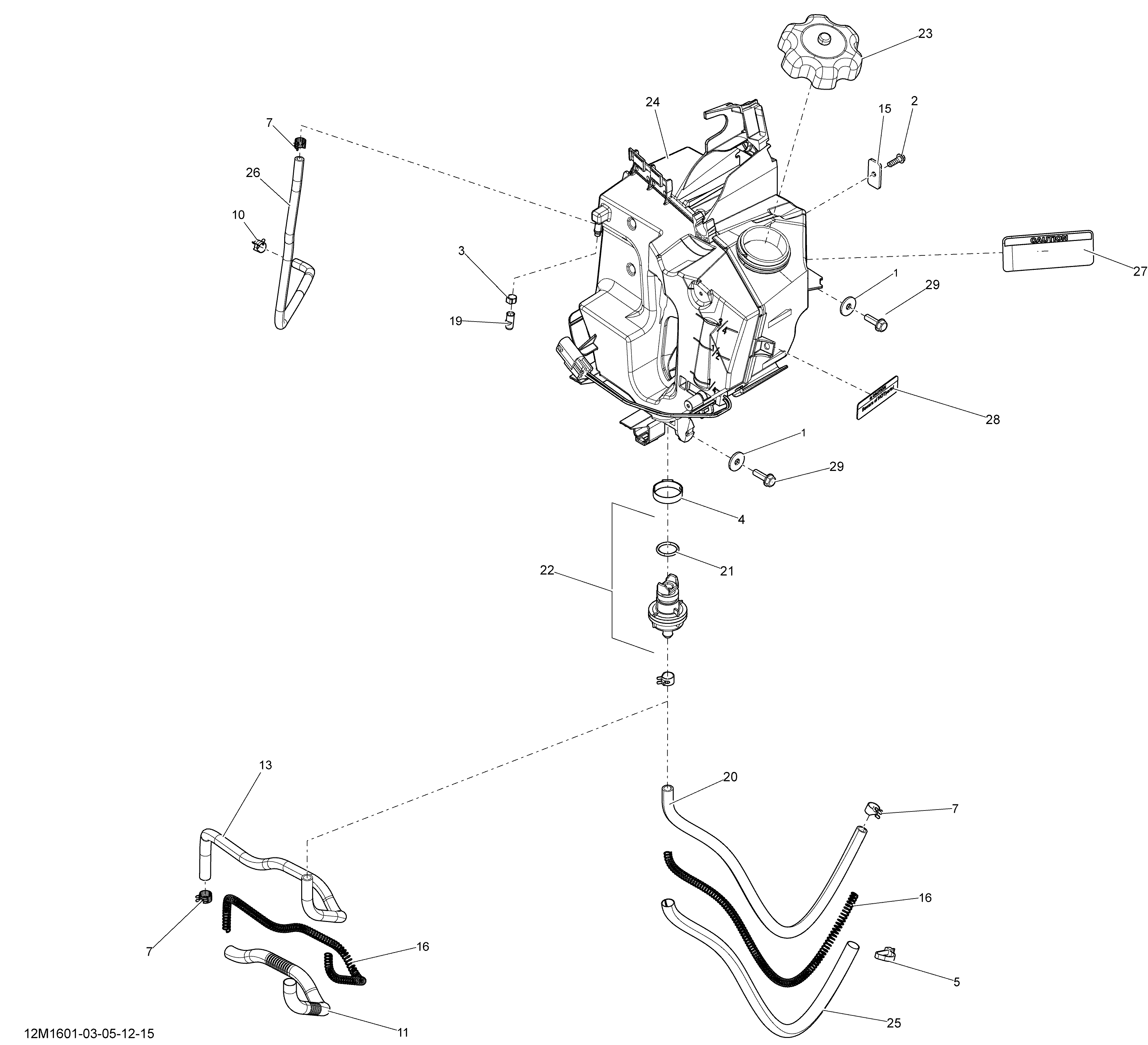

02- Oil System - 600 CARB для BRP Ski-Doo MXZ 600 CARB - 2016
-
№АртикулНазвание
-
1224061201 Flat WasherFlat Washer
-
2241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
3293650043 Oetiker Gear ClampOetiker Gear Clamp
-
4293650099 Crimp ClampCrimp Clamp
-
5414415200 Spring ClampSpring Clamp
-
7414420700 Spring ClampSpring Clamp
-
10414554800 Spring ClampSpring Clamp
-
11415079900 Tubing 10 mmTubing 10 mm
-
13415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
15519000179 BracketBracket
-
16519000196 SpringSpring
-
19519000216 CapCap
-
20519000230 HoseHose
-
21519000242 Oil FilterOil Filter
-
22519000242 Oil FilterOil Filter
-
23519000273 CapCap
-
24519000312 Oil TankOil Tank
-
25710001437 Protector TubeProtector Tube
-
26415080200 Hose, PolyurethaneHose, Polyurethane
-
27516007443 Warning DecalWarning Decal
-
28516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
29250000768 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
